SPECpower_ssj2008
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL360 Gen10 | SPECpower_ssj2008 = 11,550 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 23, 2017 |
| Hardware Availability: | Oct-2017 | Software Availability: | Apr-2015 | Publication: | Nov 8, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

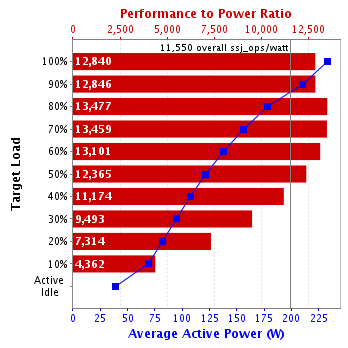

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 2,989,485 | 233 | 12,840 |
| 90% | 89.9% | 2,697,150 | 210 | 12,846 |
| 80% | 79.9% | 2,396,373 | 178 | 13,477 |
| 70% | 70.1% | 2,102,394 | 156 | 13,459 |
| 60% | 60.2% | 1,805,969 | 138 | 13,101 |
| 50% | 50.1% | 1,502,207 | 121 | 12,365 |
| 40% | 40.0% | 1,200,757 | 107 | 11,174 |
| 30% | 29.9% | 898,385 | 94.6 | 9,493 |
| 20% | 20.0% | 601,396 | 82.2 | 7,314 |
| 10% | 10.0% | 300,555 | 68.9 | 4,362 |
| Active Idle | 0 | 38.7 | 0 | |
| ∑ssj_ops / ∑power = | 11,550 | |||
| Set Identifier: | SUT |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | SUT |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett Packard Enterprise |
| Model: | ProLiant DL360 Gen10 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon Platinum 8180 2.50GHz |
| CPU Characteristics: | 28-Core, 2.50 GHz, 38.5MB L3 Cache |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 28 cores, 1 chip, 28 cores/chip |
| Hardware Threads: | 56 (2 / core) |
| CPU(s) Orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| Tertiary Cache: | 39424 KB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 48 |
| # and size of DIMM: | 6 x 8182 MB |
| Memory Details: | 6 x 8GB 2Rx8 PC4-2666V-RE1-12 Samsung; slots 1, 3, 5, 8, 10, and 12 populated |
| Power Supply Quantity and Rating (W): | 1 x 800 |
| Power Supply Details: | DPS-800AB (865438-B21) 96% |
| Disk Drive: | 1 x HPE Dual 150GB SATA RI uFF M.2 SSSD (880875-B21) |
| Disk Controller: | 1 x HPE Smart Array S100i SR Gen10 |
| # and type of Network Interface Cards (NICs) Installed: | 1 x HPE Ethernet 1Gb 2-port 332T Adapter (615732-B21) |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Windows Server 2012 R2 Datacenter |
| OS Version: | Version 6.3 (Build 9600) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
| JVM Command-line Options: | -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
| JVM Affinity: | start /NODE [0,1] /AFFINITY [0xFFFFFFF] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 21000 |
| JVM Maximum Heap (MB): | 21000 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | U32 v1.22 (09/29/2017) |
| Management Firmware Version: | 1.15 Aug 03 2017 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett Packard Enterprise |
| Model: | ProLiant DL360 Gen9 |
| CPU Description: | 2 x Intel Xeon E5-2660 v3 |
| Memory amount (GB): | 128 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2012 R2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | 1.8.0_144-b01 (build 25.144-b01, mixed mode) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310E |
| Serial Number: | C2QM22001V |
| Connectivity: | Yokogawa USB |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Transcat |
| Calibration Label: | 5-D40W6-20-1 |
| Date of Calibration: | 21-Jun-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 233 | 21.6 |
| 90% | 210 | 21.6 |
| 80% | 178 | 21.6 |
| 70% | 156 | 21.6 |
| 60% | 138 | 21.5 |
| 50% | 121 | 21.5 |
| 40% | 107 | 21.5 |
| 30% | 94.6 | 21.5 |
| 20% | 82.2 | 21.4 |
| 10% | 68.9 | 21.5 |
| Active Idle | 38.7 | 21.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 21.4 | 132 |

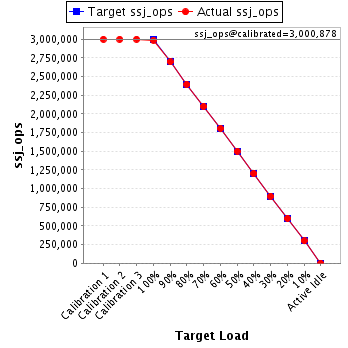

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 3,000,688 | ||
| Calibration 2 | 3,000,282 | ||
| Calibration 3 | 3,001,474 | ||
| ssj_ops@calibrated=3,000,878 | |||
| 100% | 99.6% | 3,000,878 | 2,989,485 |
| 90% | 89.9% | 2,700,790 | 2,697,150 |
| 80% | 79.9% | 2,400,702 | 2,396,373 |
| 70% | 70.1% | 2,100,615 | 2,102,394 |
| 60% | 60.2% | 1,800,527 | 1,805,969 |
| 50% | 50.1% | 1,500,439 | 1,502,207 |
| 40% | 40.0% | 1,200,351 | 1,200,757 |
| 30% | 29.9% | 900,263 | 898,385 |
| 20% | 20.0% | 600,176 | 601,396 |
| 10% | 10.0% | 300,088 | 300,555 |
| Active Idle | 0 | 0 | |
