Lenovo Global Technology ThinkSystem SR650 SPECpower_ssj2008 = 11,406 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: Sep 18, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 183 20.5
Calibration 2 183 20.4
Calibration 3 183 20.2
100% 183 20.2
90% 163 20.1
80% 144 20.1
70% 129 20.2
60% 117 20.4
50% 106 20.6
40% 97.4 20.8
30% 88.8 20.7
20% 79.8 20.7
10% 70.3 20.8
Active Idle 45.6 20.8

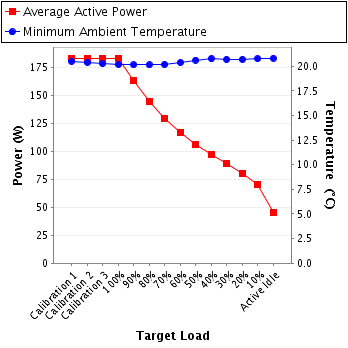

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa, Inc.
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 17-07-BAC-121-03
Date of Calibration: 9-Jul-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 56 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 0.878 1.0 0.983 183 0.4%
Calibration 2 212 300.0 0.877 1.0 0.983 183 0.4%
Calibration 3 212 300.0 0.880 1.0 0.983 183 0.4%
100% 212 300.0 0.879 1.0 0.983 183 0.4%
90% 212 300.0 0.788 1.0 0.978 163 0.4%
80% 212 300.0 0.702 1.0 0.971 144 0.4%
70% 212 300.0 0.632 1.0 0.964 129 0.4%
60% 212 300.0 0.576 1.0 0.960 117 0.5%
50% 212 300.0 0.528 1.0 0.952 106 0.5%
40% 212 300.0 0.488 1.0 0.943 97.4 0.5%
30% 212 300.0 0.449 0.5 0.935 88.8 0.4%
20% 212 300.0 0.408 0.5 0.925 79.8 0.4%
10% 212 300.0 0.408 0.5 0.814 70.3 0.5%
Active Idle 212 300.0 0.297 0.5 0.725 45.6 0.7%

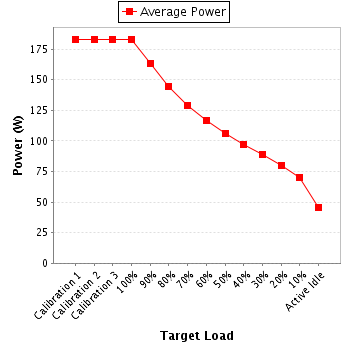

Power details for pwr1
