Lenovo Global Technology ThinkSystem SR850 | SPECpower_ssj2008 = 13,010 overall ssj_ops/watt | ||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Taipei, Taiwan | Test Date: | Sep 26, 2017 |
Hardware Availability: | Aug-2017 | Software Availability: | Sep-2017 | Publication: | Oct 25, 2017 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

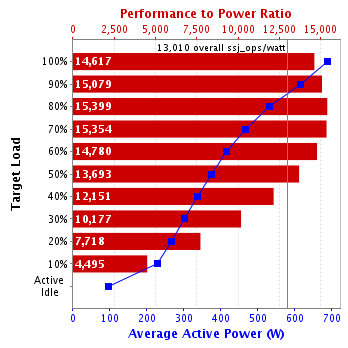

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 98.2% | 10,052,756 | 688 | 14,617 |
90% | 90.5% | 9,263,423 | 614 | 15,079 |
80% | 80.0% | 8,194,534 | 532 | 15,399 |
70% | 70.0% | 7,163,627 | 467 | 15,354 |
60% | 60.0% | 6,146,537 | 416 | 14,780 |
50% | 50.0% | 5,119,675 | 374 | 13,693 |
40% | 40.0% | 4,096,209 | 337 | 12,151 |
30% | 29.9% | 3,065,282 | 301 | 10,177 |
20% | 20.0% | 2,051,162 | 266 | 7,718 |
10% | 10.0% | 1,022,957 | 228 | 4,495 |
Active Idle | 0 | 95.8 | 0 | |
∑ssj_ops / ∑power = | 13,010 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | The machine type of the SUT is 7X19. |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | ThinkSystem SR850 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8176 CPU 2.10 GHz (Intel Turbo Boost Technology up to 2.80 GHz) |
CPU Characteristics: | 28 core, 2.10GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2100 |
CPU(s) Enabled: | 112 cores, 4 chips, 28 cores/chip |
Hardware Threads: | 224 (2 / core) |
CPU(s) Orderable: | 1,2,3,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16384 MB |
Memory Details: | 24 x 16GB 2Rx8 PC4-2666V-R; Slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, and 48 populated. |
Power Supply Quantity and Rating (W): | 1 x 1100 |
Power Supply Details: | Lenovo P/N:7N67A00885 |
Disk Drive: | 1 x 32 GB M.2 SSD (Lenovo P/N: 7N47A00129) |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x ThinkSystem 1Gb 2-Port RJ45 LOM (Lenovo P/N: 7ZT7A00544) |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Lenovo Power Plan V1.0 for Windows Server 2012 R2 in OS |
Operating System (OS): | Microsoft Windows Server 2012 R2 Standard |
OS Version: | Version 6.3.9600 Build 9600 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /NODE [0,2,4,6] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]; start /NODE [1,3,5,7] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, 30000000000, C0000000000, 300000000000, C00000000000] |
JVM Instances: | 112 |
JVM Initial Heap (MB): | 1550 |
JVM Maximum Heap (MB): | 1550 |
JVM Address Bits: | 64 |
Boot Firmware Version: | TEE113Z |
Management Firmware Version: | TEI307L |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | None |
Hardware | |
---|---|
Hardware Vendor: | IBM Corporation |
Model: | IBM System x iDataPlex dx320 Server |
CPU Description: | Intel Xeon CPU L5420 |
Memory amount (GB): | 24 |
Software | |
---|---|
Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise Edition |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build pwa6460sr5-20090529_04(SR5)) |
CCS Version: | 1.2.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa, Inc. |
Model: | WT210 |
Serial Number: | 91H245649 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NML/ROC |
Accredited by: | ETC, Taiwan |
Calibration Label: | 17-07-BAC-121-03 |
Date of Calibration: | 9-Jul-2017 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International |
Model: | Watchport/H |
Driver Version: | 4.20.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 1 cm in front of SUT main intake |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 688 | 22.9 |
90% | 614 | 22.9 |
80% | 532 | 22.9 |
70% | 467 | 23.0 |
60% | 416 | 23.0 |
50% | 374 | 23.0 |
40% | 337 | 23.0 |
30% | 301 | 22.9 |
20% | 266 | 22.9 |
10% | 228 | 22.9 |
Active Idle | 95.8 | 22.8 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
208V / 60 Hz / 1 phase / 2 wires | 22.8 | 63 |

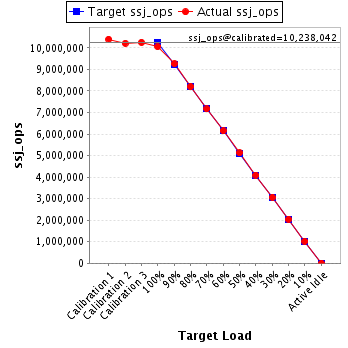

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 10,404,685 | ||
Calibration 2 | 10,217,026 | ||
Calibration 3 | 10,259,059 | ||
ssj_ops@calibrated=10,238,042 | |||
100% | 98.2% | 10,238,042 | 10,052,756 |
90% | 90.5% | 9,214,238 | 9,263,423 |
80% | 80.0% | 8,190,434 | 8,194,534 |
70% | 70.0% | 7,166,629 | 7,163,627 |
60% | 60.0% | 6,142,825 | 6,146,537 |
50% | 50.0% | 5,119,021 | 5,119,675 |
40% | 40.0% | 4,095,217 | 4,096,209 |
30% | 29.9% | 3,071,413 | 3,065,282 |
20% | 20.0% | 2,047,608 | 2,051,162 |
10% | 10.0% | 1,023,804 | 1,022,957 |
Active Idle | 0 | 0 |
