SPECpower_ssj2008 Host 'WIN-MI8AABQEJGE' Performance Report

SPECpower_ssj2008

Host 'WIN-MI8AABQEJGE' Performance Report

Hewlett Packard Enterprise ProLiant DL580 Gen10			ssj_ops@100% = 11,580,444 ssj_ops@100% per JVM = 1,447,556
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Oct 10, 2017
Hardware Availability:	Oct-2017	Software Availability:	Apr-2015	Publication:	Oct 25, 2017
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,607,431
Calibration 2			11,610,920
Calibration 3			11,611,068
ssj_ops@calibrated=11,610,994
100%	99.7%	11,610,994	11,580,444
90%	90.0%	10,449,894	10,454,653
80%	79.9%	9,288,795	9,277,397
70%	70.0%	8,127,696	8,130,439
60%	60.0%	6,966,596	6,963,734
50%	50.0%	5,805,497	5,802,551
40%	40.0%	4,644,397	4,642,231
30%	30.0%	3,483,298	3,479,060
20%	20.0%	2,322,199	2,321,558
10%	10.0%	1,161,099	1,161,738
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL580 Gen10
Form Factor:	4U
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,4 chips
Primary Cache:	32 KB I+D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	24 x 8192 MB
Memory Details:	24 x 8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated in each socket
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	HSTNS-PR62 (830272-B21)
Disk Drive:	1 X HPE 150GB SATA 6G M.2 SSD (875317-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE FlexFabric 10Gb 2-port 535FLR-T Adapter (817722-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-Xmx22g -Xms22g -Xmn20g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [FFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	22000
JVM Maximum Heap (MB):	22000
JVM Address Bits:	64
Boot Firmware Version:	U34 v1.22 09/29/2017
Management Firmware Version:	1.15 Aug 03 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Performance Monitoring Support: Disabled
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #2: Disabled
Redundant Power Supply Mode: High Efficiency Mode (Auto)
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark started via PSExec
SPECpower_ssj.props input.load_level.number_warehouses set to 224 to detect the full number of available processors on the SUT
Windows Power Options = Balanced

Turn off Display = 1 Minute
Turn off hard disk = 1 Minute

Notes

None

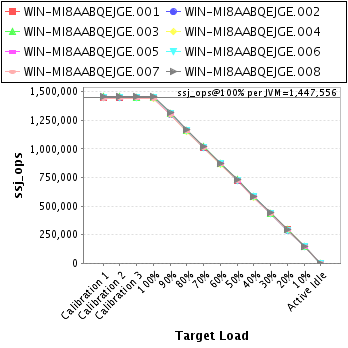

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-MI8AABQEJGE.001	1,448,636
WIN-MI8AABQEJGE.002	1,447,489
WIN-MI8AABQEJGE.003	1,450,817
WIN-MI8AABQEJGE.004	1,445,635
WIN-MI8AABQEJGE.005	1,444,604
WIN-MI8AABQEJGE.006	1,447,186
WIN-MI8AABQEJGE.007	1,438,718
WIN-MI8AABQEJGE.008	1,457,359
ssj_ops@100%	11,580,444
ssj_ops@100% per JVM	1,447,556

JVM 'WIN-MI8AABQEJGE.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,451,146
Calibration 2			1,452,590
Calibration 3			1,451,369
ssj_ops@calibrated=1,451,979
100%	99.8%	1,451,979	1,448,636
90%	90.0%	1,306,782	1,306,671
80%	80.1%	1,161,584	1,162,781
70%	70.0%	1,016,386	1,015,792
60%	59.9%	871,188	870,446
50%	50.1%	725,990	726,951
40%	40.1%	580,792	581,561
30%	29.9%	435,594	433,781
20%	20.2%	290,396	292,901
10%	10.0%	145,198	145,576
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-MI8AABQEJGE.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,451,122
Calibration 2			1,450,349
Calibration 3			1,453,188
ssj_ops@calibrated=1,451,768
100%	99.7%	1,451,768	1,447,489
90%	89.9%	1,306,592	1,305,052
80%	79.9%	1,161,415	1,159,667
70%	70.0%	1,016,238	1,015,975
60%	60.0%	871,061	870,878
50%	50.1%	725,884	727,867
40%	40.0%	580,707	580,281
30%	30.0%	435,531	434,830
20%	19.9%	290,354	288,959
10%	10.0%	145,177	145,099
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

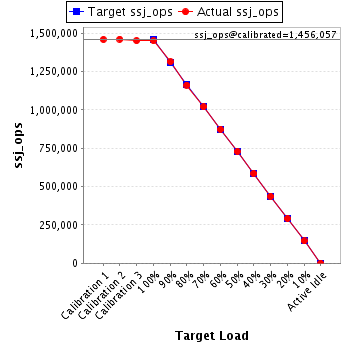

JVM 'WIN-MI8AABQEJGE.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,458,777
Calibration 2			1,461,026
Calibration 3			1,451,088
ssj_ops@calibrated=1,456,057
100%	99.6%	1,456,057	1,450,817
90%	90.2%	1,310,451	1,314,065
80%	79.8%	1,164,845	1,161,940
70%	70.0%	1,019,240	1,019,882
60%	60.0%	873,634	873,464
50%	50.0%	728,028	728,660
40%	40.1%	582,423	584,366
30%	30.0%	436,817	436,848
20%	20.0%	291,211	291,195
10%	10.0%	145,606	145,367
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-MI8AABQEJGE.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,450,227
Calibration 2			1,447,905
Calibration 3			1,449,319
ssj_ops@calibrated=1,448,612
100%	99.8%	1,448,612	1,445,635
90%	90.0%	1,303,751	1,303,210
80%	79.7%	1,158,890	1,154,202
70%	70.2%	1,014,029	1,016,809
60%	59.7%	869,167	864,669
50%	49.9%	724,306	723,104
40%	39.9%	579,445	578,374
30%	29.9%	434,584	432,634
20%	19.9%	289,722	288,318
10%	10.0%	144,861	144,917
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-MI8AABQEJGE.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,449,170
Calibration 2			1,447,611
Calibration 3			1,449,059
ssj_ops@calibrated=1,448,335
100%	99.7%	1,448,335	1,444,604
90%	90.0%	1,303,502	1,303,552
80%	79.9%	1,158,668	1,157,707
70%	69.9%	1,013,835	1,012,878
60%	60.1%	869,001	870,306
50%	49.9%	724,168	722,523
40%	39.9%	579,334	577,811
30%	30.1%	434,501	435,532
20%	20.0%	289,667	289,637
10%	10.0%	144,834	145,093
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-MI8AABQEJGE.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,447,691
Calibration 2			1,449,695
Calibration 3			1,452,725
ssj_ops@calibrated=1,451,210
100%	99.7%	1,451,210	1,447,186
90%	90.1%	1,306,089	1,307,901
80%	80.0%	1,160,968	1,160,840
70%	70.0%	1,015,847	1,015,932
60%	60.0%	870,726	870,060
50%	49.8%	725,605	723,012
40%	40.0%	580,484	581,058
30%	29.9%	435,363	433,791
20%	20.0%	290,242	290,020
10%	10.1%	145,121	145,919
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

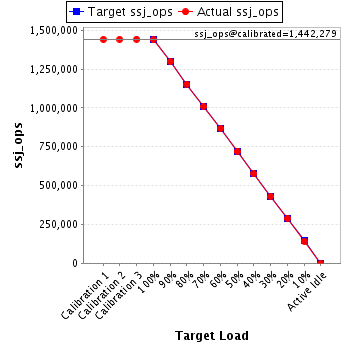

JVM 'WIN-MI8AABQEJGE.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,440,989
Calibration 2			1,441,596
Calibration 3			1,442,962
ssj_ops@calibrated=1,442,279
100%	99.8%	1,442,279	1,438,718
90%	90.1%	1,298,051	1,299,471
80%	80.0%	1,153,823	1,153,504
70%	70.1%	1,009,595	1,010,390
60%	60.2%	865,367	867,617
50%	49.9%	721,140	720,301
40%	39.9%	576,912	575,579
30%	29.9%	432,684	431,113
20%	20.0%	288,456	288,706
10%	9.9%	144,228	142,578
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

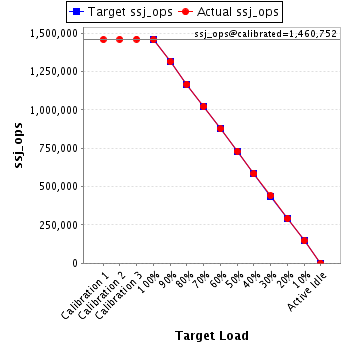

JVM 'WIN-MI8AABQEJGE.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,458,310
Calibration 2			1,460,149
Calibration 3			1,461,356
ssj_ops@calibrated=1,460,752
100%	99.8%	1,460,752	1,457,359
90%	90.0%	1,314,677	1,314,730
80%	79.9%	1,168,602	1,166,756
70%	70.0%	1,022,527	1,022,781
60%	60.0%	876,451	876,294
50%	50.0%	730,376	730,133
40%	39.9%	584,301	583,202
30%	30.2%	438,226	440,532
20%	20.0%	292,150	291,822
10%	10.1%	146,075	147,189
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
