SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL580 Gen10 | SPECpower_ssj2008 = 11,424 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 10, 2017 |
| Hardware Availability: | Oct-2017 | Software Availability: | Apr-2015 | Publication: | Oct 25, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

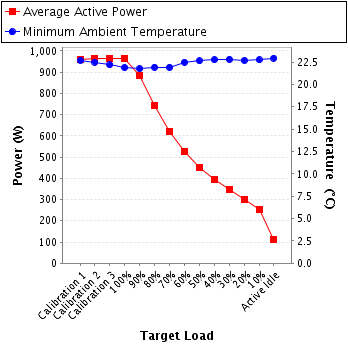

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 958 | 22.7 |
| Calibration 2 | 966 | 22.5 |
| Calibration 3 | 965 | 22.2 |
| 100% | 963 | 21.9 |
| 90% | 882 | 21.8 |
| 80% | 744 | 21.9 |
| 70% | 618 | 21.9 |
| 60% | 527 | 22.5 |
| 50% | 451 | 22.6 |
| 40% | 394 | 22.8 |
| 30% | 346 | 22.8 |
| 20% | 299 | 22.7 |
| 10% | 251 | 22.8 |
| Active Idle | 110 | 22.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22004V |
| Connectivity: | Yokogawa USB |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-D38YR-160-1 |
| Date of Calibration: | 21-Jun-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

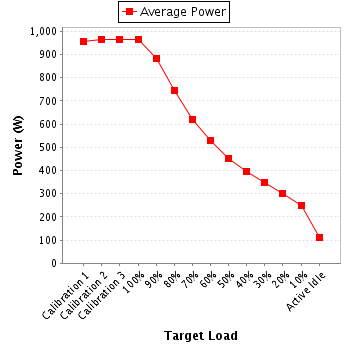

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 214 | 300.0 | 4.52 | 5.0 | 0.992 | 958 | 0.3% |
| Calibration 2 | 213 | 300.0 | 4.56 | 5.0 | 0.993 | 966 | 0.3% |
| Calibration 3 | 213 | 300.0 | 4.56 | 5.0 | 0.992 | 965 | 0.3% |
| 100% | 213 | 300.0 | 4.54 | 5.0 | 0.992 | 963 | 0.3% |
| 90% | 214 | 300.0 | 4.16 | 5.0 | 0.991 | 882 | 0.3% |
| 80% | 214 | 300.0 | 3.52 | 5.0 | 0.988 | 744 | 0.3% |
| 70% | 214 | 300.0 | 2.94 | 5.0 | 0.984 | 618 | 0.4% |
| 60% | 214 | 300.0 | 2.51 | 5.0 | 0.980 | 527 | 0.4% |
| 50% | 214 | 300.0 | 2.16 | 5.0 | 0.975 | 451 | 0.5% |
| 40% | 214 | 300.0 | 1.89 | 5.0 | 0.976 | 394 | 0.5% |
| 30% | 214 | 300.0 | 1.67 | 5.0 | 0.970 | 346 | 0.6% |
| 20% | 214 | 300.0 | 1.45 | 2.0 | 0.962 | 299 | 0.4% |
| 10% | 214 | 300.0 | 1.23 | 2.0 | 0.950 | 251 | 0.4% |
| Active Idle | 215 | 300.0 | 0.632 | 1.0 | 0.816 | 110 | 0.5% |
