SPECpower_ssj2008 Host 'WIN-3JGUKDAIHE0' Performance Report

SPECpower_ssj2008

Host 'WIN-3JGUKDAIHE0' Performance Report

Hewlett Packard Enterprise ProLiant DL560 Gen10			ssj_ops@100% = 11,725,627 ssj_ops@100% per JVM = 1,465,703
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Oct 10, 2017
Hardware Availability:	Oct-2017	Software Availability:	Apr-2015	Publication:	Oct 25, 2017
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,752,804
Calibration 2			11,759,174
Calibration 3			11,757,292
ssj_ops@calibrated=11,758,233
100%	99.7%	11,758,233	11,725,627
90%	90.0%	10,582,409	10,580,169
80%	80.0%	9,406,586	9,411,437
70%	70.1%	8,230,763	8,241,170
60%	60.0%	7,054,940	7,056,523
50%	50.0%	5,879,116	5,876,594
40%	40.1%	4,703,293	4,709,344
30%	30.0%	3,527,470	3,527,435
20%	20.0%	2,351,647	2,352,157
10%	10.0%	1,175,823	1,173,811
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL560 Gen10
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	24 x 8192 MB
Memory Details:	24 x 8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated in each socket
Power Supply Quantity and Rating (W):	2 x 800
Power Supply Details:	HPE DPS-800AB-35 A 96% (865438-B21)
Disk Drive:	1 x HPE 240GB SATA 6G M.2 2280 SSD (875488-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Ethernet 1Gb 2-port 332T Adapter (615732-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [FFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	U34 v1.22 09/29/2017
Management Firmware Version:	1.15 Aug 03 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Performance Monitoring Support: Disabled
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
HPE Ethernet 1Gb 4-port 331FLR Adapter: Disabled
Embedded SATA Controller #1: Disabled
Redundant Power Supply Mode: Balanced
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark started via PSExec
SPECpower_ssj.props input.load_level.number_warehouses set to 224 to detect the full number of available processors on the SUT
Windows Power Options = Balanced

Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive

Processor power management: Minimum Processor State = 0%

Notes

None

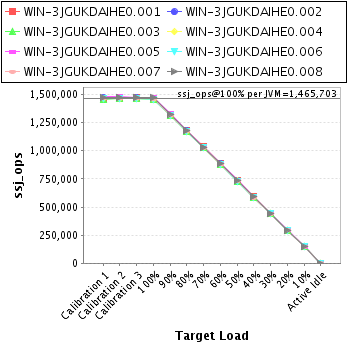

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-3JGUKDAIHE0.001	1,467,520
WIN-3JGUKDAIHE0.002	1,468,079
WIN-3JGUKDAIHE0.003	1,459,249
WIN-3JGUKDAIHE0.004	1,460,662
WIN-3JGUKDAIHE0.005	1,474,634
WIN-3JGUKDAIHE0.006	1,459,587
WIN-3JGUKDAIHE0.007	1,464,263
WIN-3JGUKDAIHE0.008	1,471,633
ssj_ops@100%	11,725,627
ssj_ops@100% per JVM	1,465,703

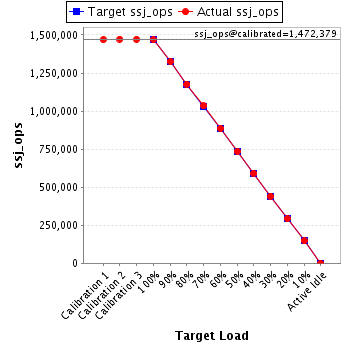

JVM 'WIN-3JGUKDAIHE0.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,468,749
Calibration 2			1,472,511
Calibration 3			1,472,248
ssj_ops@calibrated=1,472,379
100%	99.7%	1,472,379	1,467,520
90%	90.0%	1,325,141	1,324,565
80%	79.9%	1,177,903	1,177,081
70%	70.2%	1,030,665	1,033,961
60%	60.2%	883,428	886,669
50%	49.9%	736,190	734,648
40%	40.1%	588,952	591,102
30%	30.0%	441,714	441,518
20%	19.9%	294,476	293,547
10%	10.0%	147,238	147,265
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3JGUKDAIHE0.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,474,571
Calibration 2			1,471,182
Calibration 3			1,474,141
ssj_ops@calibrated=1,472,662
100%	99.7%	1,472,662	1,468,079
90%	90.1%	1,325,396	1,327,278
80%	80.2%	1,178,129	1,180,571
70%	70.0%	1,030,863	1,031,042
60%	60.1%	883,597	884,536
50%	50.0%	736,331	736,821
40%	40.0%	589,065	588,479
30%	29.9%	441,799	440,728
20%	20.0%	294,532	294,995
10%	10.1%	147,266	148,303
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3JGUKDAIHE0.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,460,405
Calibration 2			1,462,354
Calibration 3			1,461,935
ssj_ops@calibrated=1,462,145
100%	99.8%	1,462,145	1,459,249
90%	90.0%	1,315,930	1,315,518
80%	80.1%	1,169,716	1,171,289
70%	70.1%	1,023,501	1,025,082
60%	59.9%	877,287	876,024
50%	50.0%	731,072	730,596
40%	40.1%	584,858	585,826
30%	30.0%	438,643	438,797
20%	20.0%	292,429	292,463
10%	9.9%	146,214	144,834
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3JGUKDAIHE0.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,464,322
Calibration 2			1,461,072
Calibration 3			1,463,488
ssj_ops@calibrated=1,462,280
100%	99.9%	1,462,280	1,460,662
90%	90.1%	1,316,052	1,317,694
80%	79.9%	1,169,824	1,168,206
70%	70.2%	1,023,596	1,026,531
60%	60.1%	877,368	878,284
50%	50.1%	731,140	732,917
40%	40.0%	584,912	585,145
30%	30.0%	438,684	438,307
20%	20.0%	292,456	292,536
10%	9.9%	146,228	144,665
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

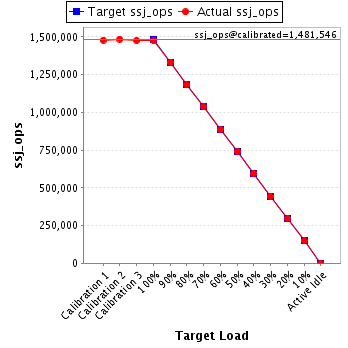

JVM 'WIN-3JGUKDAIHE0.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,479,277
Calibration 2			1,485,584
Calibration 3			1,477,508
ssj_ops@calibrated=1,481,546
100%	99.5%	1,481,546	1,474,634
90%	90.0%	1,333,391	1,332,841
80%	79.9%	1,185,236	1,183,978
70%	70.0%	1,037,082	1,036,824
60%	59.9%	888,927	887,085
50%	50.2%	740,773	743,766
40%	40.2%	592,618	595,027
30%	30.0%	444,464	445,062
20%	20.1%	296,309	297,163
10%	10.0%	148,155	147,911
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3JGUKDAIHE0.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,464,886
Calibration 2			1,464,791
Calibration 3			1,463,982
ssj_ops@calibrated=1,464,387
100%	99.7%	1,464,387	1,459,587
90%	90.0%	1,317,948	1,317,483
80%	80.1%	1,171,509	1,173,568
70%	70.1%	1,025,071	1,026,660
60%	59.7%	878,632	874,968
50%	49.8%	732,193	729,406
40%	40.1%	585,755	587,220
30%	30.1%	439,316	440,575
20%	19.9%	292,877	291,545
10%	10.0%	146,439	146,355
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3JGUKDAIHE0.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,466,462
Calibration 2			1,466,865
Calibration 3			1,468,572
ssj_ops@calibrated=1,467,718
100%	99.8%	1,467,718	1,464,263
90%	89.8%	1,320,947	1,317,844
80%	80.3%	1,174,175	1,178,174
70%	70.0%	1,027,403	1,027,892
60%	60.1%	880,631	881,597
50%	49.9%	733,859	731,823
40%	39.8%	587,087	584,289
30%	30.0%	440,316	440,626
20%	20.1%	293,544	294,492
10%	10.0%	146,772	146,391
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3JGUKDAIHE0.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,474,134
Calibration 2			1,474,815
Calibration 3			1,475,418
ssj_ops@calibrated=1,475,116
100%	99.8%	1,475,116	1,471,633
90%	90.0%	1,327,605	1,326,946
80%	79.9%	1,180,093	1,178,570
70%	70.0%	1,032,581	1,033,179
60%	60.2%	885,070	887,362
50%	49.9%	737,558	736,617
40%	40.1%	590,047	592,255
30%	30.0%	442,535	441,821
20%	20.0%	295,023	295,416
10%	10.0%	147,512	148,086
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
