Hewlett Packard Enterprise ProLiant DL360 Gen10 ssj_ops@100% = 5,869,955
ssj_ops@100% per JVM = 1,467,489
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 9, 2017
Hardware Availability: Oct-2017 Software Availability: Apr-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,887,521
Calibration 2     5,887,053
Calibration 3     5,887,211
ssj_ops@calibrated=5,887,132
100% 99.7% 5,887,132 5,869,955
90% 90.0% 5,298,419 5,300,124
80% 80.1% 4,709,706 4,712,888
70% 69.9% 4,120,992 4,117,662
60% 60.1% 3,532,279 3,538,212
50% 50.0% 2,943,566 2,941,672
40% 40.0% 2,354,853 2,357,786
30% 30.0% 1,766,140 1,767,298
20% 20.0% 1,177,426 1,177,979
10% 10.0% 588,713 589,575
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 12 x 8182 MB
Memory Details: 12 x 8GB 2Rx8 PC4-2666V-RE1-12 Samsung; slots 1, 3, 5, 8, 10, and 12 populated in each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DPS-800AB (865438-B21) 96%
Disk Drive: 1 x HPE Dual 150GB SATA RI uFF M.2 SSSD (880875-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 2-port 332T Adapter (615732-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U32 v1.22 (09/29/2017)
Management Firmware Version: 1.15 Aug 03 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-094J7GNS112.001 1,474,518
WIN-094J7GNS112.002 1,470,615
WIN-094J7GNS112.003 1,470,650
WIN-094J7GNS112.004 1,454,172
ssj_ops@100% 5,869,955
ssj_ops@100% per JVM 1,467,489

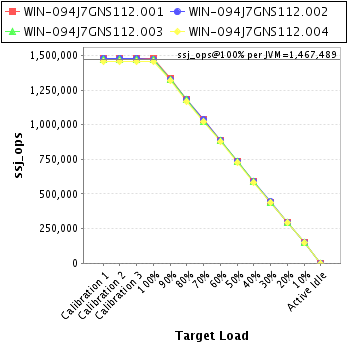

Graph of per-instance results
JVM 'WIN-094J7GNS112.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,480,233
Calibration 2     1,477,432
Calibration 3     1,478,089
ssj_ops@calibrated=1,477,760
100% 99.8% 1,477,760 1,474,518
90% 90.1% 1,329,984 1,331,914
80% 80.1% 1,182,208 1,183,670
70% 70.1% 1,034,432 1,035,212
60% 60.0% 886,656 887,283
50% 49.9% 738,880 737,387
40% 40.1% 591,104 592,616
30% 29.9% 443,328 441,680
20% 20.0% 295,552 296,116
10% 10.0% 147,776 148,166
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-094J7GNS112.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,477,555
Calibration 2     1,478,526
Calibration 3     1,476,123
ssj_ops@calibrated=1,477,324
100% 99.5% 1,477,324 1,470,615
90% 89.8% 1,329,592 1,326,747
80% 80.0% 1,181,860 1,181,451
70% 70.1% 1,034,127 1,035,706
60% 60.2% 886,395 889,576
50% 50.0% 738,662 737,994
40% 40.0% 590,930 590,244
30% 30.1% 443,197 444,920
20% 20.0% 295,465 295,599
10% 10.0% 147,732 147,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

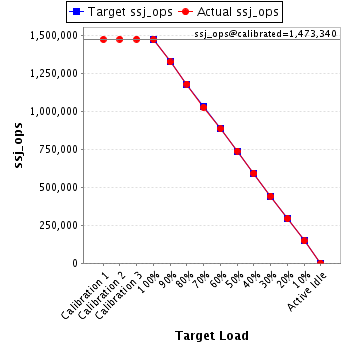

JVM 'WIN-094J7GNS112.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,471,910
Calibration 2     1,472,986
Calibration 3     1,473,694
ssj_ops@calibrated=1,473,340
100% 99.8% 1,473,340 1,470,650
90% 89.8% 1,326,006 1,323,587
80% 80.0% 1,178,672 1,178,620
70% 69.6% 1,031,338 1,026,043
60% 60.0% 884,004 883,850
50% 50.1% 736,670 738,024
40% 40.1% 589,336 590,833
30% 30.0% 442,002 442,036
20% 19.9% 294,668 293,804
10% 10.0% 147,334 147,151
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

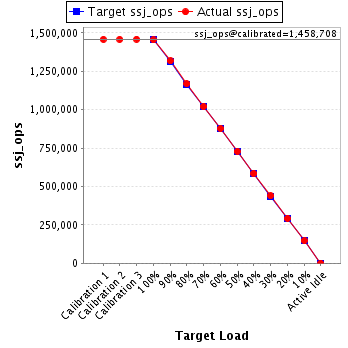

JVM 'WIN-094J7GNS112.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,457,823
Calibration 2     1,458,110
Calibration 3     1,459,306
ssj_ops@calibrated=1,458,708
100% 99.7% 1,458,708 1,454,172
90% 90.3% 1,312,837 1,317,876
80% 80.1% 1,166,966 1,169,147
70% 70.0% 1,021,095 1,020,701
60% 60.2% 875,225 877,503
50% 49.9% 729,354 728,267
40% 40.0% 583,483 584,094
30% 30.1% 437,612 438,663
20% 20.0% 291,742 292,460
10% 10.1% 145,871 146,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
