Fujitsu FUJITSU Server PRIMERGY RX4770 M4 SPECpower_ssj2008 = 11,886 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Sep 27, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 18, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 782 24.1
Calibration 2 786 24.1
Calibration 3 787 24.2
100% 785 24.1
90% 687 24.1
80% 590 24.2
70% 522 24.2
60% 467 24.2
50% 419 24.2
40% 376 24.3
30% 336 24.4
20% 295 24.4
10% 253 24.4
Active Idle 148 24.4

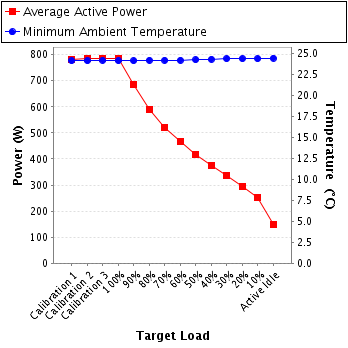

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170121768
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION.
Calibration Label: 2017H010225
Date of Calibration: 20-Jan-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 205 300.0 3.83 5.0 0.998 782 0.2%
Calibration 2 204 300.0 3.85 5.0 0.998 786 0.2%
Calibration 3 205 300.0 3.85 5.0 0.998 787 0.2%
100% 205 300.0 3.84 5.0 0.998 785 0.2%
90% 205 300.0 3.37 5.0 0.997 687 0.2%
80% 205 300.0 2.89 5.0 0.997 590 0.2%
70% 205 300.0 2.56 5.0 0.996 522 0.3%
60% 205 300.0 2.29 5.0 0.995 467 0.3%
50% 205 300.0 2.06 5.0 0.994 419 0.3%
40% 205 300.0 1.85 5.0 0.993 376 0.3%
30% 205 300.0 1.65 5.0 0.992 336 0.3%
20% 205 300.0 1.45 2.0 0.990 295 0.2%
10% 205 300.0 1.25 2.0 0.987 253 0.2%
Active Idle 206 300.0 0.741 1.0 0.973 148 0.2%

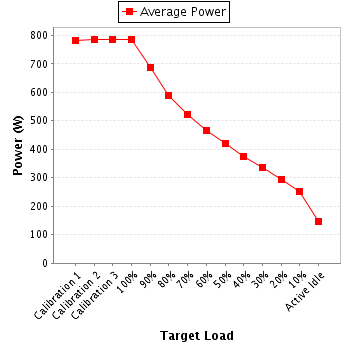

Power details for pwr1
