Inspur Corporation NF5280 M4 ssj_ops@100% = 3,561,599
ssj_ops@100% per JVM = 890,400
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Aug 6, 2017
Hardware Availability: Jun-2016 Software Availability: Jan-2015 Publication: Aug 30, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,536,341
Calibration 2     3,575,214
Calibration 3     3,566,083
ssj_ops@calibrated=3,570,649
100% 99.7% 3,570,649 3,561,599
90% 89.9% 3,213,584 3,210,954
80% 80.1% 2,856,519 2,859,402
70% 70.1% 2,499,454 2,504,652
60% 59.9% 2,142,389 2,138,538
50% 49.9% 1,785,324 1,783,222
40% 40.0% 1,428,259 1,427,593
30% 29.9% 1,071,195 1,068,982
20% 20.0% 714,130 713,846
10% 10.0% 357,065 357,111
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node.
Hardware
Hardware Vendor: Inspur Corporation
Model: NF5280 M4
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v4
CPU Characteristics: 22-Core, 2.20GHz, 55MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16 GB 2Rx8 PC4-2400N ECC; slots CHA0, CHB0, CHC0, CHD0, CHE0, CHF0, CHG0, CHH0 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Delta DPS-800AB-9X P/N:V07LP0400000000F
Disk Drive: Intel SSD DC S3500 Series 6Gb/s 80G PN:ZMHD1000018
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 OnBoard LAN
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced Performance" power plan)
Operating System (OS): Microsoft Windows Servers 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM)64-Bit Server VM(build 24.80-b11,mixed mode),version 1.7.0_80
JVM Command-line Options: -server -Xmn11g -Xms13g -Xmx13g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=22 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /NODE [0,1,2,3] /affinity 0x3FFFFF
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 4.1.8
Management Firmware Version: 4.15
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-DOJPJ16PNIT.001 897,561
WIN-DOJPJ16PNIT.002 899,412
WIN-DOJPJ16PNIT.003 892,687
WIN-DOJPJ16PNIT.004 871,939
ssj_ops@100% 3,561,599
ssj_ops@100% per JVM 890,400

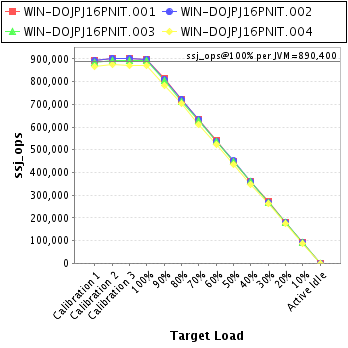

Graph of per-instance results
JVM 'WIN-DOJPJ16PNIT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     892,338
Calibration 2     902,695
Calibration 3     901,398
ssj_ops@calibrated=902,046
100% 99.5% 902,046 897,561
90% 90.0% 811,842 811,613
80% 79.8% 721,637 720,220
70% 70.0% 631,432 631,146
60% 59.8% 541,228 539,001
50% 49.9% 451,023 450,058
40% 40.1% 360,819 361,789
30% 30.0% 270,614 270,889
20% 19.9% 180,409 179,566
10% 10.0% 90,205 89,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DOJPJ16PNIT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     891,900
Calibration 2     903,074
Calibration 3     902,495
ssj_ops@calibrated=902,784
100% 99.6% 902,784 899,412
90% 89.9% 812,506 811,292
80% 80.1% 722,227 722,883
70% 70.1% 631,949 633,092
60% 59.6% 541,671 538,284
50% 50.0% 451,392 451,794
40% 39.8% 361,114 359,698
30% 29.8% 270,835 269,237
20% 19.9% 180,557 179,758
10% 10.0% 90,278 90,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DOJPJ16PNIT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     885,823
Calibration 2     893,208
Calibration 3     892,444
ssj_ops@calibrated=892,826
100% 100.0% 892,826 892,687
90% 90.0% 803,544 803,321
80% 79.9% 714,261 713,449
70% 70.4% 624,978 628,367
60% 60.1% 535,696 537,002
50% 50.0% 446,413 446,205
40% 40.1% 357,131 357,894
30% 29.9% 267,848 267,345
20% 20.0% 178,565 178,265
10% 10.1% 89,283 89,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DOJPJ16PNIT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     866,280
Calibration 2     876,237
Calibration 3     869,746
ssj_ops@calibrated=872,992
100% 99.9% 872,992 871,939
90% 89.9% 785,692 784,728
80% 80.5% 698,393 702,849
70% 70.1% 611,094 612,047
60% 60.1% 523,795 524,251
50% 49.8% 436,496 435,165
40% 39.9% 349,197 348,212
30% 30.0% 261,897 261,512
20% 20.2% 174,598 176,258
10% 10.0% 87,299 86,928
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
