SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Inspur Corporation NF5280 M4 | SPECpower_ssj2008 = 12,296 overall ssj_ops/watt | ||||
| Test Sponsor: | Inspur Corporation | SPEC License #: | 3358 | Test Method: | Single Node |
| Tested By: | Inspur Corporation | Test Location: | JINAN, CHINA | Test Date: | Aug 6, 2017 |
| Hardware Availability: | Jun-2016 | Software Availability: | Jan-2015 | Publication: | Aug 30, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

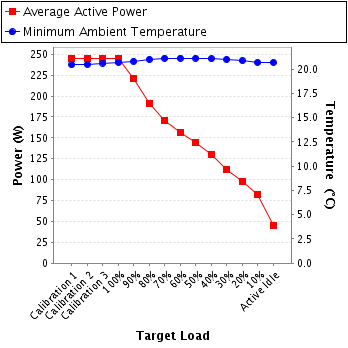

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 245 | 20.4 |
| Calibration 2 | 245 | 20.5 |
| Calibration 3 | 245 | 20.6 |
| 100% | 245 | 20.7 |
| 90% | 221 | 20.8 |
| 80% | 191 | 21.0 |
| 70% | 171 | 21.1 |
| 60% | 156 | 21.1 |
| 50% | 144 | 21.1 |
| 40% | 130 | 21.1 |
| 30% | 113 | 21.0 |
| 20% | 97.5 | 20.9 |
| 10% | 82.1 | 20.7 |
| Active Idle | 45.7 | 20.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91H414490 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | QDCTI170324337-29 |
| Date of Calibration: | 27-Jul-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.0-efc0c004-20160120 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | less than 50mm in front of SUT main airflow. |

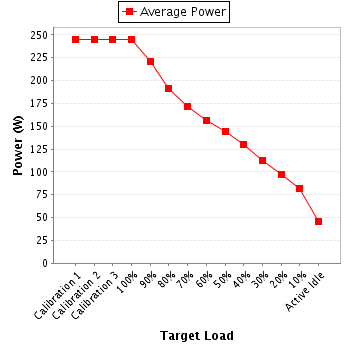

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 225 | 300.0 | 1.20 | 2.0 | 0.910 | 245 | 0.5% |
| Calibration 2 | 225 | 300.0 | 1.20 | 2.0 | 0.909 | 245 | 0.5% |
| Calibration 3 | 225 | 300.0 | 1.20 | 2.0 | 0.909 | 245 | 0.5% |
| 100% | 225 | 300.0 | 1.20 | 2.0 | 0.909 | 245 | 0.5% |
| 90% | 225 | 300.0 | 1.09 | 2.0 | 0.900 | 221 | 0.5% |
| 80% | 225 | 300.0 | 0.959 | 2.0 | 0.887 | 191 | 0.6% |
| 70% | 225 | 300.0 | 0.869 | 2.0 | 0.876 | 171 | 0.6% |
| 60% | 225 | 300.0 | 0.803 | 1.0 | 0.866 | 156 | 0.5% |
| 50% | 225 | 300.0 | 0.748 | 1.0 | 0.858 | 144 | 0.5% |
| 40% | 225 | 300.0 | 0.683 | 1.0 | 0.846 | 130 | 0.5% |
| 30% | 225 | 300.0 | 0.604 | 1.0 | 0.830 | 113 | 0.6% |
| 20% | 225 | 300.0 | 0.533 | 0.5 | 0.812 | 97.5 | 0.4% |
| 10% | 225 | 300.0 | 0.463 | 0.5 | 0.789 | 82.1 | 0.5% |
| Active Idle | 225 | 300.0 | 0.296 | 0.5 | 0.686 | 45.7 | 0.7% |
