SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL560 Gen10 | SPECpower_ssj2008 = 11,662 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Jun 30, 2017 |
| Hardware Availability: | Sep-2017 | Software Availability: | Jan-2015 | Publication: | Jul 19, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

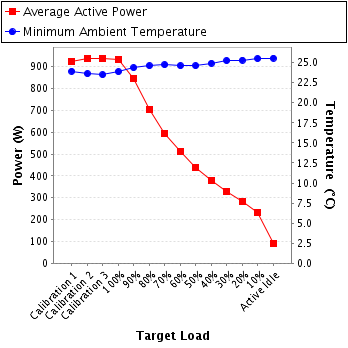

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 925 | 23.9 |
| Calibration 2 | 938 | 23.6 |
| Calibration 3 | 939 | 23.5 |
| 100% | 936 | 23.9 |
| 90% | 847 | 24.4 |
| 80% | 706 | 24.6 |
| 70% | 592 | 24.8 |
| 60% | 510 | 24.6 |
| 50% | 438 | 24.6 |
| 40% | 378 | 24.9 |
| 30% | 329 | 25.2 |
| 20% | 281 | 25.3 |
| 10% | 232 | 25.5 |
| Active Idle | 88.9 | 25.6 |

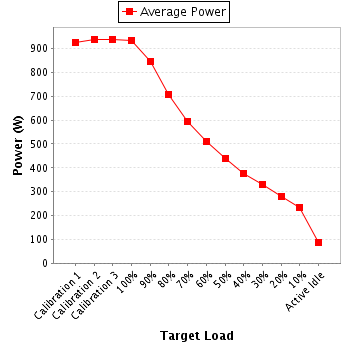

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-D0562-180-1 |
| Date of Calibration: | 18-Apr-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | SUT Power Supplies 1 and 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300.0 | 4.38 | 5.0 | 0.991 | 925 | 0.3% |
| Calibration 2 | 213 | 300.0 | 4.44 | 5.0 | 0.991 | 938 | 0.3% |
| Calibration 3 | 213 | 300.0 | 4.45 | 5.0 | 0.992 | 939 | 0.3% |
| 100% | 213 | 300.0 | 4.43 | 5.0 | 0.991 | 936 | 0.3% |
| 90% | 213 | 300.0 | 4.01 | 5.0 | 0.990 | 847 | 0.4% |
| 80% | 213 | 300.0 | 3.36 | 5.0 | 0.986 | 706 | 0.4% |
| 70% | 213 | 300.0 | 2.82 | 5.0 | 0.983 | 592 | 0.4% |
| 60% | 214 | 300.0 | 2.43 | 5.0 | 0.982 | 510 | 0.5% |
| 50% | 214 | 300.0 | 2.09 | 5.0 | 0.980 | 438 | 0.5% |
| 40% | 214 | 300.0 | 1.81 | 5.0 | 0.975 | 378 | 0.6% |
| 30% | 214 | 300.0 | 1.59 | 5.0 | 0.968 | 329 | 0.7% |
| 20% | 215 | 300.0 | 1.37 | 2.0 | 0.957 | 281 | 0.4% |
| 10% | 215 | 300.0 | 1.15 | 2.0 | 0.940 | 232 | 0.5% |
| Active Idle | 215 | 300.0 | 0.568 | 1.0 | 0.729 | 88.9 | 0.7% |
