Fujitsu FUJITSU Server PRIMERGY TX1320 M3 SPECpower_ssj2008 = 10,427 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Mar 7, 2017
Hardware Availability: May-2017 Software Availability: Jan-2015 Publication: Apr 12, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 51.5 20.2
Calibration 2 51.8 20.2
Calibration 3 51.9 20.2
100% 51.8 20.2
90% 47.9 20.2
80% 40.9 20.2
70% 34.6 20.2
60% 29.5 20.2
50% 25.5 20.2
40% 22.5 20.2
30% 19.9 20.2
20% 17.2 20.2
10% 14.0 20.2
Active Idle 9.33 20.2

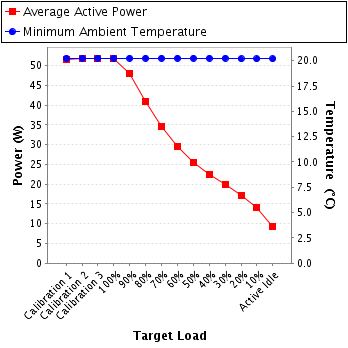

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170121768
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: 2017H010225
Date of Calibration: 20-Jan-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
  • None
    • Power Details for Device pwr1
    Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
    Avg Range Avg Range
    Calibration 1 206 300.0 0.305 0.5 0.817 51.5 0.3%
    Calibration 2 203 300.0 0.309 0.5 0.825 51.8 0.3%
    Calibration 3 202 300.0 0.309 0.5 0.829 51.9 0.3%
    100% 203 300.0 0.309 0.5 0.828 51.8 0.3%
    90% 203 300.0 0.294 0.5 0.805 47.9 0.3%
    80% 202 300.0 0.268 0.5 0.754 40.9 0.4%
    70% 202 300.0 0.245 0.5 0.698 34.6 0.4%
    60% 201 300.0 0.232 0.5 0.632 29.5 0.5%
    50% 201 300.0 0.225 0.5 0.565 25.5 0.5%
    40% 201 300.0 0.214 0.5 0.523 22.5 0.6%
    30% 201 300.0 0.202 0.5 0.490 19.9 0.7%
    20% 203 300.0 0.192 0.5 0.442 17.2 0.7%
    10% 202 300.0 0.180 0.2 0.386 14.0 0.6%
    Active Idle 201 300.0 0.165 0.2 0.282 9.33 0.8%

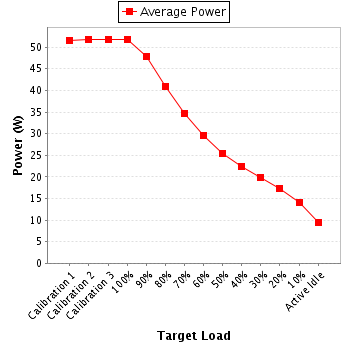

    Power details for pwr1
