SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX1330 M3 | SPECpower_ssj2008 = 9,281 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Mar 8, 2017 |
| Hardware Availability: | May-2017 | Software Availability: | Jan-2015 | Publication: | Apr 12, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

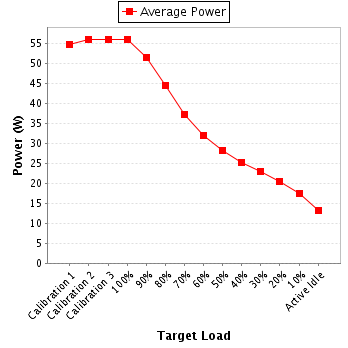

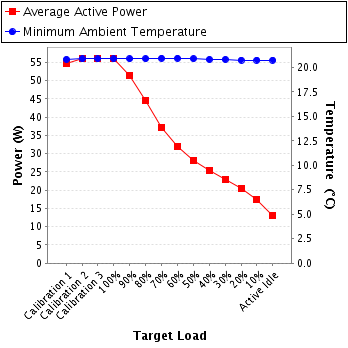

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 54.7 | 20.8 |
| Calibration 2 | 56.1 | 20.9 |
| Calibration 3 | 56.1 | 20.9 |
| 100% | 56.1 | 20.9 |
| 90% | 51.5 | 20.9 |
| 80% | 44.5 | 20.9 |
| 70% | 37.3 | 20.9 |
| 60% | 31.9 | 20.9 |
| 50% | 28.2 | 20.9 |
| 40% | 25.4 | 20.8 |
| 30% | 23.0 | 20.8 |
| 20% | 20.5 | 20.8 |
| 10% | 17.5 | 20.8 |
| Active Idle | 13.1 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170121768 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | 2017H010225 |
| Date of Calibration: | 20-Jan-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.0-efc0c004-20160120 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300.0 | 0.312 | 0.5 | 0.857 | 54.7 | 0.3% |
| Calibration 2 | 205 | 300.0 | 0.318 | 0.5 | 0.862 | 56.1 | 0.3% |
| Calibration 3 | 205 | 300.0 | 0.318 | 0.5 | 0.862 | 56.1 | 0.3% |
| 100% | 205 | 300.0 | 0.318 | 0.5 | 0.862 | 56.1 | 0.3% |
| 90% | 205 | 300.0 | 0.299 | 0.5 | 0.842 | 51.5 | 0.3% |
| 80% | 205 | 300.0 | 0.270 | 0.5 | 0.804 | 44.5 | 0.3% |
| 70% | 205 | 300.0 | 0.241 | 0.5 | 0.755 | 37.3 | 0.4% |
| 60% | 205 | 300.0 | 0.220 | 0.5 | 0.709 | 31.9 | 0.4% |
| 50% | 205 | 300.0 | 0.206 | 0.5 | 0.668 | 28.2 | 0.5% |
| 40% | 205 | 300.0 | 0.196 | 0.5 | 0.633 | 25.4 | 0.5% |
| 30% | 205 | 300.0 | 0.188 | 0.2 | 0.599 | 23.0 | 0.4% |
| 20% | 205 | 300.0 | 0.179 | 0.2 | 0.559 | 20.5 | 0.4% |
| 10% | 204 | 300.0 | 0.168 | 0.2 | 0.511 | 17.5 | 0.4% |
| Active Idle | 204 | 300.0 | 0.150 | 0.2 | 0.428 | 13.1 | 0.5% |
