Huawei Technologies Co., Ltd FusionServer XH321 V3 SPECpower_ssj2008 = 10,261 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 4, 2017
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Mar 29, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,320 22.6
Calibration 2 1,322 22.8
Calibration 3 1,322 22.9
100% 1,322 22.8
90% 1,132 22.8
80% 966 22.8
70% 852 22.8
60% 764 22.6
50% 705 22.5
40% 645 22.6
30% 579 22.6
20% 502 22.6
10% 419 22.4
Active Idle 232 22.2

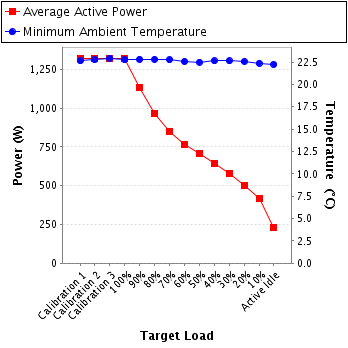

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91MC13547
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: A16002467-0051
Date of Calibration: 21-Mar-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1,PSU2
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: Unknown
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 6.07 20.0 0.988 1,320 0.6%
Calibration 2 220 300.0 6.08 20.0 0.988 1,322 0.6%
Calibration 3 220 300.0 6.08 20.0 0.988 1,322 0.6%
100% 220 300.0 6.08 20.0 0.988 1,322 0.6%
90% 220 300.0 5.21 20.0 0.986 1,132 0.7%
80% 221 300.0 4.46 20.0 0.983 966 0.8%
70% 221 300.0 3.94 20.0 0.980 852 0.9%
60% 221 300.0 3.54 10.0 0.977 764 0.6%
50% 221 300.0 3.28 10.0 0.974 705 0.6%
40% 221 300.0 2.99 10.0 0.977 645 0.7%
30% 221 300.0 2.69 10.0 0.973 579 0.7%
20% 221 300.0 2.35 10.0 0.965 502 0.8%
10% 221 300.0 1.98 10.0 0.956 419 0.9%
Active Idle 222 300.0 1.16 5.0 0.902 232 0.9%

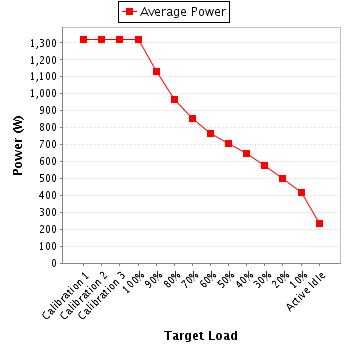

Power details for pwr1
