Huawei Technologies Co., Ltd FusionServer CH121 V3 ssj_ops@100% = 3,037,977
ssj_ops@100% per JVM = 189,874
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 17, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Dec 21, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,109,316
Calibration 2     3,042,702
Calibration 3     3,047,473
ssj_ops@calibrated=3,045,088
100% 99.8% 3,045,088 3,037,977
90% 90.0% 2,740,579 2,740,460
80% 80.0% 2,436,070 2,435,797
70% 70.1% 2,131,561 2,133,515
60% 60.1% 1,827,053 1,828,710
50% 49.9% 1,522,544 1,520,916
40% 39.9% 1,218,035 1,214,116
30% 30.1% 913,526 916,159
20% 20.1% 609,018 611,860
10% 10.0% 304,509 303,171
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 10
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer CH121 V3
Form Factor: 12U
CPU Name: Intel Xeon E5-2683 V4
CPU Characteristics: 16-Core, 2.1GHz, 40MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 40 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx4 PC4-2400T ECC RDIMM;slots DIMM000, DIMM001, DIMM010, DIMM011, DIMM020, DIMM021, DIMM030, DIMM030, DIMM100, DIMM101, DIMM110, DIMM111, DIMM120, DIMM121, DIMM130, and DIMM131 populated
Power Supply Quantity and Rating (W): 6 x 3000
Power Supply Details: Shared
Disk Drive: 2 x 300GB HDD 2.5" SAS Huawei P/N 02311EXX
Disk Controller: LSI 3008
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port 10Gigabit Ethernet controller CNA Mezzanine Card Huawei P/N 03022ATY
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1400m -Xms1575m -Xmx1575m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.26
Management Firmware Version: 2.08
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-6EM57JFRD2U.001 191,200
WIN-6EM57JFRD2U.002 191,535
WIN-6EM57JFRD2U.003 187,850
WIN-6EM57JFRD2U.004 194,155
WIN-6EM57JFRD2U.005 192,987
WIN-6EM57JFRD2U.006 192,144
WIN-6EM57JFRD2U.007 188,215
WIN-6EM57JFRD2U.008 186,692
WIN-6EM57JFRD2U.009 189,096
WIN-6EM57JFRD2U.010 189,092
WIN-6EM57JFRD2U.011 190,870
WIN-6EM57JFRD2U.012 192,601
WIN-6EM57JFRD2U.013 190,047
WIN-6EM57JFRD2U.014 191,148
WIN-6EM57JFRD2U.015 185,365
WIN-6EM57JFRD2U.016 184,981
ssj_ops@100% 3,037,977
ssj_ops@100% per JVM 189,874
Graph of per-instance results
JVM 'WIN-6EM57JFRD2U.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,525
Calibration 2     190,947
Calibration 3     191,225
ssj_ops@calibrated=191,086
100% 100.1% 191,086 191,200
90% 89.6% 171,977 171,271
80% 79.3% 152,869 151,586
70% 69.4% 133,760 132,661
60% 60.1% 114,652 114,861
50% 49.9% 95,543 95,335
40% 39.2% 76,434 74,943
30% 29.9% 57,326 57,131
20% 20.3% 38,217 38,871
10% 9.8% 19,109 18,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,091
Calibration 2     191,952
Calibration 3     191,972
ssj_ops@calibrated=191,962
100% 99.8% 191,962 191,535
90% 89.3% 172,766 171,434
80% 79.7% 153,570 152,958
70% 70.5% 134,373 135,302
60% 59.7% 115,177 114,577
50% 49.7% 95,981 95,379
40% 39.8% 76,785 76,330
30% 29.7% 57,589 57,033
20% 19.9% 38,392 38,265
10% 9.9% 19,196 19,049
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,187
Calibration 2     186,762
Calibration 3     189,292
ssj_ops@calibrated=188,027
100% 99.9% 188,027 187,850
90% 90.7% 169,224 170,572
80% 80.6% 150,422 151,547
70% 70.0% 131,619 131,597
60% 60.2% 112,816 113,216
50% 50.4% 94,014 94,789
40% 39.4% 75,211 74,169
30% 30.2% 56,408 56,872
20% 20.4% 37,605 38,416
10% 10.2% 18,803 19,148
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,283
Calibration 2     194,666
Calibration 3     194,213
ssj_ops@calibrated=194,439
100% 99.9% 194,439 194,155
90% 89.7% 174,995 174,382
80% 80.0% 155,551 155,500
70% 70.3% 136,107 136,673
60% 59.5% 116,664 115,634
50% 50.0% 97,220 97,317
40% 40.2% 77,776 78,113
30% 30.3% 58,332 58,942
20% 20.2% 38,888 39,368
10% 10.0% 19,444 19,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

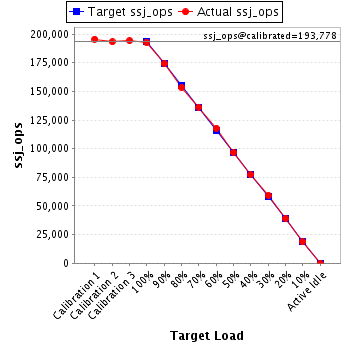

JVM 'WIN-6EM57JFRD2U.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,626
Calibration 2     193,296
Calibration 3     194,260
ssj_ops@calibrated=193,778
100% 99.6% 193,778 192,987
90% 89.9% 174,400 174,269
80% 79.3% 155,022 153,597
70% 70.4% 135,644 136,396
60% 60.8% 116,267 117,897
50% 49.9% 96,889 96,783
40% 39.8% 77,511 77,167
30% 30.5% 58,133 59,138
20% 20.1% 38,756 39,036
10% 9.6% 19,378 18,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,476
Calibration 2     193,146
Calibration 3     193,106
ssj_ops@calibrated=193,126
100% 99.5% 193,126 192,144
90% 90.5% 173,814 174,840
80% 80.3% 154,501 154,991
70% 69.6% 135,188 134,355
60% 59.3% 115,876 114,564
50% 49.7% 96,563 96,067
40% 39.5% 77,250 76,307
30% 30.0% 57,938 57,843
20% 20.1% 38,625 38,846
10% 9.9% 19,313 19,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,251
Calibration 2     189,749
Calibration 3     189,157
ssj_ops@calibrated=189,453
100% 99.3% 189,453 188,215
90% 90.1% 170,508 170,645
80% 80.0% 151,562 151,621
70% 70.6% 132,617 133,827
60% 59.5% 113,672 112,801
50% 50.3% 94,727 95,233
40% 40.3% 75,781 76,316
30% 30.3% 56,836 57,411
20% 20.0% 37,891 37,945
10% 10.2% 18,945 19,323
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

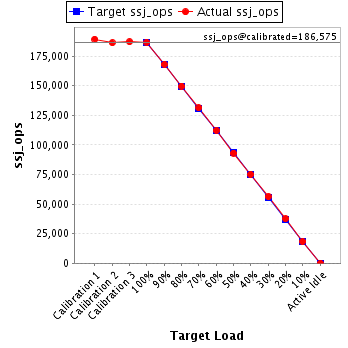

JVM 'WIN-6EM57JFRD2U.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,302
Calibration 2     186,140
Calibration 3     187,009
ssj_ops@calibrated=186,575
100% 100.1% 186,575 186,692
90% 90.0% 167,917 167,998
80% 80.2% 149,260 149,716
70% 70.4% 130,602 131,266
60% 60.2% 111,945 112,279
50% 49.9% 93,287 93,116
40% 40.2% 74,630 75,090
30% 30.2% 55,972 56,287
20% 20.2% 37,315 37,595
10% 9.9% 18,657 18,407
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,791
Calibration 2     189,697
Calibration 3     190,488
ssj_ops@calibrated=190,093
100% 99.5% 190,093 189,096
90% 90.7% 171,083 172,335
80% 79.6% 152,074 151,402
70% 69.9% 133,065 132,935
60% 59.8% 114,056 113,667
50% 50.3% 95,046 95,675
40% 40.0% 76,037 75,960
30% 30.3% 57,028 57,603
20% 20.2% 38,019 38,374
10% 10.0% 19,009 19,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,553
Calibration 2     188,935
Calibration 3     189,748
ssj_ops@calibrated=189,341
100% 99.9% 189,341 189,092
90% 90.9% 170,407 172,060
80% 79.6% 151,473 150,776
70% 70.5% 132,539 133,426
60% 60.9% 113,605 115,363
50% 49.7% 94,671 94,107
40% 39.9% 75,737 75,620
30% 29.8% 56,802 56,497
20% 19.8% 37,868 37,538
10% 10.1% 18,934 19,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,157
Calibration 2     191,256
Calibration 3     191,558
ssj_ops@calibrated=191,407
100% 99.7% 191,407 190,870
90% 89.8% 172,266 171,970
80% 80.1% 153,125 153,349
70% 69.7% 133,985 133,387
60% 60.1% 114,844 115,003
50% 49.7% 95,703 95,223
40% 40.1% 76,563 76,804
30% 30.1% 57,422 57,572
20% 20.2% 38,281 38,697
10% 10.0% 19,141 19,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

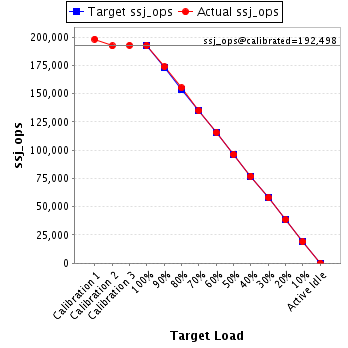

JVM 'WIN-6EM57JFRD2U.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,174
Calibration 2     192,159
Calibration 3     192,836
ssj_ops@calibrated=192,498
100% 100.1% 192,498 192,601
90% 90.3% 173,248 173,773
80% 80.6% 153,998 155,107
70% 70.1% 134,748 134,901
60% 60.1% 115,499 115,612
50% 50.0% 96,249 96,187
40% 40.0% 76,999 77,013
30% 30.2% 57,749 58,083
20% 20.0% 38,500 38,434
10% 9.9% 19,250 18,986
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,090
Calibration 2     190,686
Calibration 3     189,616
ssj_ops@calibrated=190,151
100% 99.9% 190,151 190,047
90% 89.7% 171,136 170,546
80% 80.3% 152,121 152,675
70% 70.1% 133,106 133,373
60% 60.2% 114,091 114,439
50% 49.9% 95,076 94,881
40% 39.9% 76,060 75,954
30% 29.8% 57,045 56,571
20% 20.0% 38,030 38,039
10% 10.1% 19,015 19,264
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,076
Calibration 2     190,625
Calibration 3     191,490
ssj_ops@calibrated=191,058
100% 100.0% 191,058 191,148
90% 89.5% 171,952 170,972
80% 79.9% 152,846 152,612
70% 70.0% 133,740 133,749
60% 60.3% 114,635 115,182
50% 50.1% 95,529 95,791
40% 39.7% 76,423 75,828
30% 30.0% 57,317 57,363
20% 20.1% 38,212 38,334
10% 10.0% 19,106 19,135
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,597
Calibration 2     186,531
Calibration 3     186,080
ssj_ops@calibrated=186,306
100% 99.5% 186,306 185,365
90% 89.8% 167,675 167,335
80% 80.1% 149,044 149,316
70% 69.7% 130,414 129,814
60% 59.9% 111,783 111,513
50% 49.4% 93,153 91,954
40% 40.1% 74,522 74,685
30% 30.0% 55,892 55,939
20% 20.0% 37,261 37,232
10% 10.1% 18,631 18,770
Active Idle   0 0

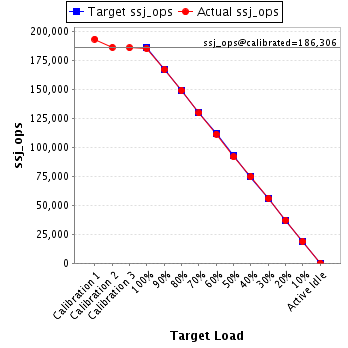

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6EM57JFRD2U.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,139
Calibration 2     186,154
Calibration 3     185,424
ssj_ops@calibrated=185,789
100% 99.6% 185,789 184,981
90% 89.4% 167,210 166,058
80% 80.2% 148,631 149,045
70% 69.9% 130,052 129,852
60% 60.3% 111,473 112,103
50% 50.1% 92,894 93,079
40% 39.7% 74,316 73,818
30% 30.1% 55,737 55,873
20% 19.8% 37,158 36,872
10% 9.6% 18,579 17,820
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
