SPECpower_ssj2008

Huawei Technologies Co., Ltd FusionServer CH121 V3			SPECpower_ssj2008 = 5,316 overall ssj_ops/watt
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Multi Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Sep 18, 2016
Hardware Availability:	Mar-2016	Software Availability:	Jan-2015	Publication:	Dec 21, 2016
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
8	16	256	512	4,096	8	128

Shared Hardware
Enclosure:	Huawei FusionServer E9000
Form Factor:	12U
Power Supply Quantity and Rating (W):	6 x 3000
Power Supply Details:	Huawei P/N 02310LKL
Network Switch:	Huawei Quidway S5348TP-SI
Network Switch Details:	48-PORT Quidway S5348TP-SI
KVM Switch:	None
KVM Switch Details:	None
Other Hardware:	<ul><li>2 x CX310 10 GE switch module Huawei P/N 03054849.</li><li>2 x MM910 shelf management module Huawei P/N 03054675.</li><li>14 x hot-swappable fan module Huawei P/N 03030QEJ.</li><li>
Comment:	None

Hardware per Node
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	FusionServer CH121 V3
Form Factor:	12U
CPU Name:	Intel Xeon E5-2683 V4
CPU Characteristics:	16-Core, 2.1GHz, 40MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz):	2100
CPU(s) Enabled:	32 cores, 2 chips, 16 cores/chip
Hardware Threads:	64 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	40 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	512
# and size of DIMM:	16 x 32 GB
Memory Details:	32GB 2Rx4 PC4-2400T ECC RDIMM;slots DIMM000, DIMM001, DIMM010, DIMM011, DIMM020, DIMM021, DIMM030, DIMM030, DIMM100, DIMM101, DIMM110, DIMM111, DIMM120, DIMM121, DIMM130, and DIMM131 populated
Power Supply Quantity and Rating (W):	6 x 3000
Power Supply Details:	Shared
Disk Drive:	2 x 300GB HDD 2.5" SAS Huawei P/N 02311EXX
Disk Controller:	LSI 3008
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port 10Gigabit Ethernet controller CNA Mezzanine Card Huawei P/N 03022ATY
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Power Saver Mode enabled in OS
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn1400m -Xms1575m -Xmx1575m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity:	start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances:	16
JVM Initial Heap (MB):	1575
JVM Maximum Heap (MB):	1575
JVM Address Bits:	64
Boot Firmware Version:	3.26
Management Firmware Version:	2.08
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	none

none

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to four logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor:	IBM Corporation
JVM Version:	IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91MC13547
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	A16002467-0051
Date of Calibration:	21-Mar-2016
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.0-efc0c004-20160120
Setup Description:	SUT power supplies 1,2,3,4,5,6

Temperature Sensor temp1
Hardware Vendor:	Digi
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

None

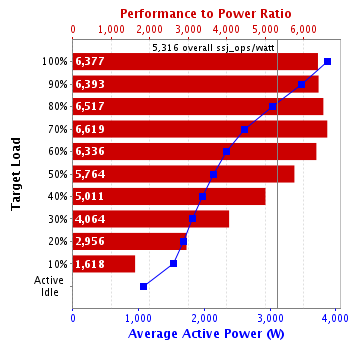

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	3,868	21.5
90%	3,481	21.5
80%	3,032	21.4
70%	2,611	21.4
60%	2,340	21.4
50%	2,143	21.4
40%	1,971	21.5
30%	1,823	21.8
20%	1,674	21.9
10%	1,531	21.9
Active Idle	1,080	22.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	21.4	101

See the Power/Temperature Details Report for additional details.

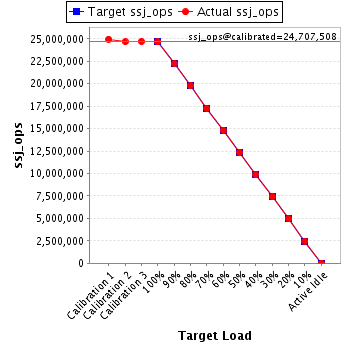

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
