Dell Inc. PowerEdge R630 (Intel Xeon E5-2699 v4 2.20 GHz) ssj_ops@100% = 3,529,367
ssj_ops@100% per JVM = 882,342
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 30, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,548,865
Calibration 2     3,528,569
Calibration 3     3,534,465
ssj_ops@calibrated=3,531,517
100% 99.9% 3,531,517 3,529,367
90% 90.1% 3,178,365 3,182,240
80% 80.0% 2,825,214 2,823,957
70% 70.0% 2,472,062 2,472,733
60% 60.1% 2,118,910 2,122,617
50% 50.0% 1,765,759 1,765,030
40% 40.0% 1,412,607 1,413,397
30% 30.1% 1,059,455 1,061,602
20% 20.0% 706,303 706,411
10% 10.0% 353,152 354,529
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R630 (Intel Xeon E5-2699 v4 2.20 GHz)
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2400T ECC; Dell p/n HNDJ7, Slots A1-4,B1-4 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell p/n KNHJV
Disk Drive: 1 x 120 GB SATA SSD, Dell p/n KX83R
Disk Controller: Native Chipset SATA
# and type of Network Interface Cards (NICs) Installed: 1 x quad-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.1.4
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-MPQ8LHUV8BS.001 885,394
WIN-MPQ8LHUV8BS.002 887,632
WIN-MPQ8LHUV8BS.003 878,828
WIN-MPQ8LHUV8BS.004 877,513
ssj_ops@100% 3,529,367
ssj_ops@100% per JVM 882,342

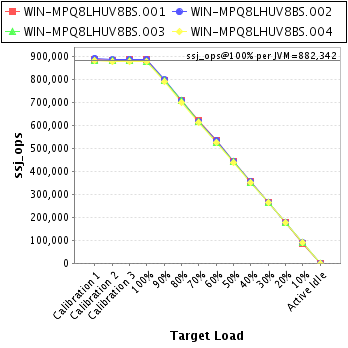

Graph of per-instance results
JVM 'WIN-MPQ8LHUV8BS.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     888,498
Calibration 2     883,951
Calibration 3     885,759
ssj_ops@calibrated=884,855
100% 100.1% 884,855 885,394
90% 90.1% 796,370 797,328
80% 79.9% 707,884 707,417
70% 70.0% 619,399 619,780
60% 60.3% 530,913 533,715
50% 50.1% 442,428 443,234
40% 40.3% 353,942 356,425
30% 30.1% 265,457 266,451
20% 20.0% 176,971 177,128
10% 10.0% 88,486 88,132
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MPQ8LHUV8BS.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     893,224
Calibration 2     886,219
Calibration 3     888,405
ssj_ops@calibrated=887,312
100% 100.0% 887,312 887,632
90% 90.1% 798,581 799,658
80% 79.8% 709,850 708,122
70% 69.8% 621,118 619,303
60% 60.2% 532,387 534,192
50% 50.0% 443,656 443,471
40% 40.0% 354,925 355,186
30% 30.0% 266,194 265,800
20% 19.9% 177,462 176,797
10% 10.0% 88,731 89,106
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MPQ8LHUV8BS.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     884,561
Calibration 2     881,205
Calibration 3     882,312
ssj_ops@calibrated=881,758
100% 99.7% 881,758 878,828
90% 90.1% 793,583 794,554
80% 80.2% 705,407 707,324
70% 70.2% 617,231 618,939
60% 59.8% 529,055 527,396
50% 50.1% 440,879 441,438
40% 39.8% 352,703 350,870
30% 30.0% 264,528 264,772
20% 19.9% 176,352 175,817
10% 10.1% 88,176 88,769
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MPQ8LHUV8BS.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     882,582
Calibration 2     877,194
Calibration 3     877,989
ssj_ops@calibrated=877,591
100% 100.0% 877,591 877,513
90% 90.1% 789,832 790,699
80% 79.9% 702,073 701,094
70% 70.0% 614,314 614,711
60% 60.1% 526,555 527,315
50% 49.8% 438,796 436,887
40% 40.0% 351,037 350,916
30% 30.1% 263,277 264,580
20% 20.1% 175,518 176,670
10% 10.1% 87,759 88,522
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
