Dell Inc. PowerEdge R630 (Intel Xeon E5-2699 v4 2.20 GHz) SPECpower_ssj2008 = 11,157 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 30, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 277 20.3
Calibration 2 278 20.7
Calibration 3 278 21.2
100% 279 21.5
90% 240 21.8
80% 209 21.9
70% 184 21.9
60% 167 21.7
50% 154 21.4
40% 141 21.2
30% 124 21.0
20% 107 20.8
10% 89.8 20.8
Active Idle 46.7 20.6

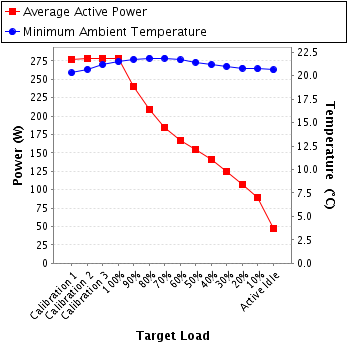

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K308530
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO
Calibration Label: 6995453
Date of Calibration: 6-Jul-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 1.34 2.0 0.995 277 0.4%
Calibration 2 208 300.0 1.34 2.0 0.995 278 0.4%
Calibration 3 208 300.0 1.34 2.0 0.995 278 0.4%
100% 208 300.0 1.34 2.0 0.995 279 0.4%
90% 208 300.0 1.16 2.0 0.994 240 0.4%
80% 208 300.0 1.01 2.0 0.993 209 0.5%
70% 208 300.0 0.893 1.0 0.992 184 0.3%
60% 208 300.0 0.809 1.0 0.990 167 0.4%
50% 208 300.0 0.748 1.0 0.989 154 0.4%
40% 208 300.0 0.683 1.0 0.987 141 0.4%
30% 208 300.0 0.607 1.0 0.983 124 0.4%
20% 208 300.0 0.523 1.0 0.982 107 0.5%
10% 208 300.0 0.442 0.5 0.975 89.8 0.4%
Active Idle 208 300.0 0.236 0.5 0.950 46.7 0.5%

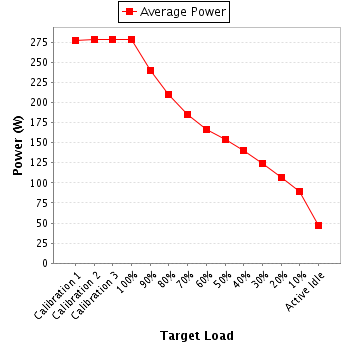

Power details for pwr1
