Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,552,226
ssj_ops@100% per JVM = 888,056
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,558,866
Calibration 2     3,543,304
Calibration 3     3,551,956
ssj_ops@calibrated=3,547,630
100% 100.1% 3,547,630 3,552,226
90% 90.9% 3,192,867 3,224,696
80% 79.9% 2,838,104 2,836,065
70% 70.1% 2,483,341 2,487,278
60% 60.0% 2,128,578 2,128,947
50% 50.0% 1,773,815 1,774,765
40% 39.9% 1,419,052 1,415,765
30% 30.0% 1,064,289 1,063,181
20% 20.0% 709,526 708,551
10% 10.0% 354,763 356,315
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade7.001 901,257
Bobby-Blade7.002 890,081
Bobby-Blade7.003 886,431
Bobby-Blade7.004 874,457
ssj_ops@100% 3,552,226
ssj_ops@100% per JVM 888,056
Graph of per-instance results
JVM 'Bobby-Blade7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     898,516
Calibration 2     891,406
Calibration 3     896,123
ssj_ops@calibrated=893,764
100% 100.8% 893,764 901,257
90% 91.0% 804,388 813,210
80% 79.8% 715,012 713,339
70% 70.1% 625,635 626,853
60% 60.2% 536,259 537,745
50% 49.8% 446,882 444,950
40% 40.1% 357,506 358,065
30% 30.0% 268,129 267,687
20% 19.9% 178,753 178,092
10% 10.1% 89,376 90,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     895,039
Calibration 2     894,730
Calibration 3     894,946
ssj_ops@calibrated=894,838
100% 99.5% 894,838 890,081
90% 90.9% 805,354 813,707
80% 80.1% 715,870 716,334
70% 70.1% 626,386 627,574
60% 60.1% 536,903 537,576
50% 50.1% 447,419 447,886
40% 40.1% 357,935 358,726
30% 29.8% 268,451 267,060
20% 19.9% 178,968 178,380
10% 10.0% 89,484 89,682
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     886,140
Calibration 2     878,356
Calibration 3     882,119
ssj_ops@calibrated=880,237
100% 100.7% 880,237 886,431
90% 90.7% 792,214 798,633
80% 80.0% 704,190 704,122
70% 69.9% 616,166 615,282
60% 59.9% 528,142 527,480
50% 50.2% 440,119 441,893
40% 39.8% 352,095 350,680
30% 30.0% 264,071 263,993
20% 20.1% 176,047 176,802
10% 10.0% 88,024 88,313
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

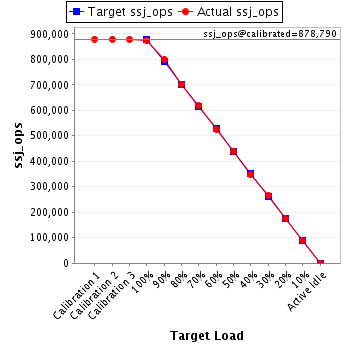

JVM 'Bobby-Blade7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     879,170
Calibration 2     878,812
Calibration 3     878,768
ssj_ops@calibrated=878,790
100% 99.5% 878,790 874,457
90% 90.9% 790,911 799,147
80% 79.9% 703,032 702,270
70% 70.3% 615,153 617,569
60% 59.9% 527,274 526,146
50% 50.1% 439,395 440,035
40% 39.6% 351,516 348,294
30% 30.1% 263,637 264,441
20% 19.9% 175,758 175,278
10% 10.0% 87,879 87,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
