Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,555,651
ssj_ops@100% per JVM = 888,913
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,559,032
Calibration 2     3,552,737
Calibration 3     3,598,028
ssj_ops@calibrated=3,575,383
100% 99.4% 3,575,383 3,555,651
90% 90.7% 3,217,844 3,243,003
80% 79.9% 2,860,306 2,855,888
70% 70.0% 2,502,768 2,503,686
60% 60.0% 2,145,230 2,144,129
50% 50.0% 1,787,691 1,787,301
40% 40.0% 1,430,153 1,431,617
30% 30.1% 1,072,615 1,076,019
20% 20.1% 715,077 717,438
10% 10.0% 357,538 358,470
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade12.001 898,539
Bobby-Blade12.002 889,298
Bobby-Blade12.003 883,253
Bobby-Blade12.004 884,561
ssj_ops@100% 3,555,651
ssj_ops@100% per JVM 888,913

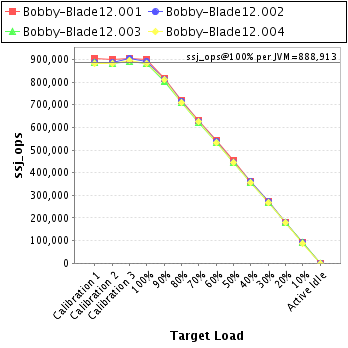

Graph of per-instance results
JVM 'Bobby-Blade12.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     902,460
Calibration 2     901,190
Calibration 3     905,973
ssj_ops@calibrated=903,582
100% 99.4% 903,582 898,539
90% 90.4% 813,224 816,750
80% 79.8% 722,865 721,214
70% 69.8% 632,507 630,395
60% 60.1% 542,149 542,978
50% 50.1% 451,791 452,430
40% 40.0% 361,433 361,425
30% 30.0% 271,075 271,147
20% 20.1% 180,716 181,737
10% 10.0% 90,358 89,997
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade12.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     887,647
Calibration 2     887,338
Calibration 3     903,359
ssj_ops@calibrated=895,348
100% 99.3% 895,348 889,298
90% 90.7% 805,814 812,137
80% 80.0% 716,279 716,483
70% 70.1% 626,744 627,480
60% 60.0% 537,209 537,409
50% 49.6% 447,674 443,885
40% 40.2% 358,139 359,986
30% 30.3% 268,605 270,892
20% 19.9% 179,070 177,997
10% 10.0% 89,535 89,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

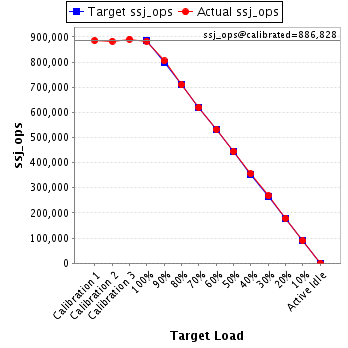

JVM 'Bobby-Blade12.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     885,153
Calibration 2     882,836
Calibration 3     890,819
ssj_ops@calibrated=886,828
100% 99.6% 886,828 883,253
90% 90.7% 798,145 804,126
80% 80.0% 709,462 709,331
70% 69.9% 620,779 619,857
60% 60.0% 532,097 532,388
50% 50.2% 443,414 444,984
40% 40.0% 354,731 355,171
30% 30.2% 266,048 267,527
20% 20.2% 177,366 179,255
10% 10.1% 88,683 89,749
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade12.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     883,772
Calibration 2     881,372
Calibration 3     897,877
ssj_ops@calibrated=889,625
100% 99.4% 889,625 884,561
90% 91.0% 800,662 809,992
80% 79.7% 711,700 708,859
70% 70.4% 622,737 625,953
60% 59.7% 533,775 531,353
50% 50.1% 444,812 446,002
40% 39.9% 355,850 355,036
30% 30.0% 266,887 266,453
20% 20.1% 177,925 178,448
10% 10.0% 88,962 88,847
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
