Huawei Technologies Co., Ltd Fusion Server XH620 V3 ssj_ops@100% = 15,938,684
ssj_ops@100% per Host = 3,984,671
ssj_ops@100% per JVM = 199,234
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 11, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Apr 27, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,111,885
Calibration 2     15,917,904
Calibration 3     15,950,280
ssj_ops@calibrated=15,934,092
100% 100.0% 15,934,092 15,938,684
90% 89.5% 14,340,683 14,262,247
80% 80.9% 12,747,274 12,892,901
70% 70.0% 11,153,865 11,149,796
60% 60.0% 9,560,455 9,564,286
50% 50.0% 7,967,046 7,964,190
40% 40.0% 6,373,637 6,378,951
30% 29.9% 4,780,228 4,770,999
20% 20.0% 3,186,818 3,192,686
10% 10.0% 1,593,409 1,590,602
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 160 320 256 4 80
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Huawei FusionServer X6800
Form Factor: 4U
Power Supply Quantity and Rating (W): 4 x 750
Power Supply Details: Huawei P/N 02131167
Network Switch: Huawei Quidway S5348TP-SI
Network Switch Details: 48-PORT Quidway S5348TP-SI
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: Network switch not measured for Power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server XH620 V3
Form Factor: 4U
CPU Name: Intel Xeon E5-2698 V4
CPU Characteristics: 20-Core, 2.2GHz, 50MB L3 Cache (Intel Turbo Boost Technology up to 3.6GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 40 cores, 2 chips, 20 cores/chip
Hardware Threads: 80 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 50 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2400T ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM100, DIMM110, DIMM120, and DIMM130 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB SATADOM Huawei P/N 06010249
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel i350 Gigabit Ethernet controller Huawei P/N 02311HDL
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx1575m -Xms1575m -Xmn1420m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [F,F0,F00,F000,F0000]
JVM Instances: 20
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.16
Management Firmware Version: 2.02
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
.
Host Instance Summary
Host ssj_ops@100%
WIN-CDV8O73P1TA 3,996,672
WIN-CTFUUKTQN0Q 3,942,516
WIN-LES8ARAV926 3,998,169
WIN-TRAK8E4R9T3 4,001,327
ssj_ops@100% 15,938,684
ssj_ops@100% per Host 3,984,671
ssj_ops@100% per JVM 199,234

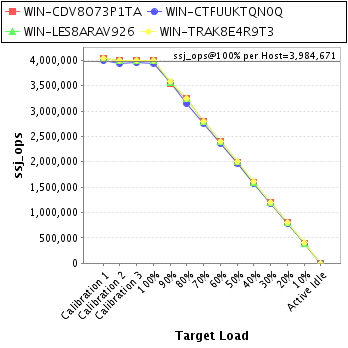

Graph of per-host results

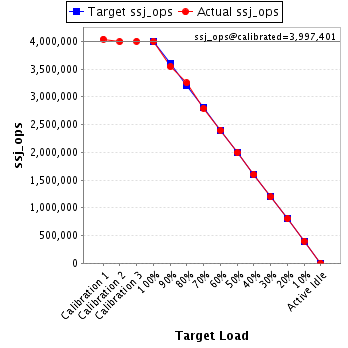

Host 'WIN-CDV8O73P1TA' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,038,637
Calibration 2     3,994,576
Calibration 3     4,000,225
ssj_ops@calibrated=3,997,401
100% 100.0% 3,997,401 3,996,672
90% 88.7% 3,597,661 3,545,380
80% 81.3% 3,197,921 3,251,680
70% 69.9% 2,798,181 2,792,467
60% 60.0% 2,398,441 2,396,535
50% 49.9% 1,998,700 1,994,840
40% 39.9% 1,598,960 1,596,788
30% 29.9% 1,199,220 1,194,537
20% 20.1% 799,480 803,796
10% 10.0% 399,740 398,905
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

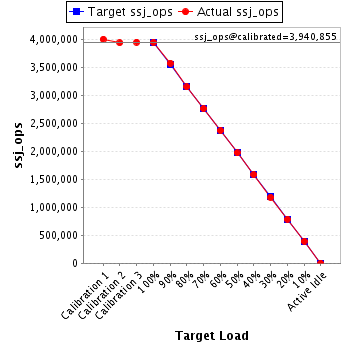

Host 'WIN-CTFUUKTQN0Q' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,998,066
Calibration 2     3,934,180
Calibration 3     3,947,529
ssj_ops@calibrated=3,940,855
100% 100.0% 3,940,855 3,942,516
90% 90.6% 3,546,769 3,569,803
80% 79.8% 3,152,684 3,146,345
70% 70.0% 2,758,598 2,758,693
60% 60.1% 2,364,513 2,367,689
50% 50.0% 1,970,427 1,969,682
40% 40.1% 1,576,342 1,579,385
30% 29.9% 1,182,256 1,178,072
20% 20.0% 788,171 787,155
10% 10.0% 394,085 393,723
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-LES8ARAV926' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,034,032
Calibration 2     3,995,489
Calibration 3     4,001,561
ssj_ops@calibrated=3,998,525
100% 100.0% 3,998,525 3,998,169
90% 89.0% 3,598,672 3,558,804
80% 81.3% 3,198,820 3,249,955
70% 70.0% 2,798,967 2,798,411
60% 60.1% 2,399,115 2,401,302
50% 50.0% 1,999,262 1,999,832
40% 40.0% 1,599,410 1,599,882
30% 30.0% 1,199,557 1,200,591
20% 20.0% 799,705 801,201
10% 10.0% 399,852 398,386
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

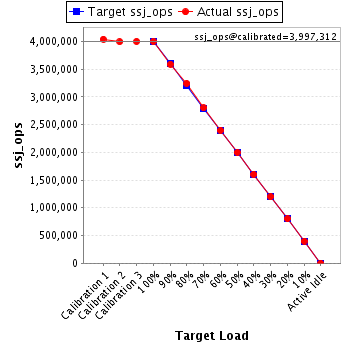

Host 'WIN-TRAK8E4R9T3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,041,150
Calibration 2     3,993,659
Calibration 3     4,000,965
ssj_ops@calibrated=3,997,312
100% 100.1% 3,997,312 4,001,327
90% 89.8% 3,597,581 3,588,261
80% 81.2% 3,197,849 3,244,921
70% 70.1% 2,798,118 2,800,226
60% 60.0% 2,398,387 2,398,760
50% 50.0% 1,998,656 1,999,837
40% 40.1% 1,598,925 1,602,897
30% 30.0% 1,199,194 1,197,800
20% 20.0% 799,462 800,535
10% 10.0% 399,731 399,589
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
