Huawei Technologies Co., Ltd Fusion Server RH2288H V3 ssj_ops@100% = 4,009,213
ssj_ops@100% per JVM = 200,461
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 4, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Apr 27, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,045,079
Calibration 2     4,005,405
Calibration 3     4,009,160
ssj_ops@calibrated=4,007,282
100% 100.0% 4,007,282 4,009,213
90% 90.3% 3,606,554 3,617,885
80% 80.1% 3,205,826 3,210,733
70% 70.1% 2,805,098 2,809,335
60% 60.0% 2,404,369 2,402,562
50% 49.9% 2,003,641 2,001,120
40% 40.0% 1,602,913 1,601,367
30% 29.9% 1,202,185 1,198,168
20% 20.0% 801,456 802,971
10% 10.0% 400,728 401,091
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server RH2288H V3
Form Factor: 2U
CPU Name: Intel Xeon E5-2698 V4
CPU Characteristics: 20-Core, 2.2GHz, 50MB L3 Cache (Intel Turbo Boost Technology up to 3.6GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 40 cores, 2 chips, 20 cores/chip
Hardware Threads: 80 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 50 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2400T ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM100, DIMM110, DIMM120, and DIMM130 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Huawei P/N 02131167
Disk Drive: 1 x 32GB SATADOM Huawei P/N 06010249
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel i350 Gigabit Ethernet controller Huawei P/N 02310YKB
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx1575m -Xms1575m -Xmn1420m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [F,F0,F00,F000,F0000]
JVM Instances: 20
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.16
Management Firmware Version: 2.02
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-CTFUUKTQN0Q.001 200,281
WIN-CTFUUKTQN0Q.002 201,438
WIN-CTFUUKTQN0Q.003 202,200
WIN-CTFUUKTQN0Q.004 201,441
WIN-CTFUUKTQN0Q.005 201,463
WIN-CTFUUKTQN0Q.006 200,096
WIN-CTFUUKTQN0Q.007 197,403
WIN-CTFUUKTQN0Q.008 200,241
WIN-CTFUUKTQN0Q.009 200,083
WIN-CTFUUKTQN0Q.010 198,237
WIN-CTFUUKTQN0Q.011 198,124
WIN-CTFUUKTQN0Q.012 199,930
WIN-CTFUUKTQN0Q.013 200,782
WIN-CTFUUKTQN0Q.014 200,666
WIN-CTFUUKTQN0Q.015 202,648
WIN-CTFUUKTQN0Q.016 204,452
WIN-CTFUUKTQN0Q.017 199,508
WIN-CTFUUKTQN0Q.018 202,015
WIN-CTFUUKTQN0Q.019 200,196
WIN-CTFUUKTQN0Q.020 198,010
ssj_ops@100% 4,009,213
ssj_ops@100% per JVM 200,461

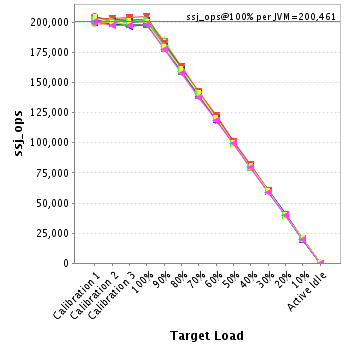

Graph of per-instance results
JVM 'WIN-CTFUUKTQN0Q.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,019
Calibration 2     201,832
Calibration 3     202,894
ssj_ops@calibrated=202,363
100% 99.0% 202,363 200,281
90% 90.9% 182,127 183,852
80% 79.8% 161,891 161,399
70% 70.4% 141,654 142,452
60% 59.8% 121,418 121,101
50% 49.9% 101,182 101,034
40% 40.1% 80,945 81,092
30% 29.8% 60,709 60,271
20% 19.7% 40,473 39,952
10% 10.0% 20,236 20,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,503
Calibration 2     199,712
Calibration 3     200,926
ssj_ops@calibrated=200,319
100% 100.6% 200,319 201,438
90% 91.6% 180,287 183,572
80% 80.0% 160,255 160,334
70% 70.9% 140,223 142,087
60% 59.2% 120,191 118,569
50% 49.8% 100,160 99,732
40% 39.5% 80,128 79,172
30% 30.0% 60,096 60,084
20% 19.9% 40,064 39,824
10% 10.0% 20,032 20,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,807
Calibration 2     202,387
Calibration 3     202,699
ssj_ops@calibrated=202,543
100% 99.8% 202,543 202,200
90% 91.3% 182,289 184,989
80% 80.1% 162,034 162,240
70% 69.4% 141,780 140,616
60% 59.9% 121,526 121,275
50% 49.9% 101,272 101,121
40% 40.1% 81,017 81,283
30% 29.8% 60,763 60,266
20% 20.1% 40,509 40,706
10% 10.1% 20,254 20,359
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,731
Calibration 2     200,876
Calibration 3     201,317
ssj_ops@calibrated=201,096
100% 100.2% 201,096 201,441
90% 91.2% 180,987 183,348
80% 79.8% 160,877 160,524
70% 70.3% 140,767 141,355
60% 60.2% 120,658 120,960
50% 49.8% 100,548 100,061
40% 39.9% 80,438 80,234
30% 30.2% 60,329 60,684
20% 19.9% 40,219 39,966
10% 10.3% 20,110 20,810
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,981
Calibration 2     201,076
Calibration 3     201,138
ssj_ops@calibrated=201,107
100% 100.2% 201,107 201,463
90% 91.1% 180,996 183,201
80% 80.2% 160,885 161,332
70% 69.7% 140,775 140,140
60% 59.9% 120,664 120,379
50% 49.7% 100,553 99,910
40% 40.1% 80,443 80,675
30% 29.8% 60,332 60,028
20% 20.0% 40,221 40,124
10% 10.0% 20,111 20,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

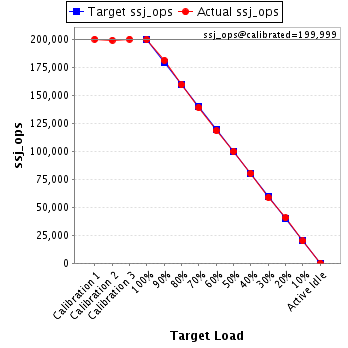

JVM 'WIN-CTFUUKTQN0Q.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,464
Calibration 2     199,490
Calibration 3     200,508
ssj_ops@calibrated=199,999
100% 100.0% 199,999 200,096
90% 90.8% 179,999 181,527
80% 79.8% 159,999 159,666
70% 69.6% 139,999 139,202
60% 59.3% 119,999 118,605
50% 50.0% 100,000 100,082
40% 40.2% 80,000 80,366
30% 29.4% 60,000 58,866
20% 20.3% 40,000 40,585
10% 10.0% 20,000 19,927
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

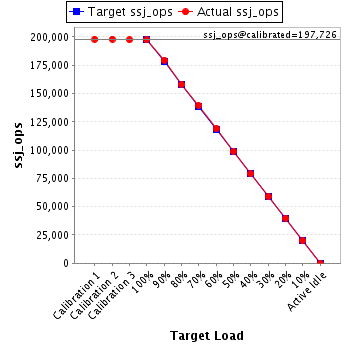

JVM 'WIN-CTFUUKTQN0Q.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,958
Calibration 2     198,045
Calibration 3     197,407
ssj_ops@calibrated=197,726
100% 99.8% 197,726 197,403
90% 90.8% 177,953 179,559
80% 80.0% 158,181 158,168
70% 70.5% 138,408 139,492
60% 60.1% 118,636 118,879
50% 50.0% 98,863 98,812
40% 40.0% 79,090 79,000
30% 29.9% 59,318 59,041
20% 20.2% 39,545 39,898
10% 10.1% 19,773 19,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,584
Calibration 2     199,593
Calibration 3     200,052
ssj_ops@calibrated=199,822
100% 100.2% 199,822 200,241
90% 90.9% 179,840 181,563
80% 80.2% 159,858 160,219
70% 69.5% 139,876 138,922
60% 60.3% 119,893 120,439
50% 50.3% 99,911 100,550
40% 39.6% 79,929 79,176
30% 30.1% 59,947 60,173
20% 20.1% 39,964 40,117
10% 10.1% 19,982 20,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,813
Calibration 2     200,518
Calibration 3     199,514
ssj_ops@calibrated=200,016
100% 100.0% 200,016 200,083
90% 90.8% 180,014 181,657
80% 79.9% 160,013 159,821
70% 69.5% 140,011 139,034
60% 59.7% 120,010 119,443
50% 50.2% 100,008 100,328
40% 39.8% 80,006 79,645
30% 30.0% 60,005 60,028
20% 20.1% 40,003 40,151
10% 10.0% 20,002 20,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,931
Calibration 2     199,191
Calibration 3     196,964
ssj_ops@calibrated=198,078
100% 100.1% 198,078 198,237
90% 90.9% 178,270 180,028
80% 80.2% 158,462 158,948
70% 71.0% 138,655 140,541
60% 60.0% 118,847 118,909
50% 50.2% 99,039 99,529
40% 40.6% 79,231 80,330
30% 29.8% 59,423 58,967
20% 20.0% 39,616 39,608
10% 9.9% 19,808 19,622
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,383
Calibration 2     199,171
Calibration 3     198,517
ssj_ops@calibrated=198,844
100% 99.6% 198,844 198,124
90% 89.5% 178,960 177,937
80% 80.1% 159,075 159,275
70% 70.0% 139,191 139,107
60% 60.2% 119,306 119,784
50% 50.0% 99,422 99,489
40% 39.9% 79,538 79,246
30% 29.8% 59,653 59,301
20% 19.9% 39,769 39,566
10% 9.8% 19,884 19,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,114
Calibration 2     199,676
Calibration 3     199,716
ssj_ops@calibrated=199,696
100% 100.1% 199,696 199,930
90% 89.1% 179,726 177,920
80% 80.4% 159,757 160,462
70% 70.6% 139,787 140,912
60% 60.7% 119,817 121,149
50% 49.9% 99,848 99,597
40% 39.8% 79,878 79,517
30% 30.0% 59,909 59,993
20% 20.3% 39,939 40,447
10% 10.1% 19,970 20,185
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,251
Calibration 2     200,160
Calibration 3     200,480
ssj_ops@calibrated=200,320
100% 100.2% 200,320 200,782
90% 89.8% 180,288 179,794
80% 80.7% 160,256 161,757
70% 70.2% 140,224 140,680
60% 59.4% 120,192 118,986
50% 50.1% 100,160 100,453
40% 40.0% 80,128 80,193
30% 29.7% 60,096 59,477
20% 20.2% 40,064 40,471
10% 9.9% 20,032 19,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,518
Calibration 2     201,025
Calibration 3     201,422
ssj_ops@calibrated=201,223
100% 99.7% 201,223 200,666
90% 89.6% 181,101 180,271
80% 80.3% 160,979 161,566
70% 70.4% 140,856 141,745
60% 60.3% 120,734 121,393
50% 49.9% 100,612 100,371
40% 40.0% 80,489 80,413
30% 29.8% 60,367 60,045
20% 20.1% 40,245 40,429
10% 9.8% 20,122 19,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,817
Calibration 2     202,234
Calibration 3     201,581
ssj_ops@calibrated=201,907
100% 100.4% 201,907 202,648
90% 89.9% 181,717 181,425
80% 80.3% 161,526 162,135
70% 69.5% 141,335 140,370
60% 60.2% 121,144 121,449
50% 49.9% 100,954 100,745
40% 39.6% 80,763 80,006
30% 30.1% 60,572 60,723
20% 19.9% 40,381 40,240
10% 10.3% 20,191 20,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,120
Calibration 2     202,822
Calibration 3     204,353
ssj_ops@calibrated=203,587
100% 100.4% 203,587 204,452
90% 89.6% 183,228 182,439
80% 80.0% 162,870 162,936
70% 69.8% 142,511 142,190
60% 60.2% 122,152 122,565
50% 49.7% 101,794 101,243
40% 40.3% 81,435 81,949
30% 29.8% 61,076 60,755
20% 20.0% 40,717 40,624
10% 10.1% 20,359 20,498
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,784
Calibration 2     200,216
Calibration 3     200,281
ssj_ops@calibrated=200,249
100% 99.6% 200,249 199,508
90% 89.0% 180,224 178,286
80% 80.1% 160,199 160,399
70% 69.9% 140,174 140,015
60% 59.7% 120,149 119,501
50% 49.8% 100,124 99,779
40% 39.7% 80,099 79,558
30% 30.0% 60,075 60,154
20% 20.4% 40,050 40,934
10% 9.7% 20,025 19,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,513
Calibration 2     201,228
Calibration 3     200,720
ssj_ops@calibrated=200,974
100% 100.5% 200,974 202,015
90% 89.8% 180,877 180,388
80% 80.1% 160,779 161,062
70% 70.7% 140,682 142,073
60% 59.8% 120,584 120,177
50% 49.4% 100,487 99,247
40% 39.5% 80,390 79,314
30% 30.2% 60,292 60,663
20% 19.9% 40,195 39,951
10% 10.1% 20,097 20,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,824
Calibration 2     198,688
Calibration 3     200,913
ssj_ops@calibrated=199,801
100% 100.2% 199,801 200,196
90% 89.5% 179,821 178,912
80% 80.5% 159,840 160,757
70% 70.5% 139,860 140,884
60% 60.2% 119,880 120,316
50% 49.7% 99,900 99,238
40% 40.3% 79,920 80,420
30% 30.0% 59,940 59,854
20% 19.8% 39,960 39,527
10% 10.1% 19,980 20,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CTFUUKTQN0Q.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,962
Calibration 2     197,466
Calibration 3     197,758
ssj_ops@calibrated=197,612
100% 100.2% 197,612 198,010
90% 89.7% 177,851 177,216
80% 79.8% 158,090 157,733
70% 69.6% 138,328 137,517
60% 60.1% 118,567 118,683
50% 50.5% 98,806 99,800
40% 40.4% 79,045 79,778
30% 29.8% 59,284 58,795
20% 20.2% 39,522 39,852
10% 10.0% 19,761 19,666
Active Idle   0 0

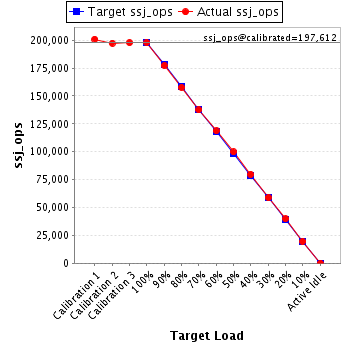

Graph of results
See the JVM Instance Performance Report for additional details.
