SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2016 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R730 (Intel Xeon E5-2699 v4 2.20 GHz) | SPECpower_ssj2008 = 10,802 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Mar 28, 2016 |
| Hardware Availability: | Mar-2016 | Software Availability: | Apr-2015 | Publication: | Apr 15, 2016 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

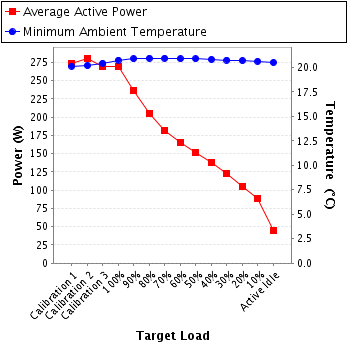

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 274 | 20.1 |
| Calibration 2 | 281 | 20.2 |
| Calibration 3 | 269 | 20.4 |
| 100% | 269 | 20.8 |
| 90% | 236 | 20.9 |
| 80% | 205 | 20.9 |
| 70% | 182 | 20.9 |
| 60% | 166 | 20.9 |
| 50% | 152 | 20.9 |
| 40% | 138 | 20.8 |
| 30% | 122 | 20.8 |
| 20% | 105 | 20.7 |
| 10% | 88.4 | 20.6 |
| Active Idle | 44.9 | 20.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91K308530 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 6995453 |
| Date of Calibration: | 6-Jul-2015 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.0-efc0c004-20160120 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.32 | 2.0 | 0.995 | 274 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.36 | 2.0 | 0.995 | 281 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.30 | 2.0 | 0.994 | 269 | 0.4% |
| 100% | 208 | 300.0 | 1.30 | 2.0 | 0.994 | 269 | 0.4% |
| 90% | 208 | 300.0 | 1.14 | 2.0 | 0.994 | 236 | 0.4% |
| 80% | 208 | 300.0 | 0.990 | 2.0 | 0.993 | 205 | 0.5% |
| 70% | 208 | 300.0 | 0.884 | 1.0 | 0.991 | 182 | 0.3% |
| 60% | 208 | 300.0 | 0.804 | 1.0 | 0.989 | 166 | 0.4% |
| 50% | 208 | 300.0 | 0.740 | 1.0 | 0.988 | 152 | 0.4% |
| 40% | 208 | 300.0 | 0.674 | 1.0 | 0.985 | 138 | 0.4% |
| 30% | 208 | 300.0 | 0.598 | 1.0 | 0.982 | 122 | 0.4% |
| 20% | 208 | 300.0 | 0.516 | 0.5 | 0.979 | 105 | 0.3% |
| 10% | 208 | 300.0 | 0.437 | 0.5 | 0.971 | 88.4 | 0.4% |
| Active Idle | 208 | 300.0 | 0.231 | 0.5 | 0.934 | 44.9 | 0.6% |
