Hewlett Packard Enterprise ProLiant DL360 Gen9 ssj_ops@100% = 3,159,419
ssj_ops@100% per JVM = 87,762
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Sep 8, 2015
Hardware Availability: Nov-2015 Software Availability: Jun-2013 Publication: Jan 7, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,971,239
Calibration 2     3,155,191
Calibration 3     3,165,493
ssj_ops@calibrated=3,160,342
100% 100.0% 3,160,342 3,159,419
90% 90.2% 2,844,308 2,851,258
80% 79.9% 2,528,273 2,525,861
70% 70.0% 2,212,239 2,212,076
60% 60.0% 1,896,205 1,894,880
50% 50.0% 1,580,171 1,579,461
40% 40.1% 1,264,137 1,266,259
30% 30.1% 948,103 949,976
20% 19.9% 632,068 629,838
10% 10.0% 316,034 315,004
Active Idle   0 0

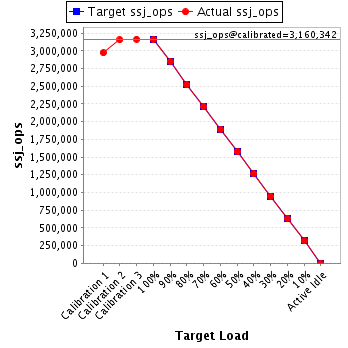

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18-Core, 2.30 GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8182 MB
Memory Details: 8 GB 2Rx8 PC4-2133P; slots 1, 4, 9 and 12 populated on each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HP 800W Flex Slot Titanium Hot Plug Power Supply Kit (720482-B21)
Disk Drive: 1 x 400GB SSD SATA (691842-003)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server Enterprise 2008 R2 SP1
OS Version: Version 6.1 (Build 7601)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmx975m -Xms975m -Xmn825m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgc:preferredHeapBase=0x80000000 -Xgcthreads2
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x3000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: P89 1.50 07/20/2015
Management Firmware Version: 2.30 pass 22 Jun 25 2015
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings

System Configuration -> BIOS/Platform Configuration (RBSU)
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SUT-02.001 88,562
SUT-02.002 88,482
SUT-02.003 88,208
SUT-02.004 88,582
SUT-02.005 83,142
SUT-02.006 88,365
SUT-02.007 87,812
SUT-02.008 88,080
SUT-02.009 89,719
SUT-02.010 85,644
SUT-02.011 85,723
SUT-02.012 88,127
SUT-02.013 87,754
SUT-02.014 89,143
SUT-02.015 85,635
SUT-02.016 88,777
SUT-02.017 87,162
SUT-02.018 88,943
SUT-02.019 86,664
SUT-02.020 88,710
SUT-02.021 88,625
SUT-02.022 89,160
SUT-02.023 83,392
SUT-02.024 87,918
SUT-02.025 87,351
SUT-02.026 88,057
SUT-02.027 89,046
SUT-02.028 86,403
SUT-02.029 86,150
SUT-02.030 88,744
SUT-02.031 88,510
SUT-02.032 87,904
SUT-02.033 88,079
SUT-02.034 89,417
SUT-02.035 88,026
SUT-02.036 89,402
ssj_ops@100% 3,159,419
ssj_ops@100% per JVM 87,762
Graph of per-instance results
JVM 'SUT-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,275
Calibration 2     88,176
Calibration 3     88,762
ssj_ops@calibrated=88,469
100% 100.1% 88,469 88,562
90% 90.1% 79,622 79,728
80% 79.2% 70,775 70,072
70% 69.2% 61,928 61,179
60% 60.1% 53,081 53,164
50% 49.9% 44,235 44,183
40% 40.5% 35,388 35,848
30% 29.7% 26,541 26,244
20% 19.7% 17,694 17,388
10% 10.4% 8,847 9,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,494
Calibration 2     88,352
Calibration 3     88,009
ssj_ops@calibrated=88,180
100% 100.3% 88,180 88,482
90% 90.2% 79,362 79,577
80% 79.4% 70,544 69,984
70% 70.0% 61,726 61,718
60% 60.3% 52,908 53,137
50% 50.0% 44,090 44,065
40% 39.7% 35,272 35,006
30% 29.8% 26,454 26,296
20% 19.9% 17,636 17,537
10% 10.1% 8,818 8,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,275
Calibration 2     88,100
Calibration 3     88,297
ssj_ops@calibrated=88,198
100% 100.0% 88,198 88,208
90% 90.3% 79,378 79,669
80% 80.2% 70,559 70,748
70% 71.3% 61,739 62,878
60% 60.2% 52,919 53,117
50% 50.3% 44,099 44,331
40% 40.2% 35,279 35,432
30% 29.9% 26,459 26,369
20% 20.1% 17,640 17,716
10% 10.1% 8,820 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,101
Calibration 2     88,184
Calibration 3     89,082
ssj_ops@calibrated=88,633
100% 99.9% 88,633 88,582
90% 90.5% 79,770 80,173
80% 81.2% 70,907 71,934
70% 70.3% 62,043 62,325
60% 59.9% 53,180 53,064
50% 50.8% 44,317 45,056
40% 39.7% 35,453 35,218
30% 29.5% 26,590 26,150
20% 20.2% 17,727 17,891
10% 10.1% 8,863 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,734
Calibration 2     84,130
Calibration 3     83,718
ssj_ops@calibrated=83,924
100% 99.1% 83,924 83,142
90% 89.4% 75,531 75,004
80% 80.0% 67,139 67,131
70% 70.1% 58,747 58,832
60% 60.0% 50,354 50,388
50% 50.3% 41,962 42,222
40% 40.9% 33,570 34,312
30% 29.9% 25,177 25,078
20% 20.1% 16,785 16,870
10% 10.1% 8,392 8,508
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,226
Calibration 2     88,436
Calibration 3     88,504
ssj_ops@calibrated=88,470
100% 99.9% 88,470 88,365
90% 89.8% 79,623 79,419
80% 80.0% 70,776 70,793
70% 70.0% 61,929 61,968
60% 59.7% 53,082 52,800
50% 50.7% 44,235 44,823
40% 39.6% 35,388 35,012
30% 30.1% 26,541 26,607
20% 19.9% 17,694 17,567
10% 9.7% 8,847 8,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,221
Calibration 2     87,382
Calibration 3     87,684
ssj_ops@calibrated=87,533
100% 100.3% 87,533 87,812
90% 89.8% 78,780 78,580
80% 81.3% 70,027 71,158
70% 68.6% 61,273 60,023
60% 59.9% 52,520 52,455
50% 50.1% 43,767 43,818
40% 40.4% 35,013 35,371
30% 29.7% 26,260 25,994
20% 20.2% 17,507 17,686
10% 10.1% 8,753 8,884
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,638
Calibration 2     88,088
Calibration 3     87,683
ssj_ops@calibrated=87,885
100% 100.2% 87,885 88,080
90% 90.0% 79,097 79,129
80% 79.9% 70,308 70,224
70% 69.5% 61,520 61,041
60% 59.4% 52,731 52,187
50% 49.1% 43,943 43,144
40% 40.7% 35,154 35,733
30% 29.3% 26,366 25,774
20% 20.3% 17,577 17,830
10% 9.8% 8,789 8,574
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,049
Calibration 2     89,930
Calibration 3     89,905
ssj_ops@calibrated=89,918
100% 99.8% 89,918 89,719
90% 90.9% 80,926 81,721
80% 80.6% 71,934 72,507
70% 70.6% 62,942 63,507
60% 59.6% 53,951 53,561
50% 49.7% 44,959 44,648
40% 39.3% 35,967 35,362
30% 30.5% 26,975 27,408
20% 20.1% 17,984 18,080
10% 9.7% 8,992 8,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,756
Calibration 2     85,886
Calibration 3     85,466
ssj_ops@calibrated=85,676
100% 100.0% 85,676 85,644
90% 91.4% 77,109 78,335
80% 80.1% 68,541 68,663
70% 70.0% 59,973 59,936
60% 60.8% 51,406 52,103
50% 50.1% 42,838 42,887
40% 40.8% 34,270 34,946
30% 30.3% 25,703 25,919
20% 19.8% 17,135 16,954
10% 10.4% 8,568 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,996
Calibration 2     85,405
Calibration 3     85,648
ssj_ops@calibrated=85,526
100% 100.2% 85,526 85,723
90% 89.1% 76,974 76,216
80% 80.3% 68,421 68,715
70% 69.8% 59,868 59,729
60% 60.4% 51,316 51,681
50% 49.9% 42,763 42,690
40% 39.6% 34,210 33,906
30% 29.9% 25,658 25,534
20% 20.1% 17,105 17,163
10% 9.9% 8,553 8,486
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,795
Calibration 2     88,297
Calibration 3     88,697
ssj_ops@calibrated=88,497
100% 99.6% 88,497 88,127
90% 89.5% 79,647 79,221
80% 79.2% 70,798 70,127
70% 69.4% 61,948 61,388
60% 60.2% 53,098 53,281
50% 49.6% 44,248 43,897
40% 40.5% 35,399 35,844
30% 29.4% 26,549 26,058
20% 19.8% 17,699 17,496
10% 10.0% 8,850 8,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,956
Calibration 2     87,374
Calibration 3     88,279
ssj_ops@calibrated=87,827
100% 99.9% 87,827 87,754
90% 90.0% 79,044 79,050
80% 80.3% 70,261 70,531
70% 70.0% 61,479 61,462
60% 59.8% 52,696 52,502
50% 50.0% 43,913 43,940
40% 39.9% 35,131 35,056
30% 30.5% 26,348 26,771
20% 19.6% 17,565 17,245
10% 9.7% 8,783 8,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,542
Calibration 2     88,616
Calibration 3     89,157
ssj_ops@calibrated=88,886
100% 100.3% 88,886 89,143
90% 88.7% 79,998 78,876
80% 79.5% 71,109 70,653
70% 70.4% 62,220 62,534
60% 60.9% 53,332 54,099
50% 49.7% 44,443 44,160
40% 40.3% 35,555 35,778
30% 30.0% 26,666 26,668
20% 19.7% 17,777 17,512
10% 10.0% 8,889 8,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,520
Calibration 2     85,563
Calibration 3     86,490
ssj_ops@calibrated=86,026
100% 99.5% 86,026 85,635
90% 91.3% 77,424 78,522
80% 79.4% 68,821 68,339
70% 70.8% 60,219 60,871
60% 59.6% 51,616 51,284
50% 49.9% 43,013 42,953
40% 39.6% 34,411 34,052
30% 30.5% 25,808 26,253
20% 20.3% 17,205 17,454
10% 10.3% 8,603 8,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,846
Calibration 2     88,666
Calibration 3     89,275
ssj_ops@calibrated=88,971
100% 99.8% 88,971 88,777
90% 90.7% 80,073 80,668
80% 79.7% 71,176 70,919
70% 70.4% 62,279 62,604
60% 60.4% 53,382 53,744
50% 49.6% 44,485 44,168
40% 40.9% 35,588 36,376
30% 30.3% 26,691 26,997
20% 20.3% 17,794 18,053
10% 9.9% 8,897 8,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,806
Calibration 2     87,150
Calibration 3     87,030
ssj_ops@calibrated=87,090
100% 100.1% 87,090 87,162
90% 90.8% 78,381 79,062
80% 79.4% 69,672 69,176
70% 70.8% 60,963 61,682
60% 60.8% 52,254 52,925
50% 49.1% 43,545 42,735
40% 40.1% 34,836 34,927
30% 30.2% 26,127 26,313
20% 20.3% 17,418 17,637
10% 9.9% 8,709 8,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,843
Calibration 2     89,083
Calibration 3     89,061
ssj_ops@calibrated=89,072
100% 99.9% 89,072 88,943
90% 90.6% 80,165 80,657
80% 79.5% 71,258 70,802
70% 69.5% 62,351 61,916
60% 58.5% 53,443 52,142
50% 50.4% 44,536 44,877
40% 39.8% 35,629 35,441
30% 30.0% 26,722 26,698
20% 20.3% 17,814 18,050
10% 9.7% 8,907 8,600
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,110
Calibration 2     86,949
Calibration 3     87,057
ssj_ops@calibrated=87,003
100% 99.6% 87,003 86,664
90% 89.8% 78,303 78,150
80% 80.5% 69,603 70,065
70% 69.9% 60,902 60,813
60% 59.8% 52,202 52,057
50% 50.0% 43,502 43,528
40% 40.8% 34,801 35,468
30% 30.2% 26,101 26,283
20% 20.2% 17,401 17,582
10% 10.2% 8,700 8,846
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,478
Calibration 2     87,827
Calibration 3     89,177
ssj_ops@calibrated=88,502
100% 100.2% 88,502 88,710
90% 90.0% 79,652 79,630
80% 80.4% 70,802 71,179
70% 69.6% 61,951 61,611
60% 59.9% 53,101 52,976
50% 49.9% 44,251 44,143
40% 40.1% 35,401 35,510
30% 30.6% 26,551 27,094
20% 20.0% 17,700 17,721
10% 9.6% 8,850 8,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,435
Calibration 2     88,018
Calibration 3     88,196
ssj_ops@calibrated=88,107
100% 100.6% 88,107 88,625
90% 90.4% 79,297 79,653
80% 78.3% 70,486 68,957
70% 69.7% 61,675 61,445
60% 60.2% 52,864 53,052
50% 50.2% 44,054 44,244
40% 39.6% 35,243 34,913
30% 30.6% 26,432 26,994
20% 19.3% 17,621 16,972
10% 10.2% 8,811 8,945
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,745
Calibration 2     89,316
Calibration 3     89,578
ssj_ops@calibrated=89,447
100% 99.7% 89,447 89,160
90% 91.3% 80,502 81,684
80% 80.1% 71,557 71,644
70% 70.5% 62,613 63,103
60% 60.0% 53,668 53,638
50% 49.5% 44,723 44,283
40% 40.3% 35,779 36,086
30% 30.4% 26,834 27,216
20% 19.7% 17,889 17,617
10% 10.0% 8,945 8,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,540
Calibration 2     83,432
Calibration 3     82,880
ssj_ops@calibrated=83,156
100% 100.3% 83,156 83,392
90% 90.7% 74,840 75,404
80% 80.4% 66,525 66,856
70% 71.4% 58,209 59,350
60% 59.4% 49,894 49,421
50% 49.4% 41,578 41,056
40% 39.6% 33,262 32,936
30% 30.2% 24,947 25,139
20% 20.2% 16,631 16,804
10% 9.7% 8,316 8,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,572
Calibration 2     87,949
Calibration 3     88,065
ssj_ops@calibrated=88,007
100% 99.9% 88,007 87,918
90% 90.3% 79,206 79,471
80% 79.6% 70,405 70,086
70% 70.3% 61,605 61,828
60% 59.3% 52,804 52,165
50% 49.6% 44,003 43,630
40% 40.1% 35,203 35,319
30% 30.6% 26,402 26,922
20% 20.1% 17,601 17,721
10% 10.1% 8,801 8,857
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,212
Calibration 2     87,769
Calibration 3     87,829
ssj_ops@calibrated=87,799
100% 99.5% 87,799 87,351
90% 89.7% 79,019 78,792
80% 80.1% 70,239 70,341
70% 69.5% 61,459 61,029
60% 59.7% 52,679 52,390
50% 49.9% 43,899 43,786
40% 40.1% 35,120 35,191
30% 30.3% 26,340 26,599
20% 19.9% 17,560 17,465
10% 10.0% 8,780 8,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,940
Calibration 2     88,058
Calibration 3     88,627
ssj_ops@calibrated=88,342
100% 99.7% 88,342 88,057
90% 90.3% 79,508 79,789
80% 79.7% 70,674 70,423
70% 70.2% 61,840 61,997
60% 60.1% 53,005 53,114
50% 50.9% 44,171 44,937
40% 40.2% 35,337 35,505
30% 30.2% 26,503 26,641
20% 20.5% 17,668 18,078
10% 10.2% 8,834 8,982
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,245
Calibration 2     89,603
Calibration 3     89,483
ssj_ops@calibrated=89,543
100% 99.4% 89,543 89,046
90% 90.4% 80,589 80,958
80% 80.4% 71,635 71,996
70% 70.6% 62,680 63,232
60% 60.3% 53,726 54,023
50% 50.2% 44,772 44,962
40% 39.0% 35,817 34,966
30% 30.1% 26,863 26,990
20% 19.3% 17,909 17,279
10% 10.0% 8,954 8,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,421
Calibration 2     86,086
Calibration 3     86,634
ssj_ops@calibrated=86,360
100% 100.0% 86,360 86,403
90% 91.0% 77,724 78,615
80% 81.0% 69,088 69,946
70% 70.0% 60,452 60,462
60% 61.1% 51,816 52,763
50% 49.9% 43,180 43,113
40% 39.6% 34,544 34,235
30% 29.8% 25,908 25,709
20% 19.9% 17,272 17,184
10% 10.1% 8,636 8,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,680
Calibration 2     86,042
Calibration 3     86,763
ssj_ops@calibrated=86,402
100% 99.7% 86,402 86,150
90% 90.0% 77,762 77,783
80% 79.5% 69,122 68,651
70% 69.9% 60,482 60,415
60% 60.7% 51,841 52,424
50% 50.1% 43,201 43,283
40% 39.7% 34,561 34,301
30% 29.8% 25,921 25,743
20% 19.4% 17,280 16,757
10% 9.6% 8,640 8,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,934
Calibration 2     88,379
Calibration 3     88,984
ssj_ops@calibrated=88,682
100% 100.1% 88,682 88,744
90% 89.0% 79,813 78,920
80% 80.3% 70,945 71,246
70% 69.8% 62,077 61,886
60% 59.2% 53,209 52,525
50% 49.8% 44,341 44,184
40% 39.7% 35,473 35,205
30% 30.0% 26,604 26,634
20% 20.2% 17,736 17,895
10% 9.9% 8,868 8,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,455
Calibration 2     88,294
Calibration 3     88,666
ssj_ops@calibrated=88,480
100% 100.0% 88,480 88,510
90% 89.3% 79,632 79,037
80% 79.6% 70,784 70,401
70% 69.4% 61,936 61,372
60% 60.0% 53,088 53,052
50% 50.5% 44,240 44,671
40% 40.0% 35,392 35,420
30% 29.4% 26,544 25,971
20% 19.9% 17,696 17,641
10% 9.5% 8,848 8,433
Active Idle   0 0

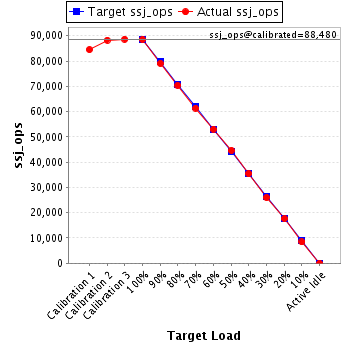

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,468
Calibration 2     88,161
Calibration 3     87,924
ssj_ops@calibrated=88,043
100% 99.8% 88,043 87,904
90% 91.0% 79,238 80,153
80% 79.9% 70,434 70,380
70% 70.2% 61,630 61,773
60% 60.1% 52,826 52,917
50% 50.1% 44,021 44,072
40% 40.0% 35,217 35,249
30% 29.5% 26,413 25,969
20% 19.6% 17,609 17,299
10% 10.0% 8,804 8,770
Active Idle   0 0

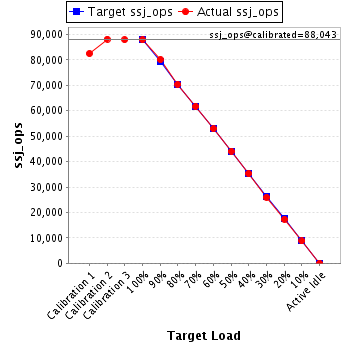

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,778
Calibration 2     87,495
Calibration 3     87,626
ssj_ops@calibrated=87,560
100% 100.6% 87,560 88,079
90% 90.3% 78,804 79,045
80% 80.0% 70,048 70,036
70% 69.2% 61,292 60,602
60% 59.0% 52,536 51,699
50% 49.9% 43,780 43,653
40% 39.8% 35,024 34,871
30% 30.4% 26,268 26,608
20% 19.7% 17,512 17,257
10% 9.8% 8,756 8,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,850
Calibration 2     89,163
Calibration 3     89,929
ssj_ops@calibrated=89,546
100% 99.9% 89,546 89,417
90% 89.8% 80,592 80,409
80% 78.3% 71,637 70,101
70% 69.5% 62,682 62,276
60% 60.6% 53,728 54,249
50% 50.4% 44,773 45,093
40% 40.0% 35,819 35,840
30% 30.2% 26,864 27,024
20% 19.8% 17,909 17,707
10% 9.8% 8,955 8,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,542
Calibration 2     87,492
Calibration 3     88,138
ssj_ops@calibrated=87,815
100% 100.2% 87,815 88,026
90% 90.2% 79,033 79,242
80% 78.9% 70,252 69,274
70% 70.1% 61,470 61,555
60% 60.0% 52,689 52,699
50% 49.9% 43,907 43,790
40% 40.4% 35,126 35,440
30% 30.1% 26,344 26,394
20% 19.9% 17,563 17,432
10% 10.2% 8,781 8,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SUT-02.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,762
Calibration 2     88,338
Calibration 3     89,192
ssj_ops@calibrated=88,765
100% 100.7% 88,765 89,402
90% 91.2% 79,888 80,913
80% 80.9% 71,012 71,805
70% 69.6% 62,135 61,738
60% 58.7% 53,259 52,086
50% 50.1% 44,382 44,436
40% 40.8% 35,506 36,182
30% 30.3% 26,629 26,914
20% 19.5% 17,753 17,300
10% 9.9% 8,876 8,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
