Hewlett Packard Enterprise ProLiant DL360 Gen9 SPECpower_ssj2008 = 10,118 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Sep 8, 2015
Hardware Availability: Nov-2015 Software Availability: Jun-2013 Publication: Jan 7, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 274 21.3
Calibration 2 276 21.4
Calibration 3 277 21.4
100% 276 21.4
90% 248 21.4
80% 218 21.3
70% 188 21.2
60% 162 21.2
50% 145 21.2
40% 133 21.3
30% 118 21.2
20% 101 21.2
10% 83.7 21.2
Active Idle 45.0 21.1

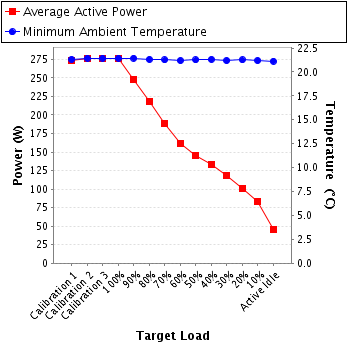

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB3024
Connectivity: GPIB via NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: HP Metrology
Calibration Label: 705419
Date of Calibration: 16-Jun-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-4db18c59-20150211
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 1.31 2.0 0.990 274 0.4%
Calibration 2 211 300.0 1.32 2.0 0.990 276 0.4%
Calibration 3 212 300.0 1.32 2.0 0.990 277 0.4%
100% 211 300.0 1.32 2.0 0.990 276 0.4%
90% 212 300.0 1.19 2.0 0.989 248 0.4%
80% 212 300.0 1.04 2.0 0.989 218 0.5%
70% 212 300.0 0.898 1.0 0.988 188 0.3%
60% 212 300.0 0.774 1.0 0.986 162 0.4%
50% 212 300.0 0.697 1.0 0.985 145 0.4%
40% 212 300.0 0.638 1.0 0.983 133 0.4%
30% 211 300.0 0.570 0.5 0.980 118 0.4%
20% 211 300.0 0.491 0.5 0.978 101 0.3%
10% 211 300.0 0.407 0.5 0.973 83.7 0.4%
Active Idle 211 300.0 0.226 0.5 0.942 45.0 0.6%

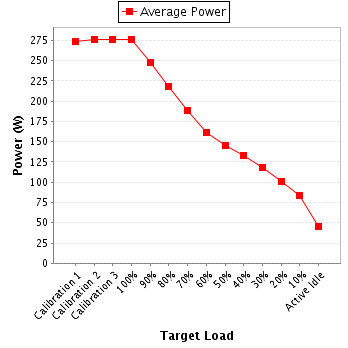

Power details for pwr1
