Fujitsu FUJITSU Server PRIMERGY TX1320 M2 SPECpower_ssj2008 = 8,944 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Nov 6, 2015
Hardware Availability: Feb-2016 Software Availability: Jan-2015 Publication: Nov 25, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 44.6 22.1
Calibration 2 44.6 21.9
Calibration 3 44.6 21.4
100% 44.7 21.4
90% 40.2 21.6
80% 35.8 21.9
70% 31.4 22.1
60% 28.1 22.2
50% 25.0 22.3
40% 22.6 21.9
30% 20.4 21.5
20% 18.4 21.6
10% 16.0 22.0
Active Idle 11.6 22.3

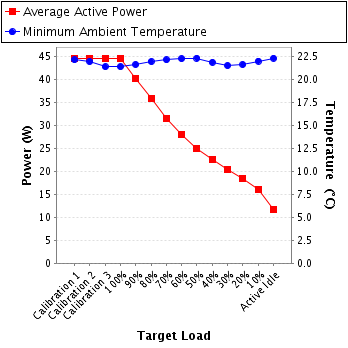

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W14113561
Date of Calibration: 21-Nov-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-6ff11330-20150212
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250.0 0.279 0.3 0.692 44.6 0.1%
Calibration 2 231 250.0 0.285 0.3 0.678 44.6 0.1%
Calibration 3 231 250.0 0.285 0.3 0.679 44.6 0.1%
100% 231 250.0 0.281 0.3 0.689 44.7 0.1%
90% 231 250.0 0.271 0.3 0.640 40.2 0.1%
80% 231 250.0 0.259 0.3 0.594 35.8 0.1%
70% 231 250.0 0.247 0.3 0.548 31.4 0.1%
60% 231 250.0 0.237 0.3 0.512 28.1 0.2%
50% 231 250.0 0.225 0.3 0.481 25.0 0.2%
40% 231 250.0 0.220 0.3 0.446 22.6 0.2%
30% 231 250.0 0.212 0.3 0.417 20.4 0.2%
20% 231 250.0 0.201 0.3 0.396 18.4 0.2%
10% 231 250.0 0.190 0.3 0.365 16.0 0.2%
Active Idle 231 250.0 0.179 0.3 0.282 11.6 0.3%

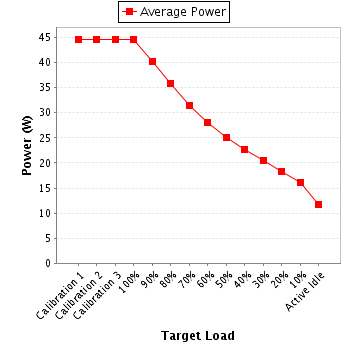

Power details for pwr1
