Huawei Technologies Co., Ltd Fusion Server RH2288H V3 SPECpower_ssj2008 = 10,700 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 25, 2015
Hardware Availability: May-2015 Software Availability: Jun-2013 Publication: Sep 25, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 267 21.8
Calibration 2 267 21.9
Calibration 3 266 21.7
100% 266 21.6
90% 237 21.7
80% 208 21.6
70% 183 21.6
60% 160 21.4
50% 141 21.3
40% 125 21.2
30% 110 21.2
20% 96.6 21.3
10% 83.2 21.2
Active Idle 44.8 21.2

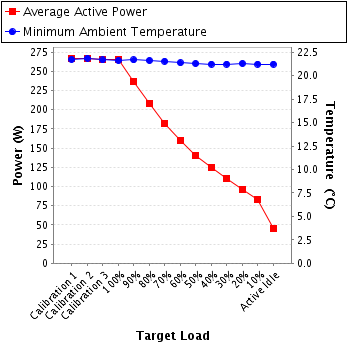

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B14011496-0010
Date of Calibration: 30-Jul-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-4db18c59-20150211
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.24 2.0 0.976 267 0.4%
Calibration 2 221 300.0 1.24 2.0 0.976 267 0.4%
Calibration 3 221 300.0 1.23 2.0 0.976 266 0.4%
100% 221 300.0 1.23 2.0 0.976 266 0.4%
90% 221 300.0 1.10 2.0 0.972 237 0.5%
80% 222 300.0 0.970 1.0 0.967 208 0.3%
70% 222 300.0 0.857 1.0 0.961 183 0.4%
60% 222 300.0 0.755 1.0 0.955 160 0.4%
50% 222 300.0 0.669 1.0 0.949 141 0.4%
40% 222 300.0 0.596 1.0 0.941 125 0.5%
30% 222 300.0 0.528 1.0 0.940 110 0.5%
20% 222 300.0 0.467 0.5 0.932 96.6 0.4%
10% 222 300.0 0.407 0.5 0.919 83.2 0.4%
Active Idle 223 300.0 0.261 0.5 0.770 44.8 0.7%
Power details for pwr1
