Fujitsu FUJITSU Server PRIMERGY RX1330 M1 SPECpower_ssj2008 = 6,916 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Apr 24, 2015
Hardware Availability: Oct-2014 Software Availability: Jun-2013 Publication: Jun 2, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 62.7 21.1
Calibration 2 63.8 21.1
Calibration 3 63.9 21.2
100% 63.9 21.4
90% 60.3 21.5
80% 51.3 21.2
70% 44.0 21.1
60% 37.6 21.1
50% 32.3 21.2
40% 29.1 21.4
30% 25.9 21.4
20% 23.5 21.2
10% 20.7 21.1
Active Idle 16.0 21.1

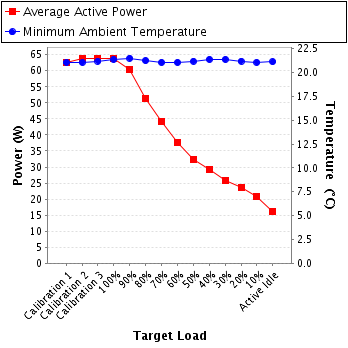

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W14113561
Date of Calibration: 21-Nov-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-6ff11330-20150212
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 0.322 0.6 0.845 62.7 0.1%
Calibration 2 230 250.0 0.326 0.6 0.849 63.8 0.1%
Calibration 3 230 250.0 0.326 0.6 0.849 63.9 0.1%
100% 230 250.0 0.326 0.6 0.850 63.9 0.1%
90% 230 250.0 0.313 0.6 0.836 60.3 0.1%
80% 231 250.0 0.285 0.6 0.779 51.3 0.2%
70% 231 250.0 0.259 0.6 0.734 44.0 0.2%
60% 231 250.0 0.235 0.6 0.692 37.6 0.2%
50% 231 250.0 0.215 0.6 0.650 32.3 0.2%
40% 231 250.0 0.205 0.6 0.614 29.1 0.3%
30% 231 250.0 0.196 0.6 0.575 25.9 0.3%
20% 231 250.0 0.188 0.6 0.542 23.5 0.3%
10% 231 250.0 0.179 0.6 0.503 20.7 0.4%
Active Idle 231 250.0 0.162 0.6 0.428 16.0 0.5%
Power details for pwr1
