Fujitsu FUJITSU Server PRIMERGY RX2560 M1 ssj_ops@100% = 3,256,040
ssj_ops@100% per JVM = 90,446
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 9, 2015
Hardware Availability: Apr-2015 Software Availability: Jun-2013 Publication: Apr 1, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,062,169
Calibration 2     3,251,360
Calibration 3     3,259,465
Calibration 4     3,259,567
ssj_ops@calibrated=3,259,516
100% 99.9% 3,259,516 3,256,040
90% 90.2% 2,933,564 2,940,773
80% 80.2% 2,607,613 2,614,317
70% 70.1% 2,281,661 2,286,233
60% 60.3% 1,955,710 1,965,228
50% 50.0% 1,629,758 1,630,501
40% 40.1% 1,303,806 1,306,350
30% 29.9% 977,855 976,085
20% 20.0% 651,903 652,130
10% 10.0% 325,952 327,272
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX2560 M1'
Set Identifier: RX2560 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2560 M1
Form Factor: 4U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.30GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 (Copper), S26361-F3852-E1
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: R1.17.0
Management Firmware Version: 7.73F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-KHGG2O7BDDA.001 90,380
WIN-KHGG2O7BDDA.002 90,252
WIN-KHGG2O7BDDA.003 90,818
WIN-KHGG2O7BDDA.004 91,447
WIN-KHGG2O7BDDA.005 87,312
WIN-KHGG2O7BDDA.006 90,649
WIN-KHGG2O7BDDA.007 90,519
WIN-KHGG2O7BDDA.008 92,396
WIN-KHGG2O7BDDA.009 91,990
WIN-KHGG2O7BDDA.010 89,042
WIN-KHGG2O7BDDA.011 89,213
WIN-KHGG2O7BDDA.012 90,248
WIN-KHGG2O7BDDA.013 90,914
WIN-KHGG2O7BDDA.014 90,320
WIN-KHGG2O7BDDA.015 89,403
WIN-KHGG2O7BDDA.016 90,926
WIN-KHGG2O7BDDA.017 91,395
WIN-KHGG2O7BDDA.018 91,769
WIN-KHGG2O7BDDA.019 89,116
WIN-KHGG2O7BDDA.020 90,035
WIN-KHGG2O7BDDA.021 90,818
WIN-KHGG2O7BDDA.022 91,726
WIN-KHGG2O7BDDA.023 86,551
WIN-KHGG2O7BDDA.024 90,658
WIN-KHGG2O7BDDA.025 91,186
WIN-KHGG2O7BDDA.026 91,619
WIN-KHGG2O7BDDA.027 92,181
WIN-KHGG2O7BDDA.028 88,270
WIN-KHGG2O7BDDA.029 88,234
WIN-KHGG2O7BDDA.030 91,359
WIN-KHGG2O7BDDA.031 91,429
WIN-KHGG2O7BDDA.032 91,423
WIN-KHGG2O7BDDA.033 90,230
WIN-KHGG2O7BDDA.034 89,883
WIN-KHGG2O7BDDA.035 90,748
WIN-KHGG2O7BDDA.036 91,583
ssj_ops@100% 3,256,040
ssj_ops@100% per JVM 90,446

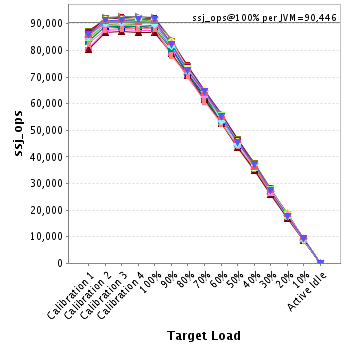

Graph of per-instance results
JVM 'WIN-KHGG2O7BDDA.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,355
Calibration 2     90,626
Calibration 3     91,144
Calibration 4     90,666
ssj_ops@calibrated=90,905
100% 99.4% 90,905 90,380
90% 88.6% 81,814 80,578
80% 81.3% 72,724 73,929
70% 70.7% 63,633 64,251
60% 60.2% 54,543 54,706
50% 50.2% 45,452 45,678
40% 39.8% 36,362 36,155
30% 30.4% 27,271 27,633
20% 19.7% 18,181 17,908
10% 10.0% 9,090 9,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,109
Calibration 2     89,592
Calibration 3     89,384
Calibration 4     90,268
ssj_ops@calibrated=89,826
100% 100.5% 89,826 90,252
90% 91.3% 80,843 82,050
80% 81.0% 71,861 72,737
70% 69.6% 62,878 62,520
60% 60.2% 53,896 54,042
50% 50.0% 44,913 44,900
40% 40.2% 35,930 36,094
30% 29.5% 26,948 26,470
20% 20.2% 17,965 18,104
10% 10.2% 8,983 9,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,886
Calibration 2     90,474
Calibration 3     90,032
Calibration 4     90,135
ssj_ops@calibrated=90,083
100% 100.8% 90,083 90,818
90% 90.8% 81,075 81,816
80% 80.3% 72,067 72,340
70% 70.2% 63,058 63,247
60% 61.2% 54,050 55,130
50% 50.1% 45,042 45,092
40% 40.2% 36,033 36,250
30% 29.8% 27,025 26,836
20% 19.8% 18,017 17,812
10% 10.1% 9,008 9,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,588
Calibration 2     92,026
Calibration 3     91,705
Calibration 4     91,553
ssj_ops@calibrated=91,629
100% 99.8% 91,629 91,447
90% 90.4% 82,466 82,847
80% 79.9% 73,303 73,183
70% 71.1% 64,140 65,129
60% 60.0% 54,977 54,958
50% 50.1% 45,814 45,938
40% 39.5% 36,651 36,235
30% 29.8% 27,489 27,292
20% 20.8% 18,326 19,054
10% 10.1% 9,163 9,267
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,697
Calibration 2     87,330
Calibration 3     87,920
Calibration 4     87,590
ssj_ops@calibrated=87,755
100% 99.5% 87,755 87,312
90% 90.3% 78,980 79,205
80% 79.6% 70,204 69,845
70% 70.2% 61,429 61,585
60% 60.6% 52,653 53,151
50% 50.5% 43,878 44,297
40% 40.0% 35,102 35,074
30% 30.4% 26,327 26,648
20% 20.1% 17,551 17,646
10% 10.2% 8,776 8,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,046
Calibration 2     90,551
Calibration 3     90,772
Calibration 4     90,971
ssj_ops@calibrated=90,872
100% 99.8% 90,872 90,649
90% 89.9% 81,784 81,730
80% 79.6% 72,697 72,360
70% 70.4% 63,610 63,973
60% 60.2% 54,523 54,715
50% 50.2% 45,436 45,651
40% 40.1% 36,349 36,423
30% 30.2% 27,261 27,485
20% 20.2% 18,174 18,350
10% 10.1% 9,087 9,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,211
Calibration 2     90,394
Calibration 3     90,237
Calibration 4     90,342
ssj_ops@calibrated=90,289
100% 100.3% 90,289 90,519
90% 90.0% 81,260 81,245
80% 79.3% 72,231 71,607
70% 70.7% 63,202 63,858
60% 60.1% 54,174 54,245
50% 50.2% 45,145 45,339
40% 39.9% 36,116 36,043
30% 29.6% 27,087 26,762
20% 20.0% 18,058 18,084
10% 10.3% 9,029 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,315
Calibration 2     92,243
Calibration 3     92,569
Calibration 4     92,796
ssj_ops@calibrated=92,683
100% 99.7% 92,683 92,396
90% 90.6% 83,414 83,958
80% 79.6% 74,146 73,799
70% 69.9% 64,878 64,805
60% 60.9% 55,610 56,398
50% 50.2% 46,341 46,557
40% 40.6% 37,073 37,665
30% 29.2% 27,805 27,054
20% 19.8% 18,537 18,330
10% 10.1% 9,268 9,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,294
Calibration 2     91,875
Calibration 3     92,264
Calibration 4     92,102
ssj_ops@calibrated=92,183
100% 99.8% 92,183 91,990
90% 90.2% 82,965 83,155
80% 80.7% 73,746 74,374
70% 68.7% 64,528 63,336
60% 60.1% 55,310 55,430
50% 50.5% 46,092 46,574
40% 40.9% 36,873 37,660
30% 30.5% 27,655 28,102
20% 19.9% 18,437 18,337
10% 9.9% 9,218 9,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,672
Calibration 2     88,913
Calibration 3     88,559
Calibration 4     88,989
ssj_ops@calibrated=88,774
100% 100.3% 88,774 89,042
90% 90.8% 79,897 80,636
80% 79.9% 71,019 70,895
70% 69.8% 62,142 61,991
60% 60.0% 53,264 53,292
50% 49.7% 44,387 44,109
40% 39.9% 35,510 35,394
30% 29.7% 26,632 26,382
20% 20.3% 17,755 17,992
10% 9.7% 8,877 8,570
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,451
Calibration 2     89,591
Calibration 3     89,596
Calibration 4     89,304
ssj_ops@calibrated=89,450
100% 99.7% 89,450 89,213
90% 91.0% 80,505 81,388
80% 80.7% 71,560 72,208
70% 70.7% 62,615 63,248
60% 60.0% 53,670 53,654
50% 50.3% 44,725 45,032
40% 40.4% 35,780 36,177
30% 30.1% 26,835 26,964
20% 20.1% 17,890 18,012
10% 9.6% 8,945 8,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,133
Calibration 2     89,663
Calibration 3     90,485
Calibration 4     89,942
ssj_ops@calibrated=90,214
100% 100.0% 90,214 90,248
90% 90.7% 81,193 81,814
80% 80.5% 72,171 72,610
70% 70.1% 63,150 63,257
60% 60.3% 54,128 54,407
50% 50.1% 45,107 45,238
40% 40.4% 36,086 36,454
30% 29.6% 27,064 26,743
20% 19.5% 18,043 17,579
10% 9.9% 9,021 8,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,434
Calibration 2     90,975
Calibration 3     91,577
Calibration 4     91,241
ssj_ops@calibrated=91,409
100% 99.5% 91,409 90,914
90% 91.0% 82,268 83,184
80% 80.9% 73,128 73,906
70% 70.3% 63,987 64,242
60% 59.8% 54,846 54,655
50% 50.2% 45,705 45,924
40% 40.2% 36,564 36,788
30% 29.5% 27,423 27,008
20% 19.9% 18,282 18,231
10% 9.8% 9,141 8,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,200
Calibration 2     90,280
Calibration 3     90,635
Calibration 4     90,453
ssj_ops@calibrated=90,544
100% 99.8% 90,544 90,320
90% 90.0% 81,490 81,455
80% 80.5% 72,435 72,913
70% 70.6% 63,381 63,919
60% 60.4% 54,326 54,692
50% 49.2% 45,272 44,576
40% 40.1% 36,218 36,337
30% 29.8% 27,163 27,001
20% 20.2% 18,109 18,279
10% 10.2% 9,054 9,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,822
Calibration 2     89,465
Calibration 3     89,713
Calibration 4     89,519
ssj_ops@calibrated=89,616
100% 99.8% 89,616 89,403
90% 90.2% 80,654 80,800
80% 80.0% 71,693 71,672
70% 71.4% 62,731 64,003
60% 60.9% 53,770 54,570
50% 50.1% 44,808 44,939
40% 39.8% 35,846 35,636
30% 29.1% 26,885 26,083
20% 20.8% 17,923 18,629
10% 10.0% 8,962 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,799
Calibration 2     90,438
Calibration 3     90,862
Calibration 4     90,975
ssj_ops@calibrated=90,919
100% 100.0% 90,919 90,926
90% 89.4% 81,827 81,237
80% 79.4% 72,735 72,209
70% 70.0% 63,643 63,681
60% 59.9% 54,551 54,482
50% 50.4% 45,459 45,864
40% 39.9% 36,367 36,237
30% 29.2% 27,276 26,566
20% 20.3% 18,184 18,450
10% 10.3% 9,092 9,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,242
Calibration 2     91,729
Calibration 3     91,346
Calibration 4     91,937
ssj_ops@calibrated=91,641
100% 99.7% 91,641 91,395
90% 90.4% 82,477 82,857
80% 80.7% 73,313 73,974
70% 69.9% 64,149 64,062
60% 60.4% 54,985 55,394
50% 49.4% 45,821 45,234
40% 39.9% 36,657 36,579
30% 29.1% 27,492 26,690
20% 20.1% 18,328 18,398
10% 10.1% 9,164 9,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,737
Calibration 2     91,307
Calibration 3     91,791
Calibration 4     92,029
ssj_ops@calibrated=91,910
100% 99.8% 91,910 91,769
90% 89.7% 82,719 82,467
80% 80.3% 73,528 73,806
70% 70.2% 64,337 64,507
60% 59.8% 55,146 54,963
50% 49.7% 45,955 45,705
40% 40.3% 36,764 37,057
30% 30.2% 27,573 27,747
20% 20.5% 18,382 18,825
10% 10.2% 9,191 9,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,238
Calibration 2     89,296
Calibration 3     89,546
Calibration 4     89,274
ssj_ops@calibrated=89,410
100% 99.7% 89,410 89,116
90% 89.9% 80,469 80,393
80% 80.0% 71,528 71,531
70% 70.8% 62,587 63,300
60% 60.6% 53,646 54,153
50% 50.2% 44,705 44,871
40% 40.4% 35,764 36,129
30% 30.7% 26,823 27,479
20% 20.0% 17,882 17,917
10% 10.3% 8,941 9,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,106
Calibration 2     89,906
Calibration 3     90,561
Calibration 4     90,502
ssj_ops@calibrated=90,531
100% 99.5% 90,531 90,035
90% 89.1% 81,478 80,619
80% 80.6% 72,425 72,992
70% 71.3% 63,372 64,577
60% 60.6% 54,319 54,850
50% 49.6% 45,266 44,906
40% 40.2% 36,213 36,386
30% 30.9% 27,159 27,978
20% 19.9% 18,106 18,044
10% 10.0% 9,053 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,793
Calibration 2     90,180
Calibration 3     90,489
Calibration 4     90,561
ssj_ops@calibrated=90,525
100% 100.3% 90,525 90,818
90% 89.5% 81,473 81,034
80% 80.3% 72,420 72,651
70% 70.5% 63,368 63,794
60% 59.5% 54,315 53,874
50% 49.9% 45,263 45,194
40% 39.7% 36,210 35,955
30% 30.0% 27,158 27,166
20% 20.2% 18,105 18,304
10% 10.0% 9,053 9,080
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,748
Calibration 2     91,035
Calibration 3     91,409
Calibration 4     91,399
ssj_ops@calibrated=91,404
100% 100.4% 91,404 91,726
90% 90.0% 82,264 82,303
80% 80.7% 73,123 73,765
70% 69.2% 63,983 63,246
60% 60.6% 54,843 55,347
50% 50.1% 45,702 45,785
40% 39.8% 36,562 36,366
30% 30.0% 27,421 27,427
20% 19.8% 18,281 18,083
10% 10.4% 9,140 9,467
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,309
Calibration 2     86,679
Calibration 3     86,978
Calibration 4     86,887
ssj_ops@calibrated=86,932
100% 99.6% 86,932 86,551
90% 90.6% 78,239 78,753
80% 81.0% 69,546 70,380
70% 70.7% 60,853 61,453
60% 60.6% 52,159 52,680
50% 50.1% 43,466 43,518
40% 40.0% 34,773 34,807
30% 29.8% 26,080 25,933
20% 19.5% 17,386 16,972
10% 10.0% 8,693 8,659
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,218
Calibration 2     90,421
Calibration 3     90,436
Calibration 4     90,644
ssj_ops@calibrated=90,540
100% 100.1% 90,540 90,658
90% 89.7% 81,486 81,202
80% 78.9% 72,432 71,458
70% 69.8% 63,378 63,205
60% 61.0% 54,324 55,227
50% 50.2% 45,270 45,490
40% 40.0% 36,216 36,207
30% 29.9% 27,162 27,083
20% 20.1% 18,108 18,233
10% 10.1% 9,054 9,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,261
Calibration 2     90,592
Calibration 3     91,280
Calibration 4     91,104
ssj_ops@calibrated=91,192
100% 100.0% 91,192 91,186
90% 90.4% 82,073 82,424
80% 80.9% 72,954 73,768
70% 68.8% 63,835 62,734
60% 60.2% 54,715 54,868
50% 49.2% 45,596 44,894
40% 40.1% 36,477 36,586
30% 29.8% 27,358 27,188
20% 20.5% 18,238 18,691
10% 9.8% 9,119 8,909
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,225
Calibration 2     91,920
Calibration 3     91,872
Calibration 4     91,880
ssj_ops@calibrated=91,876
100% 99.7% 91,876 91,619
90% 90.6% 82,688 83,233
80% 80.3% 73,501 73,774
70% 68.5% 64,313 62,921
60% 60.4% 55,126 55,505
50% 50.4% 45,938 46,333
40% 40.7% 36,750 37,410
30% 30.1% 27,563 27,657
20% 19.7% 18,375 18,129
10% 9.7% 9,188 8,906
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,372
Calibration 2     91,105
Calibration 3     92,303
Calibration 4     92,038
ssj_ops@calibrated=92,171
100% 100.0% 92,171 92,181
90% 90.2% 82,954 83,122
80% 80.5% 73,736 74,154
70% 70.5% 64,519 65,007
60% 60.7% 55,302 55,949
50% 50.8% 46,085 46,789
40% 39.9% 36,868 36,797
30% 30.0% 27,651 27,662
20% 19.9% 18,434 18,379
10% 10.0% 9,217 9,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,478
Calibration 2     88,814
Calibration 3     88,968
Calibration 4     89,017
ssj_ops@calibrated=88,992
100% 99.2% 88,992 88,270
90% 90.1% 80,093 80,224
80% 80.7% 71,194 71,811
70% 69.6% 62,295 61,946
60% 60.3% 53,395 53,629
50% 50.4% 44,496 44,819
40% 39.9% 35,597 35,512
30% 30.3% 26,698 26,988
20% 19.9% 17,798 17,687
10% 10.4% 8,899 9,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,700
Calibration 2     88,011
Calibration 3     88,127
Calibration 4     88,235
ssj_ops@calibrated=88,181
100% 100.1% 88,181 88,234
90% 88.5% 79,363 78,064
80% 80.2% 70,545 70,688
70% 69.0% 61,727 60,822
60% 59.5% 52,908 52,474
50% 50.2% 44,090 44,281
40% 40.3% 35,272 35,497
30% 30.3% 26,454 26,737
20% 19.9% 17,636 17,533
10% 9.8% 8,818 8,671
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,344
Calibration 2     91,203
Calibration 3     91,662
Calibration 4     91,801
ssj_ops@calibrated=91,732
100% 99.6% 91,732 91,359
90% 89.8% 82,558 82,376
80% 79.7% 73,385 73,100
70% 69.9% 64,212 64,161
60% 60.4% 55,039 55,367
50% 49.5% 45,866 45,436
40% 39.8% 36,693 36,541
30% 30.3% 27,519 27,787
20% 19.7% 18,346 18,075
10% 9.9% 9,173 9,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,965
Calibration 2     91,388
Calibration 3     91,020
Calibration 4     91,074
ssj_ops@calibrated=91,047
100% 100.4% 91,047 91,429
90% 90.4% 81,943 82,309
80% 80.2% 72,838 73,056
70% 69.8% 63,733 63,588
60% 60.8% 54,628 55,378
50% 49.7% 45,524 45,215
40% 39.5% 36,419 35,949
30% 30.4% 27,314 27,652
20% 19.6% 18,209 17,862
10% 10.1% 9,105 9,192
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,757
Calibration 2     91,474
Calibration 3     91,580
Calibration 4     91,928
ssj_ops@calibrated=91,754
100% 99.6% 91,754 91,423
90% 90.7% 82,578 83,185
80% 79.7% 73,403 73,108
70% 69.7% 64,228 63,913
60% 59.8% 55,052 54,884
50% 49.7% 45,877 45,587
40% 39.3% 36,702 36,059
30% 29.7% 27,526 27,269
20% 19.9% 18,351 18,238
10% 9.9% 9,175 9,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,044
Calibration 2     89,958
Calibration 3     90,346
Calibration 4     90,553
ssj_ops@calibrated=90,450
100% 99.8% 90,450 90,230
90% 91.6% 81,405 82,884
80% 79.9% 72,360 72,292
70% 70.0% 63,315 63,277
60% 60.7% 54,270 54,901
50% 49.5% 45,225 44,811
40% 40.4% 36,180 36,497
30% 29.5% 27,135 26,679
20% 20.6% 18,090 18,640
10% 10.1% 9,045 9,148
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,336
Calibration 2     90,166
Calibration 3     90,314
Calibration 4     90,250
ssj_ops@calibrated=90,282
100% 99.6% 90,282 89,883
90% 90.2% 81,253 81,408
80% 80.1% 72,225 72,297
70% 71.3% 63,197 64,375
60% 59.0% 54,169 53,283
50% 49.4% 45,141 44,556
40% 40.2% 36,113 36,303
30% 30.5% 27,084 27,524
20% 19.5% 18,056 17,567
10% 10.1% 9,028 9,146
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,449
Calibration 2     90,639
Calibration 3     90,873
Calibration 4     90,180
ssj_ops@calibrated=90,526
100% 100.2% 90,526 90,748
90% 91.3% 81,474 82,652
80% 80.3% 72,421 72,668
70% 70.3% 63,369 63,641
60% 60.4% 54,316 54,672
50% 50.7% 45,263 45,938
40% 39.7% 36,211 35,954
30% 29.8% 27,158 27,012
20% 20.0% 18,105 18,109
10% 10.3% 9,053 9,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,834
Calibration 2     91,102
Calibration 3     91,109
Calibration 4     91,427
ssj_ops@calibrated=91,268
100% 100.3% 91,268 91,583
90% 90.0% 82,141 82,165
80% 79.4% 73,014 72,457
70% 70.8% 63,888 64,657
60% 60.6% 54,761 55,303
50% 49.8% 45,634 45,432
40% 40.7% 36,507 37,137
30% 30.0% 27,380 27,397
20% 19.3% 18,254 17,646
10% 10.0% 9,127 9,161
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
