Fujitsu FUJITSU Server PRIMERGY TX2560 M1 SPECpower_ssj2008 = 10,685 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 10, 2015
Hardware Availability: Apr-2015 Software Availability: Jun-2013 Publication: Apr 1, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 265 22.8
Calibration 2 267 22.9
Calibration 3 267 23.1
Calibration 4 264 22.8
100% 264 22.0
90% 240 22.0
80% 214 22.4
70% 185 22.8
60% 161 23.1
50% 144 23.2
40% 129 23.4
30% 114 23.0
20% 99.4 22.1
10% 84.3 22.0
Active Idle 40.0 22.2

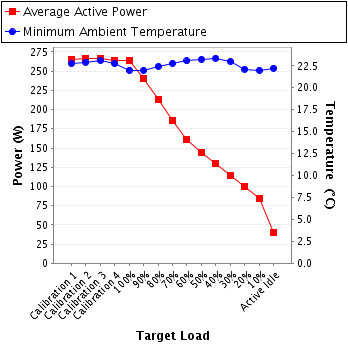

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W14113561
Date of Calibration: 21-Nov-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.17 2.5 0.987 265 0.1%
Calibration 2 230 250.0 1.17 2.5 0.987 267 0.1%
Calibration 3 230 250.0 1.17 2.5 0.987 267 0.1%
Calibration 4 230 250.0 1.16 2.5 0.988 264 0.1%
100% 230 250.0 1.16 2.5 0.988 264 0.1%
90% 230 250.0 1.06 1.2 0.987 240 0.1%
80% 230 250.0 0.941 1.2 0.986 214 0.1%
70% 230 250.0 0.817 1.2 0.984 185 0.1%
60% 230 250.0 0.714 1.2 0.978 161 0.1%
50% 230 250.0 0.642 1.2 0.973 144 0.1%
40% 230 250.0 0.580 0.6 0.966 129 0.1%
30% 230 250.0 0.517 0.6 0.957 114 0.1%
20% 230 250.0 0.455 0.6 0.947 99.4 0.1%
10% 231 250.0 0.394 0.6 0.929 84.3 0.1%
Active Idle 231 250.0 0.239 0.6 0.725 40.0 0.2%

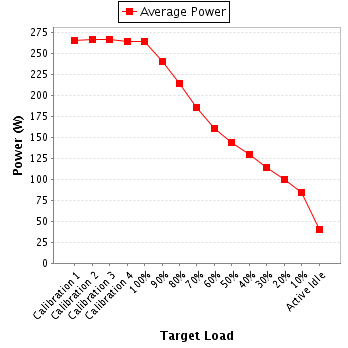

Power details for pwr1
