Dell Inc. PowerEdge T630 (Intel Xeon E5-2699 v3 2.30 GHz) SPECpower_ssj2008 = 10,103 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Feb 17, 2015
Hardware Availability: Apr-2015 Software Availability: Jun-2013 Publication: Mar 18, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.1% 3,246,430 273 11,872
90% 91.5% 2,967,458 247 12,021
80% 79.9% 2,591,043 217 11,923
70% 69.9% 2,266,274 191 11,867
60% 60.0% 1,945,892 172 11,335
50% 50.0% 1,620,354 157 10,351
40% 40.0% 1,296,795 142 9,161
30% 30.0% 972,113 126 7,742
20% 19.9% 645,820 108 5,989
10% 10.0% 325,183 89.6 3,630
Active Idle 0 48.1 0
∑ssj_ops / ∑power = 10,103

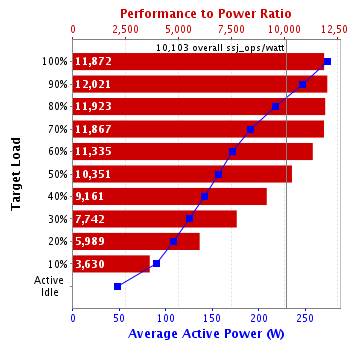

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge T630.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge T630 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: Tower
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; Dell p/n H8PGN X02, Slots A1-4,B1-4 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell p/n KNHJV
Disk Drive: 1 x 60 GB SATA SSD, Dell p/n WC8RX
Disk Controller: Native chipset SATA
# and type of Network Interface Cards (NICs) Installed: Onboard 1 x Dual Port Intel I350
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.2.5
Management Firmware Version: 2.10.10.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc
Model: PowerEdge R410
CPU Description: Intel Xeon E5160, 3.00 GHz
Memory amount (GB): 8.0
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition Service Pack 1
JVM Vendor: Oracle Corporation
JVM Version: Hotspot(TM) Client VM, version 1.6.0_32
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91HB22770
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO
Calibration Label: 6632150
Date of Calibration: 4-Aug-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 273 21.2
90% 247 21.1
80% 217 20.9
70% 191 20.6
60% 172 20.7
50% 157 20.4
40% 142 20.6
30% 126 20.4
20% 108 20.4
10% 89.6 20.2
Active Idle 48.1 20.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.2 255
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,024,930
Calibration 2     3,240,033
Calibration 3     3,244,853
ssj_ops@calibrated=3,242,443
100% 100.1% 3,242,443 3,246,430
90% 91.5% 2,918,198 2,967,458
80% 79.9% 2,593,954 2,591,043
70% 69.9% 2,269,710 2,266,274
60% 60.0% 1,945,466 1,945,892
50% 50.0% 1,621,221 1,620,354
40% 40.0% 1,296,977 1,296,795
30% 30.0% 972,733 972,113
20% 19.9% 648,489 645,820
10% 10.0% 324,244 325,183
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
