SPECpower_ssj2008 Host 'WIN-9QSVDK57236' Performance Report

SPECpower_ssj2008

Host 'WIN-9QSVDK57236' Performance Report

Sugon Sugon I620-G20			ssj_ops@100% = 3,161,325 ssj_ops@100% per JVM = 263,444
Test Sponsor:	Sugon	SPEC License #:	9046	Test Method:	Single Node
Tested By:	Sugon	Test Location:	Beijing, China	Test Date:	Jan 30, 2015
Hardware Availability:	Jan-2015	Software Availability:	Jun-2013	Publication:	Mar 11, 2015
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			3,276,905
Calibration 2			3,192,469
Calibration 3			3,184,466
ssj_ops@calibrated=3,188,468
100%	99.1%	3,188,468	3,161,325
90%	90.0%	2,869,621	2,870,546
80%	80.1%	2,550,774	2,552,481
70%	69.9%	2,231,927	2,229,034
60%	60.0%	1,913,081	1,913,249
50%	49.9%	1,594,234	1,590,719
40%	40.0%	1,275,387	1,274,762
30%	29.9%	956,540	954,090
20%	19.9%	637,694	634,351
10%	10.0%	318,847	318,891
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	I620-G20.

Hardware
Hardware Vendor:	Sugon
Model:	Sugon I620-G20
Form Factor:	2U
CPU Name:	Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics:	18 Cores, 2.3GHz, 45MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	36 cores, 2 chips, 18 cores/chip
Hardware Threads:	72 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	45 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	8 x 16 GB
Memory Details:	16GB 2Rx4 PC4-2133P ECC RDIMM; slots A0, B0, C0, D0, E0, F0, G0, H0 populated
Power Supply Quantity and Rating (W):	1 x 550
Power Supply Details:	GW-CRPS550 PN:1197317
Disk Drive:	Intel 530 series M.2 2242 type 120G SSD * 1 PN:SSDSCIHW120A4
Disk Controller:	Onboard SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual port Intel I210 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver Mode enabled ( details see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2008 R2 SP1 DC
OS Version:	Version 6.1.7601 Service Pack 1 Build 7601
Filesystem:	NTFS
JVM Vendor:	IBM Corporation
JVM Version:	IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled)
JVM Command-line Options:	-Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads6 -Xgc:preferredHeapBase=0x80000000
JVM Affinity:	start /NODE [0, 1, 2, 3]/affinity [3F,FC0,3F000]
JVM Instances:	12
JVM Initial Heap (MB):	1875
JVM Maximum Heap (MB):	1875
JVM Address Bits:	64
Boot Firmware Version:	083
Management Firmware Version:	085
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)

Boot Firmware Settings

Set "Hardware Prefetcher = Disabled"
Set "Adjacent Cache Line Prefetcher = Disabled"
Set "DCU Streamer Prefetcher = Disabled"
Set "VMX = Disabled"
Set "Power Technology = Custom"
Set "Turbo Mode = Disabled"
set "C-state = Enable"
set "C state limit = C6(non-retention)
Set "COD = Enabled"
Set "Early Snoop = Disabled"
Set "sSATA Controller = Disabled"
Set "QPI Link Speed = 6.4 GT/s"

Management Firmware Settings

none

System Under Test Notes

Start the benchmark via Windows RDP.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Set "Turn off hard disk after = 1 minute".
Microsoft Hotfix KB2510206 has been installed due to known problems of the group assignment algorithm which does not create a balanced group assignment.
Minimum processor state set to 0%
Maxmum processor state set to 100%
Each JVM instance was bound to 6 logical processors

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 72 for a known issue with this java version.

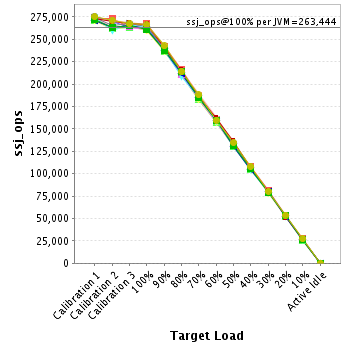

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-9QSVDK57236.001	267,574
WIN-9QSVDK57236.002	263,251
WIN-9QSVDK57236.003	261,704
WIN-9QSVDK57236.004	259,206
WIN-9QSVDK57236.005	260,844
WIN-9QSVDK57236.006	262,770
WIN-9QSVDK57236.007	266,710
WIN-9QSVDK57236.008	263,905
WIN-9QSVDK57236.009	266,608
WIN-9QSVDK57236.010	261,579
WIN-9QSVDK57236.011	261,088
WIN-9QSVDK57236.012	266,085
ssj_ops@100%	3,161,325
ssj_ops@100% per JVM	263,444

JVM 'WIN-9QSVDK57236.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			273,574
Calibration 2			273,562
Calibration 3			262,812
ssj_ops@calibrated=268,187
100%	99.8%	268,187	267,574
90%	90.2%	241,368	241,994
80%	80.7%	214,550	216,526
70%	69.8%	187,731	187,097
60%	60.0%	160,912	160,819
50%	49.3%	134,093	132,167
40%	40.4%	107,275	108,283
30%	30.3%	80,456	81,133
20%	19.9%	53,637	53,446
10%	10.2%	26,819	27,241
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

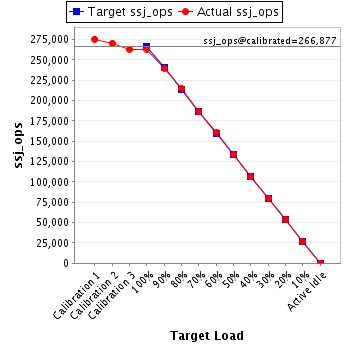

JVM 'WIN-9QSVDK57236.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			275,555
Calibration 2			270,335
Calibration 3			263,419
ssj_ops@calibrated=266,877
100%	98.6%	266,877	263,251
90%	89.9%	240,189	239,975
80%	80.4%	213,502	214,526
70%	70.0%	186,814	186,796
60%	60.1%	160,126	160,277
50%	50.0%	133,439	133,431
40%	39.8%	106,751	106,300
30%	29.9%	80,063	79,746
20%	20.0%	53,375	53,306
10%	10.0%	26,688	26,732
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-9QSVDK57236.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			271,290
Calibration 2			262,237
Calibration 3			263,343
ssj_ops@calibrated=262,790
100%	99.6%	262,790	261,704
90%	90.1%	236,511	236,777
80%	80.0%	210,232	210,191
70%	69.5%	183,953	182,558
60%	60.0%	157,674	157,614
50%	49.7%	131,395	130,531
40%	39.8%	105,116	104,709
30%	30.0%	78,837	78,799
20%	19.8%	52,558	52,124
10%	9.8%	26,279	25,847
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

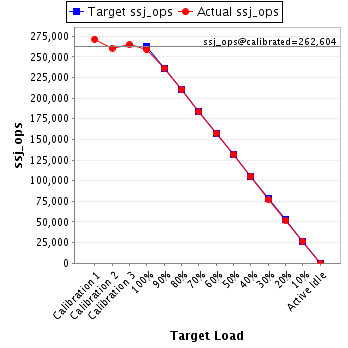

JVM 'WIN-9QSVDK57236.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			271,468
Calibration 2			260,710
Calibration 3			264,499
ssj_ops@calibrated=262,604
100%	98.7%	262,604	259,206
90%	90.0%	236,344	236,413
80%	80.3%	210,083	210,837
70%	69.8%	183,823	183,257
60%	60.0%	157,563	157,511
50%	50.1%	131,302	131,442
40%	40.1%	105,042	105,342
30%	29.6%	78,781	77,666
20%	19.8%	52,521	52,034
10%	10.2%	26,260	26,784
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-9QSVDK57236.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			272,748
Calibration 2			263,484
Calibration 3			262,610
ssj_ops@calibrated=263,047
100%	99.2%	263,047	260,844
90%	90.4%	236,742	237,776
80%	79.5%	210,437	209,111
70%	69.8%	184,133	183,658
60%	59.7%	157,828	157,101
50%	50.0%	131,523	131,633
40%	40.4%	105,219	106,182
30%	30.0%	78,914	78,992
20%	19.7%	52,609	51,879
10%	10.0%	26,305	26,354
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-9QSVDK57236.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			274,031
Calibration 2			259,337
Calibration 3			266,554
ssj_ops@calibrated=262,945
100%	99.9%	262,945	262,770
90%	90.2%	236,651	237,208
80%	79.3%	210,356	208,635
70%	70.4%	184,062	185,085
60%	60.3%	157,767	158,579
50%	50.0%	131,473	131,585
40%	39.7%	105,178	104,329
30%	29.9%	78,884	78,625
20%	20.0%	52,589	52,613
10%	10.0%	26,295	26,325
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-9QSVDK57236.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			273,160
Calibration 2			270,867
Calibration 3			268,769
ssj_ops@calibrated=269,818
100%	98.8%	269,818	266,710
90%	90.1%	242,836	243,065
80%	79.8%	215,855	215,423
70%	70.2%	188,873	189,368
60%	60.2%	161,891	162,327
50%	49.6%	134,909	133,889
40%	40.0%	107,927	108,043
30%	29.8%	80,945	80,482
20%	20.2%	53,964	54,438
10%	10.0%	26,982	26,978
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-9QSVDK57236.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			274,063
Calibration 2			264,953
Calibration 3			267,443
ssj_ops@calibrated=266,198
100%	99.1%	266,198	263,905
90%	90.1%	239,578	239,723
80%	80.1%	212,958	213,307
70%	70.2%	186,339	186,810
60%	60.0%	159,719	159,624
50%	50.0%	133,099	133,143
40%	40.0%	106,479	106,461
30%	29.9%	79,859	79,501
20%	20.0%	53,240	53,215
10%	10.0%	26,620	26,496
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-9QSVDK57236.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			273,083
Calibration 2			269,423
Calibration 3			267,219
ssj_ops@calibrated=268,321
100%	99.4%	268,321	266,608
90%	89.7%	241,489	240,706
80%	80.1%	214,657	214,801
70%	69.3%	187,825	185,822
60%	60.1%	160,993	161,255
50%	50.5%	134,161	135,469
40%	39.7%	107,329	106,531
30%	30.0%	80,496	80,389
20%	19.5%	53,664	52,329
10%	9.8%	26,832	26,340
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

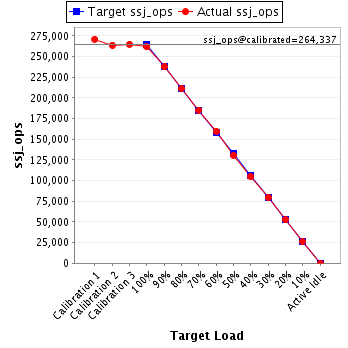

JVM 'WIN-9QSVDK57236.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			271,001
Calibration 2			263,623
Calibration 3			265,050
ssj_ops@calibrated=264,337
100%	99.0%	264,337	261,579
90%	89.8%	237,903	237,411
80%	79.9%	211,469	211,244
70%	70.1%	185,036	185,301
60%	60.4%	158,602	159,621
50%	49.5%	132,168	130,717
40%	39.7%	105,735	104,995
30%	30.1%	79,301	79,578
20%	19.8%	52,867	52,361
10%	10.0%	26,434	26,302
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-9QSVDK57236.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			271,601
Calibration 2			262,647
Calibration 3			265,632
ssj_ops@calibrated=264,139
100%	98.8%	264,139	261,088
90%	89.7%	237,726	236,969
80%	80.9%	211,312	213,815
70%	70.2%	184,898	185,306
60%	60.1%	158,484	158,863
50%	50.0%	132,070	131,945
40%	39.9%	105,656	105,349
30%	29.8%	79,242	78,776
20%	20.0%	52,828	52,768
10%	9.9%	26,414	26,157
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-9QSVDK57236.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			275,331
Calibration 2			271,292
Calibration 3			267,115
ssj_ops@calibrated=269,204
100%	98.8%	269,204	266,085
90%	90.1%	242,283	242,528
80%	79.5%	215,363	214,064
70%	69.8%	188,442	187,975
60%	59.3%	161,522	159,660
50%	50.1%	134,602	134,768
40%	40.2%	107,681	108,239
30%	29.9%	80,761	80,403
20%	20.0%	53,841	53,839
10%	10.2%	26,920	27,336
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
