Sugon Sugon I620-G20 SPECpower_ssj2008 = 9,939 overall ssj_ops/watt
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, China Test Date: Jan 30, 2015
Hardware Availability: Jan-2015 Software Availability: Jun-2013 Publication: Mar 11, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 265 24.7
Calibration 2 266 24.7
Calibration 3 266 24.8
100% 264 24.8
90% 240 25.1
80% 217 25.1
70% 196 25.0
60% 175 24.9
50% 156 24.8
40% 139 24.9
30% 122 24.8
20% 107 24.8
10% 91.3 24.9
Active Idle 52.5 24.9

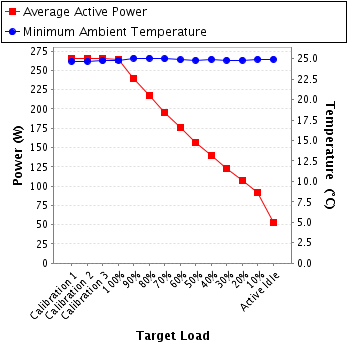

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Meters and Instruments Corporation
Model: WT310
Serial Number: C2PB07002V
Connectivity: USB2
Input Connection: Default
Metrology Institute: CNAS
Accredited by: CTI (Centre Testing International Corporation)
Calibration Label: QEB14002935-07
Date of Calibration: 30-Jan-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connect to PSU1
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: Tsense
Driver Version: 2.8.30.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: less than 50mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 72 for a known issue with this java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 1.24 2.0 0.953 265 0.4%
Calibration 2 225 300.0 1.24 2.0 0.953 266 0.4%
Calibration 3 225 300.0 1.24 2.0 0.953 266 0.4%
100% 225 300.0 1.23 2.0 0.953 264 0.4%
90% 225 300.0 1.12 2.0 0.947 240 0.4%
80% 226 300.0 1.02 2.0 0.942 217 0.4%
70% 226 300.0 0.927 2.0 0.935 196 0.5%
60% 226 300.0 0.839 2.0 0.927 175 0.5%
50% 226 300.0 0.754 1.0 0.918 156 0.4%
40% 226 300.0 0.680 1.0 0.906 139 0.4%
30% 225 300.0 0.607 1.0 0.892 122 0.4%
20% 225 300.0 0.541 1.0 0.876 107 0.5%
10% 226 300.0 0.473 0.5 0.855 91.3 0.4%
Active Idle 226 300.0 0.305 0.5 0.763 52.5 0.5%

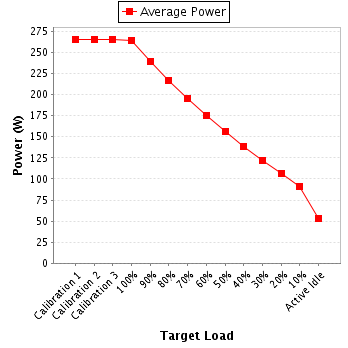

Power details for pwr1
