Fujitsu FUJITSU Server PRIMERGY TX1320 M1 SPECpower_ssj2008 = 7,535 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Dec 9, 2014
Hardware Availability: Mar-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 59.4 20.2
Calibration 2 59.9 20.2
Calibration 3 60.0 20.3
100% 60.0 20.3
90% 57.4 20.3
80% 46.8 20.3
70% 40.7 20.3
60% 34.7 20.3
50% 29.6 20.3
40% 26.5 20.3
30% 23.4 20.3
20% 21.1 20.4
10% 18.3 20.3
Active Idle 13.3 20.3

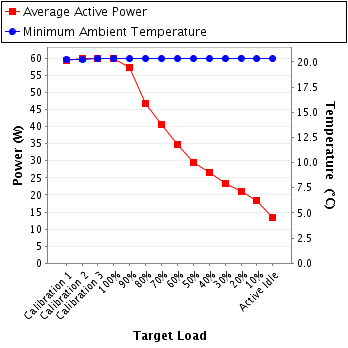

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W14113561
Date of Calibration: 21-Nov-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to PSU
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250.0 0.305 0.6 0.844 59.4 0.1%
Calibration 2 231 250.0 0.307 0.6 0.847 59.9 0.1%
Calibration 3 231 250.0 0.307 0.6 0.847 60.0 0.1%
100% 231 250.0 0.307 0.6 0.848 60.0 0.1%
90% 231 250.0 0.298 0.6 0.835 57.4 0.1%
80% 231 250.0 0.271 0.6 0.741 46.8 0.2%
70% 231 250.0 0.254 0.6 0.690 40.7 0.2%
60% 231 250.0 0.237 0.6 0.631 34.7 0.2%
50% 231 250.0 0.232 0.6 0.552 29.6 0.3%
40% 231 250.0 0.224 0.6 0.513 26.5 0.3%
30% 231 250.0 0.212 0.6 0.479 23.4 0.3%
20% 231 250.0 0.203 0.6 0.451 21.1 0.4%
10% 231 250.0 0.187 0.6 0.423 18.3 0.4%
Active Idle 231 250.0 0.142 0.6 0.404 13.3 0.6%
Power details for pwr1
