Fujitsu FUJITSU Server PRIMERGY RX2530 M1 SPECpower_ssj2008 = 9,811 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jan 9, 2015
Hardware Availability: Feb-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 285 20.8
Calibration 2 289 20.8
Calibration 3 289 20.8
Calibration 4 289 20.9
100% 289 20.9
90% 260 20.9
80% 230 20.9
70% 199 20.9
60% 172 20.9
50% 153 20.8
40% 138 20.8
30% 123 20.8
20% 108 20.8
10% 92.3 20.8
Active Idle 47.3 20.7

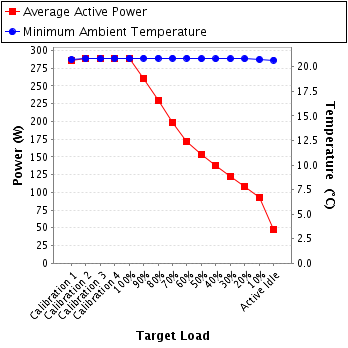

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W14113561
Date of Calibration: 21-Nov-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to PSU
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.26 2.5 0.986 285 0.1%
Calibration 2 230 250.0 1.27 2.5 0.985 289 0.1%
Calibration 3 230 250.0 1.27 2.5 0.985 289 0.1%
Calibration 4 230 250.0 1.27 2.5 0.985 289 0.1%
100% 230 250.0 1.27 1.2 0.985 289 0.1%
90% 230 250.0 1.14 1.2 0.988 260 0.1%
80% 230 250.0 1.01 1.2 0.987 230 0.1%
70% 230 250.0 0.876 1.2 0.987 199 0.1%
60% 230 250.0 0.760 1.2 0.981 172 0.1%
50% 230 250.0 0.683 1.2 0.976 153 0.1%
40% 230 250.0 0.617 0.6 0.970 138 0.1%
30% 230 250.0 0.554 0.6 0.963 123 0.1%
20% 230 250.0 0.492 0.6 0.952 108 0.1%
10% 230 250.0 0.426 0.6 0.940 92.3 0.1%
Active Idle 230 250.0 0.264 0.6 0.778 47.3 0.2%

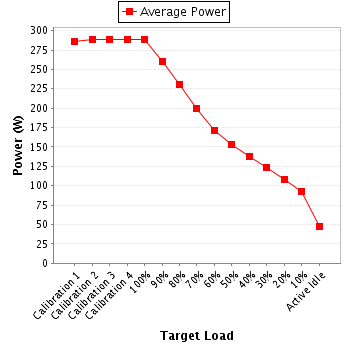

Power details for pwr1
