Fujitsu FUJITSU Server PRIMERGY RX2540 M1 ssj_ops@100% = 3,257,627
ssj_ops@100% per JVM = 90,490
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 27, 2014
Hardware Availability: Nov-2014 Software Availability: Jun-2013 Publication: Oct 21, 2014
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,065,520
Calibration 2     3,254,437
Calibration 3     3,257,611
Calibration 4     3,259,746
ssj_ops@calibrated=3,258,679
100% 100.0% 3,258,679 3,257,627
90% 89.9% 2,932,811 2,929,344
80% 79.8% 2,606,943 2,599,922
70% 70.1% 2,281,075 2,283,039
60% 60.1% 1,955,207 1,957,744
50% 50.1% 1,629,339 1,633,106
40% 40.0% 1,303,471 1,303,216
30% 30.0% 977,604 978,558
20% 20.0% 651,736 652,175
10% 10.0% 325,868 326,571
Active Idle   0 0

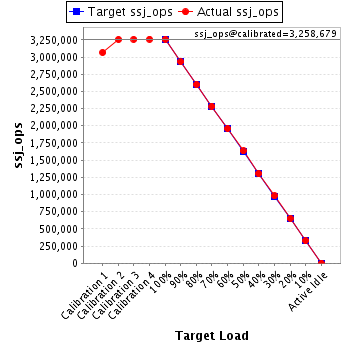

Graph of results
System Under Test
Set: 'RX2540 M1'
Set Identifier: RX2540 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2540 M1
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.30GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 LP (Copper), S26361-F3852-E201
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: R1.6.0
Management Firmware Version: 7.60A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-KHGG2O7BDDA.001 89,603
WIN-KHGG2O7BDDA.002 90,429
WIN-KHGG2O7BDDA.003 90,140
WIN-KHGG2O7BDDA.004 90,620
WIN-KHGG2O7BDDA.005 86,601
WIN-KHGG2O7BDDA.006 90,466
WIN-KHGG2O7BDDA.007 91,632
WIN-KHGG2O7BDDA.008 90,470
WIN-KHGG2O7BDDA.009 91,286
WIN-KHGG2O7BDDA.010 88,691
WIN-KHGG2O7BDDA.011 88,987
WIN-KHGG2O7BDDA.012 91,144
WIN-KHGG2O7BDDA.013 90,977
WIN-KHGG2O7BDDA.014 90,294
WIN-KHGG2O7BDDA.015 89,855
WIN-KHGG2O7BDDA.016 91,977
WIN-KHGG2O7BDDA.017 90,416
WIN-KHGG2O7BDDA.018 92,488
WIN-KHGG2O7BDDA.019 89,744
WIN-KHGG2O7BDDA.020 91,008
WIN-KHGG2O7BDDA.021 91,959
WIN-KHGG2O7BDDA.022 91,171
WIN-KHGG2O7BDDA.023 87,765
WIN-KHGG2O7BDDA.024 91,673
WIN-KHGG2O7BDDA.025 91,120
WIN-KHGG2O7BDDA.026 91,129
WIN-KHGG2O7BDDA.027 91,849
WIN-KHGG2O7BDDA.028 89,128
WIN-KHGG2O7BDDA.029 89,828
WIN-KHGG2O7BDDA.030 90,064
WIN-KHGG2O7BDDA.031 91,118
WIN-KHGG2O7BDDA.032 89,548
WIN-KHGG2O7BDDA.033 88,554
WIN-KHGG2O7BDDA.034 91,750
WIN-KHGG2O7BDDA.035 91,436
WIN-KHGG2O7BDDA.036 92,706
ssj_ops@100% 3,257,627
ssj_ops@100% per JVM 90,490

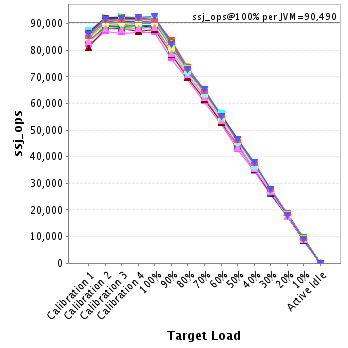

Graph of per-instance results
JVM 'WIN-KHGG2O7BDDA.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,141
Calibration 2     89,842
Calibration 3     89,833
Calibration 4     89,993
ssj_ops@calibrated=89,913
100% 99.7% 89,913 89,603
90% 89.6% 80,922 80,544
80% 79.8% 71,930 71,752
70% 70.1% 62,939 63,052
60% 60.5% 53,948 54,379
50% 49.9% 44,956 44,902
40% 39.6% 35,965 35,649
30% 29.4% 26,974 26,437
20% 20.0% 17,983 18,019
10% 10.0% 8,991 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,421
Calibration 2     90,467
Calibration 3     90,511
Calibration 4     90,624
ssj_ops@calibrated=90,568
100% 99.8% 90,568 90,429
90% 89.5% 81,511 81,058
80% 80.5% 72,454 72,862
70% 69.2% 63,397 62,689
60% 60.2% 54,341 54,490
50% 50.1% 45,284 45,344
40% 40.1% 36,227 36,335
30% 30.1% 27,170 27,287
20% 19.7% 18,114 17,798
10% 9.8% 9,057 8,849
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,198
Calibration 2     90,161
Calibration 3     89,975
Calibration 4     90,531
ssj_ops@calibrated=90,253
100% 99.9% 90,253 90,140
90% 89.9% 81,228 81,101
80% 79.3% 72,203 71,527
70% 70.4% 63,177 63,571
60% 59.8% 54,152 53,951
50% 50.2% 45,127 45,263
40% 39.4% 36,101 35,594
30% 30.3% 27,076 27,304
20% 20.3% 18,051 18,287
10% 9.7% 9,025 8,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,170
Calibration 2     89,810
Calibration 3     90,462
Calibration 4     90,656
ssj_ops@calibrated=90,559
100% 100.1% 90,559 90,620
90% 88.8% 81,503 80,392
80% 80.1% 72,447 72,534
70% 70.6% 63,391 63,980
60% 60.1% 54,335 54,386
50% 50.6% 45,279 45,818
40% 39.8% 36,224 36,041
30% 30.5% 27,168 27,596
20% 20.6% 18,112 18,688
10% 9.7% 9,056 8,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,028
Calibration 2     86,862
Calibration 3     86,302
Calibration 4     86,556
ssj_ops@calibrated=86,429
100% 100.2% 86,429 86,601
90% 88.6% 77,786 76,584
80% 80.0% 69,143 69,156
70% 69.9% 60,500 60,402
60% 60.5% 51,857 52,255
50% 49.4% 43,214 42,662
40% 39.9% 34,572 34,447
30% 29.7% 25,929 25,663
20% 20.3% 17,286 17,544
10% 10.2% 8,643 8,811
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,905
Calibration 2     90,803
Calibration 3     90,558
Calibration 4     90,747
ssj_ops@calibrated=90,652
100% 99.8% 90,652 90,466
90% 90.9% 81,587 82,422
80% 80.0% 72,522 72,527
70% 70.5% 63,457 63,910
60% 59.6% 54,391 54,017
50% 50.9% 45,326 46,101
40% 40.8% 36,261 36,975
30% 29.8% 27,196 26,992
20% 19.6% 18,130 17,750
10% 10.5% 9,065 9,542
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,593
Calibration 2     91,590
Calibration 3     91,535
Calibration 4     91,761
ssj_ops@calibrated=91,648
100% 100.0% 91,648 91,632
90% 89.8% 82,483 82,282
80% 80.4% 73,318 73,725
70% 70.4% 64,154 64,483
60% 60.7% 54,989 55,656
50% 50.6% 45,824 46,353
40% 40.1% 36,659 36,734
30% 30.4% 27,494 27,865
20% 20.4% 18,330 18,719
10% 9.9% 9,165 9,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,907
Calibration 2     90,846
Calibration 3     90,450
Calibration 4     90,797
ssj_ops@calibrated=90,623
100% 99.8% 90,623 90,470
90% 90.4% 81,561 81,965
80% 78.9% 72,499 71,507
70% 70.4% 63,436 63,821
60% 60.6% 54,374 54,896
50% 49.9% 45,312 45,191
40% 40.0% 36,249 36,216
30% 29.5% 27,187 26,758
20% 20.3% 18,125 18,402
10% 9.6% 9,062 8,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,374
Calibration 2     91,329
Calibration 3     91,950
Calibration 4     91,326
ssj_ops@calibrated=91,638
100% 99.6% 91,638 91,286
90% 89.7% 82,474 82,208
80% 79.7% 73,310 73,066
70% 69.5% 64,147 63,662
60% 59.0% 54,983 54,061
50% 50.0% 45,819 45,841
40% 39.8% 36,655 36,474
30% 30.2% 27,491 27,668
20% 19.8% 18,328 18,125
10% 10.3% 9,164 9,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,097
Calibration 2     88,962
Calibration 3     88,885
Calibration 4     89,210
ssj_ops@calibrated=89,048
100% 99.6% 89,048 88,691
90% 90.2% 80,143 80,285
80% 81.2% 71,238 72,335
70% 70.8% 62,334 63,010
60% 60.4% 53,429 53,752
50% 49.8% 44,524 44,306
40% 39.8% 35,619 35,432
30% 29.7% 26,714 26,457
20% 20.2% 17,810 18,015
10% 10.2% 8,905 9,042
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,028
Calibration 2     87,959
Calibration 3     88,579
Calibration 4     88,060
ssj_ops@calibrated=88,319
100% 100.8% 88,319 88,987
90% 90.3% 79,487 79,724
80% 81.2% 70,655 71,736
70% 70.3% 61,824 62,084
60% 59.9% 52,992 52,934
50% 50.3% 44,160 44,424
40% 40.3% 35,328 35,636
30% 30.3% 26,496 26,759
20% 19.8% 17,664 17,521
10% 10.0% 8,832 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,971
Calibration 2     91,474
Calibration 3     91,072
Calibration 4     91,779
ssj_ops@calibrated=91,426
100% 99.7% 91,426 91,144
90% 90.9% 82,283 83,097
80% 80.7% 73,140 73,809
70% 69.2% 63,998 63,284
60% 60.4% 54,855 55,267
50% 49.9% 45,713 45,626
40% 40.0% 36,570 36,547
30% 30.1% 27,428 27,554
20% 19.7% 18,285 18,029
10% 9.9% 9,143 9,017
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,214
Calibration 2     90,875
Calibration 3     90,894
Calibration 4     90,835
ssj_ops@calibrated=90,864
100% 100.1% 90,864 90,977
90% 89.2% 81,778 81,046
80% 80.0% 72,692 72,713
70% 69.6% 63,605 63,275
60% 59.7% 54,519 54,250
50% 50.6% 45,432 45,983
40% 39.1% 36,346 35,555
30% 30.3% 27,259 27,523
20% 20.2% 18,173 18,329
10% 10.4% 9,086 9,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,058
Calibration 2     90,128
Calibration 3     90,799
Calibration 4     90,160
ssj_ops@calibrated=90,480
100% 99.8% 90,480 90,294
90% 90.0% 81,432 81,467
80% 79.7% 72,384 72,100
70% 69.0% 63,336 62,402
60% 59.8% 54,288 54,121
50% 50.7% 45,240 45,873
40% 40.0% 36,192 36,229
30% 30.4% 27,144 27,525
20% 20.4% 18,096 18,413
10% 10.0% 9,048 9,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,032
Calibration 2     89,268
Calibration 3     89,682
Calibration 4     89,563
ssj_ops@calibrated=89,622
100% 100.3% 89,622 89,855
90% 90.2% 80,660 80,832
80% 79.8% 71,698 71,549
70% 69.6% 62,736 62,414
60% 59.7% 53,773 53,476
50% 50.2% 44,811 44,966
40% 39.6% 35,849 35,452
30% 30.1% 26,887 27,020
20% 20.4% 17,924 18,287
10% 9.8% 8,962 8,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

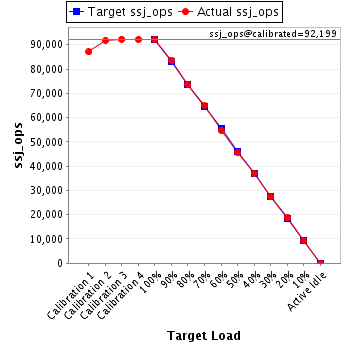

JVM 'WIN-KHGG2O7BDDA.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,016
Calibration 2     91,731
Calibration 3     92,287
Calibration 4     92,112
ssj_ops@calibrated=92,199
100% 99.8% 92,199 91,977
90% 90.8% 82,979 83,685
80% 79.8% 73,759 73,611
70% 70.3% 64,540 64,861
60% 59.3% 55,320 54,666
50% 49.7% 46,100 45,786
40% 40.2% 36,880 37,033
30% 29.6% 27,660 27,304
20% 20.2% 18,440 18,645
10% 10.0% 9,220 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,550
Calibration 2     90,392
Calibration 3     90,761
Calibration 4     90,848
ssj_ops@calibrated=90,804
100% 99.6% 90,804 90,416
90% 90.6% 81,724 82,297
80% 79.3% 72,644 72,039
70% 70.4% 63,563 63,945
60% 59.6% 54,483 54,125
50% 50.3% 45,402 45,657
40% 40.6% 36,322 36,870
30% 29.3% 27,241 26,601
20% 19.4% 18,161 17,591
10% 10.0% 9,080 9,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,935
Calibration 2     92,448
Calibration 3     92,634
Calibration 4     92,391
ssj_ops@calibrated=92,513
100% 100.0% 92,513 92,488
90% 89.0% 83,261 82,316
80% 79.3% 74,010 73,405
70% 69.2% 64,759 64,061
60% 60.6% 55,508 56,020
50% 49.8% 46,256 46,040
40% 39.5% 37,005 36,517
30% 30.0% 27,754 27,782
20% 20.0% 18,503 18,487
10% 9.9% 9,251 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,052
Calibration 2     89,047
Calibration 3     89,030
Calibration 4     89,266
ssj_ops@calibrated=89,148
100% 100.7% 89,148 89,744
90% 89.9% 80,233 80,178
80% 79.5% 71,319 70,841
70% 69.7% 62,404 62,124
60% 60.1% 53,489 53,541
50% 50.3% 44,574 44,840
40% 39.9% 35,659 35,569
30% 29.7% 26,744 26,467
20% 20.1% 17,830 17,947
10% 9.8% 8,915 8,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

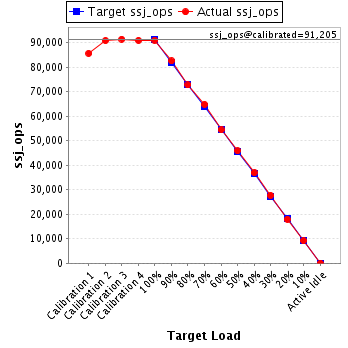

JVM 'WIN-KHGG2O7BDDA.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,677
Calibration 2     90,866
Calibration 3     91,456
Calibration 4     90,954
ssj_ops@calibrated=91,205
100% 99.8% 91,205 91,008
90% 90.5% 82,084 82,570
80% 79.8% 72,964 72,765
70% 71.1% 63,843 64,834
60% 59.7% 54,723 54,472
50% 50.3% 45,602 45,836
40% 40.5% 36,482 36,914
30% 30.4% 27,361 27,719
20% 19.7% 18,241 17,979
10% 10.1% 9,120 9,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,228
Calibration 2     91,772
Calibration 3     91,480
Calibration 4     92,335
ssj_ops@calibrated=91,908
100% 100.1% 91,908 91,959
90% 90.3% 82,717 83,000
80% 79.6% 73,526 73,154
70% 70.3% 64,335 64,655
60% 61.0% 55,145 56,052
50% 50.2% 45,954 46,094
40% 40.8% 36,763 37,518
30% 30.3% 27,572 27,819
20% 19.8% 18,382 18,171
10% 10.0% 9,191 9,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,842
Calibration 2     91,812
Calibration 3     91,692
Calibration 4     91,719
ssj_ops@calibrated=91,705
100% 99.4% 91,705 91,171
90% 88.6% 82,535 81,256
80% 79.5% 73,364 72,947
70% 70.6% 64,194 64,723
60% 60.1% 55,023 55,154
50% 50.9% 45,853 46,633
40% 40.1% 36,682 36,762
30% 29.5% 27,512 27,037
20% 19.7% 18,341 18,091
10% 10.1% 9,171 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,927
Calibration 2     88,134
Calibration 3     88,152
Calibration 4     87,192
ssj_ops@calibrated=87,672
100% 100.1% 87,672 87,765
90% 89.4% 78,905 78,348
80% 79.4% 70,137 69,592
70% 70.2% 61,370 61,515
60% 60.4% 52,603 52,953
50% 49.8% 43,836 43,672
40% 40.3% 35,069 35,347
30% 29.9% 26,302 26,212
20% 19.8% 17,534 17,387
10% 9.9% 8,767 8,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,563
Calibration 2     91,865
Calibration 3     91,875
Calibration 4     91,943
ssj_ops@calibrated=91,909
100% 99.7% 91,909 91,673
90% 90.1% 82,718 82,851
80% 78.4% 73,527 72,031
70% 70.0% 64,336 64,311
60% 59.1% 55,145 54,355
50% 49.6% 45,954 45,541
40% 39.6% 36,764 36,433
30% 29.7% 27,573 27,291
20% 19.9% 18,382 18,258
10% 10.0% 9,191 9,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,897
Calibration 2     91,464
Calibration 3     91,433
Calibration 4     91,335
ssj_ops@calibrated=91,384
100% 99.7% 91,384 91,120
90% 91.0% 82,246 83,179
80% 79.4% 73,107 72,563
70% 69.7% 63,969 63,691
60% 60.3% 54,830 55,064
50% 49.9% 45,692 45,607
40% 39.2% 36,554 35,793
30% 30.4% 27,415 27,799
20% 20.0% 18,277 18,285
10% 9.9% 9,138 9,039
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,267
Calibration 2     91,933
Calibration 3     91,265
Calibration 4     91,433
ssj_ops@calibrated=91,349
100% 99.8% 91,349 91,129
90% 90.8% 82,214 82,915
80% 79.8% 73,079 72,912
70% 70.4% 63,944 64,296
60% 59.6% 54,809 54,410
50% 50.9% 45,674 46,468
40% 39.2% 36,540 35,843
30% 30.0% 27,405 27,440
20% 20.2% 18,270 18,432
10% 10.5% 9,135 9,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,671
Calibration 2     92,309
Calibration 3     92,183
Calibration 4     91,844
ssj_ops@calibrated=92,013
100% 99.8% 92,013 91,849
90% 90.0% 82,812 82,845
80% 79.5% 73,611 73,115
70% 69.7% 64,409 64,122
60% 60.1% 55,208 55,314
50% 50.9% 46,007 46,861
40% 40.2% 36,805 37,001
30% 30.4% 27,604 27,930
20% 20.0% 18,403 18,417
10% 10.2% 9,201 9,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

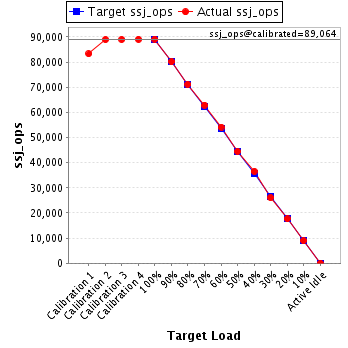

JVM 'WIN-KHGG2O7BDDA.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,276
Calibration 2     88,933
Calibration 3     89,011
Calibration 4     89,116
ssj_ops@calibrated=89,064
100% 100.1% 89,064 89,128
90% 90.0% 80,157 80,170
80% 79.9% 71,251 71,161
70% 70.7% 62,345 62,929
60% 60.8% 53,438 54,140
50% 50.0% 44,532 44,519
40% 41.0% 35,625 36,547
30% 29.3% 26,719 26,054
20% 19.8% 17,813 17,670
10% 10.1% 8,906 8,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

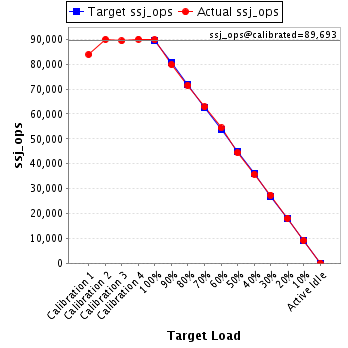

JVM 'WIN-KHGG2O7BDDA.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,876
Calibration 2     89,926
Calibration 3     89,339
Calibration 4     90,048
ssj_ops@calibrated=89,693
100% 100.2% 89,693 89,828
90% 89.0% 80,724 79,827
80% 79.7% 71,754 71,485
70% 70.0% 62,785 62,802
60% 60.6% 53,816 54,387
50% 49.5% 44,847 44,421
40% 39.8% 35,877 35,742
30% 30.5% 26,908 27,384
20% 20.1% 17,939 18,037
10% 10.1% 8,969 9,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,681
Calibration 2     89,921
Calibration 3     90,060
Calibration 4     90,005
ssj_ops@calibrated=90,032
100% 100.0% 90,032 90,064
90% 89.6% 81,029 80,670
80% 79.9% 72,026 71,952
70% 69.6% 63,023 62,676
60% 60.2% 54,019 54,168
50% 49.6% 45,016 44,621
40% 39.2% 36,013 35,263
30% 29.9% 27,010 26,929
20% 20.4% 18,006 18,328
10% 10.2% 9,003 9,228
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,955
Calibration 2     90,053
Calibration 3     91,061
Calibration 4     91,079
ssj_ops@calibrated=91,070
100% 100.1% 91,070 91,118
90% 89.2% 81,963 81,269
80% 80.5% 72,856 73,278
70% 69.8% 63,749 63,604
60% 60.1% 54,642 54,700
50% 50.3% 45,535 45,833
40% 39.4% 36,428 35,908
30% 29.7% 27,321 27,062
20% 20.1% 18,214 18,320
10% 10.2% 9,107 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,102
Calibration 2     89,667
Calibration 3     89,889
Calibration 4     89,784
ssj_ops@calibrated=89,836
100% 99.7% 89,836 89,548
90% 89.5% 80,853 80,362
80% 79.9% 71,869 71,755
70% 69.9% 62,886 62,801
60% 59.5% 53,902 53,440
50% 50.3% 44,918 45,201
40% 40.2% 35,935 36,121
30% 29.9% 26,951 26,885
20% 19.7% 17,967 17,729
10% 9.9% 8,984 8,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,367
Calibration 2     88,263
Calibration 3     87,721
Calibration 4     88,220
ssj_ops@calibrated=87,970
100% 100.7% 87,970 88,554
90% 89.6% 79,173 78,824
80% 80.7% 70,376 70,981
70% 70.9% 61,579 62,414
60% 60.9% 52,782 53,598
50% 49.3% 43,985 43,328
40% 40.4% 35,188 35,526
30% 30.7% 26,391 27,033
20% 20.0% 17,594 17,611
10% 10.1% 8,797 8,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,544
Calibration 2     91,246
Calibration 3     91,336
Calibration 4     91,557
ssj_ops@calibrated=91,447
100% 100.3% 91,447 91,750
90% 90.4% 82,302 82,660
80% 78.2% 73,157 71,512
70% 69.3% 64,013 63,346
60% 59.9% 54,868 54,760
50% 49.5% 45,723 45,269
40% 39.5% 36,579 36,093
30% 30.6% 27,434 27,983
20% 20.1% 18,289 18,350
10% 9.9% 9,145 9,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,030
Calibration 2     90,942
Calibration 3     91,507
Calibration 4     91,635
ssj_ops@calibrated=91,571
100% 99.9% 91,571 91,436
90% 90.4% 82,414 82,803
80% 79.8% 73,257 73,112
70% 70.1% 64,100 64,191
60% 60.3% 54,943 55,251
50% 50.1% 45,785 45,864
40% 40.7% 36,628 37,315
30% 30.2% 27,471 27,657
20% 20.1% 18,314 18,399
10% 10.0% 9,157 9,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KHGG2O7BDDA.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,930
Calibration 2     91,341
Calibration 3     91,952
Calibration 4     92,335
ssj_ops@calibrated=92,143
100% 100.6% 92,143 92,706
90% 89.3% 82,929 82,313
80% 79.0% 73,715 72,811
70% 70.6% 64,500 65,098
60% 60.0% 55,286 55,282
50% 50.3% 46,072 46,359
40% 41.0% 36,857 37,783
30% 30.1% 27,643 27,764
20% 19.7% 18,429 18,116
10% 9.8% 9,214 9,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
