Fujitsu FUJITSU Server PRIMERGY RX2540 M1 SPECpower_ssj2008 = 10,654 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 27, 2014
Hardware Availability: Nov-2014 Software Availability: Jun-2013 Publication: Oct 21, 2014
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 270 20.1
Calibration 2 272 20.1
Calibration 3 272 20.1
Calibration 4 272 20.1
100% 271 20.1
90% 244 20.2
80% 216 20.2
70% 186 20.2
60% 161 20.3
50% 143 20.3
40% 128 20.3
30% 113 20.2
20% 98.2 20.2
10% 82.6 20.2
Active Idle 39.0 20.2

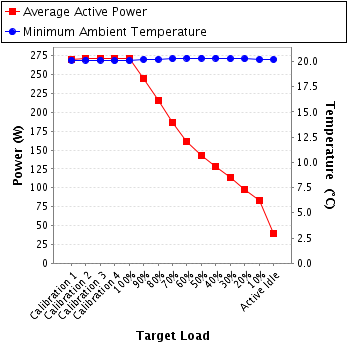

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W13118902
Date of Calibration: 15-Nov-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.3-83e231b9-20140326
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250.0 1.19 2.5 0.986 270 0.1%
Calibration 2 231 250.0 1.19 2.5 0.986 272 0.1%
Calibration 3 231 250.0 1.19 2.5 0.986 272 0.1%
Calibration 4 231 250.0 1.19 2.5 0.986 272 0.1%
100% 231 250.0 1.19 2.5 0.986 271 0.1%
90% 231 250.0 1.07 1.2 0.987 244 0.1%
80% 231 250.0 0.949 1.2 0.985 216 0.1%
70% 231 250.0 0.821 1.2 0.984 186 0.1%
60% 231 250.0 0.713 1.2 0.977 161 0.1%
50% 231 250.0 0.638 1.2 0.972 143 0.1%
40% 231 250.0 0.575 0.6 0.964 128 0.1%
30% 231 250.0 0.513 0.6 0.955 113 0.1%
20% 231 250.0 0.450 0.6 0.944 98.2 0.1%
10% 231 250.0 0.387 0.6 0.924 82.6 0.1%
Active Idle 231 250.0 0.238 0.6 0.710 39.0 0.2%

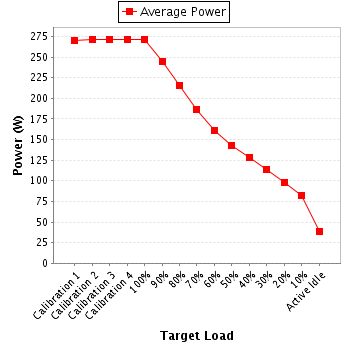

Power details for pwr1
