Huawei Technologies Co., Ltd Tecal CH121 SPECpower_ssj2008 = 6,309 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 2, 2013
Hardware Availability: Sep-2013 Software Availability: Jan-2012 Publication: Oct 21, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,306 21.3
Calibration 2 1,311 21.4
Calibration 3 1,312 21.2
100% 1,310 21.4
90% 1,196 21.3
80% 1,003 21.3
70% 942 21.3
60% 881 21.2
50% 815 21.1
40% 747 20.8
30% 677 20.7
20% 609 20.6
10% 543 20.5
Active Idle 334 20.4

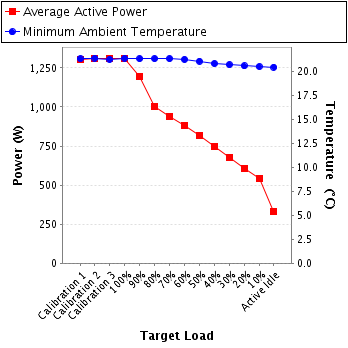

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 2GB13002877-0009
Date of Calibration: 25-Apr-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.0-7f9b1b00-20130314
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 300.0 5.79 10.0 0.993 1,306 0.4%
Calibration 2 226 300.0 5.83 10.0 0.993 1,311 0.4%
Calibration 3 225 300.0 5.87 10.0 0.994 1,312 0.4%
100% 223 300.0 5.92 10.0 0.994 1,310 0.4%
90% 223 300.0 5.41 10.0 0.993 1,196 0.4%
80% 223 300.0 4.53 10.0 0.990 1,003 0.5%
70% 223 300.0 4.27 5.0 0.989 942 0.3%
60% 224 300.0 3.98 5.0 0.988 881 0.4%
50% 224 300.0 3.68 5.0 0.986 815 0.4%
40% 224 300.0 3.39 5.0 0.984 747 0.4%
30% 224 300.0 3.08 5.0 0.982 677 0.4%
20% 223 300.0 2.78 5.0 0.979 609 0.4%
10% 223 300.0 2.49 5.0 0.975 543 0.5%
Active Idle 224 300.0 1.58 2.0 0.941 334 0.4%

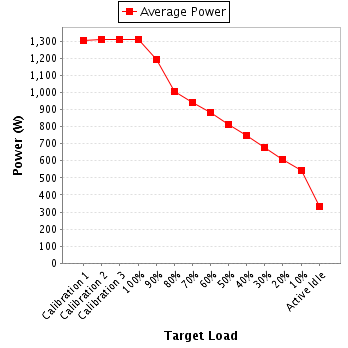

Power details for pwr1
