Acer Incorporated Altos R360 F2 ssj_ops@100% = 1,432,448
ssj_ops@100% per JVM = 179,056
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jun 7, 2013
Hardware Availability: May-2013 Software Availability: Jun-2012 Publication: Jul 16, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,385,569
Calibration 2     1,430,789
Calibration 3     1,434,739
ssj_ops@calibrated=1,432,764
100% 100.0% 1,432,764 1,432,448
90% 89.8% 1,289,488 1,286,540
80% 80.0% 1,146,212 1,146,778
70% 70.2% 1,002,935 1,005,145
60% 60.2% 859,659 862,801
50% 49.8% 716,382 713,240
40% 40.0% 573,106 573,022
30% 29.9% 429,829 428,553
20% 20.0% 286,553 286,818
10% 9.9% 143,276 142,098
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Acer Incorporated
Model: Altos R360 F2
Form Factor: 1U
CPU Name: Intel Xeon E5-2660 2.2 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots A1, B1, C1, E1, F1 and G1 populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Acer P/N SC.46017.001
Disk Drive: 1 x 160GB SSD 2.5" SATA, Acer part KN.1600N.001
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 dual-port Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 01.06.0002
Management Firmware Version: 1.17.4151
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-35LQ2SRL8QI.001 180,815
WIN-35LQ2SRL8QI.002 176,812
WIN-35LQ2SRL8QI.003 179,601
WIN-35LQ2SRL8QI.004 180,313
WIN-35LQ2SRL8QI.005 177,799
WIN-35LQ2SRL8QI.006 180,638
WIN-35LQ2SRL8QI.007 179,013
WIN-35LQ2SRL8QI.008 177,457
ssj_ops@100% 1,432,448
ssj_ops@100% per JVM 179,056

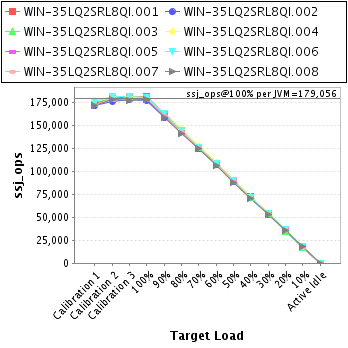

Graph of per-instance results

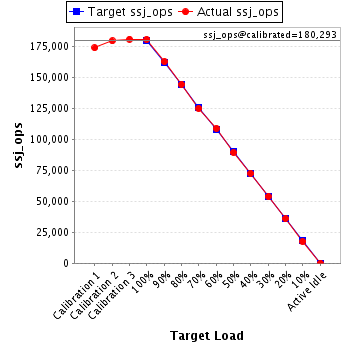

JVM 'WIN-35LQ2SRL8QI.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,954
Calibration 2     179,559
Calibration 3     181,026
ssj_ops@calibrated=180,293
100% 100.3% 180,293 180,815
90% 90.3% 162,263 162,838
80% 80.1% 144,234 144,491
70% 69.4% 126,205 125,097
60% 60.4% 108,176 108,929
50% 49.6% 90,146 89,457
40% 40.3% 72,117 72,581
30% 29.9% 54,088 53,946
20% 19.9% 36,059 35,936
10% 9.8% 18,029 17,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,876
Calibration 2     175,905
Calibration 3     177,991
ssj_ops@calibrated=176,948
100% 99.9% 176,948 176,812
90% 89.3% 159,253 157,932
80% 80.6% 141,559 142,638
70% 70.2% 123,864 124,154
60% 60.4% 106,169 106,812
50% 50.1% 88,474 88,684
40% 40.5% 70,779 71,644
30% 29.8% 53,084 52,780
20% 20.1% 35,390 35,502
10% 9.9% 17,695 17,597
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,292
Calibration 2     179,294
Calibration 3     179,240
ssj_ops@calibrated=179,267
100% 100.2% 179,267 179,601
90% 90.1% 161,340 161,504
80% 81.0% 143,414 145,223
70% 70.4% 125,487 126,218
60% 60.4% 107,560 108,290
50% 49.9% 89,633 89,503
40% 40.0% 71,707 71,673
30% 29.9% 53,780 53,676
20% 19.5% 35,853 34,895
10% 9.8% 17,927 17,582
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,919
Calibration 2     181,031
Calibration 3     181,514
ssj_ops@calibrated=181,272
100% 99.5% 181,272 180,313
90% 89.5% 163,145 162,306
80% 79.9% 145,018 144,864
70% 70.4% 126,891 127,555
60% 60.2% 108,763 109,053
50% 49.8% 90,636 90,266
40% 40.0% 72,509 72,503
30% 30.3% 54,382 55,008
20% 20.2% 36,254 36,529
10% 10.2% 18,127 18,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,421
Calibration 2     178,347
Calibration 3     178,815
ssj_ops@calibrated=178,581
100% 99.6% 178,581 177,799
90% 89.9% 160,723 160,612
80% 79.5% 142,865 141,953
70% 70.6% 125,007 126,163
60% 60.6% 107,149 108,187
50% 49.7% 89,291 88,666
40% 40.0% 71,432 71,426
30% 29.8% 53,574 53,192
20% 20.1% 35,716 35,906
10% 10.0% 17,858 17,907
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

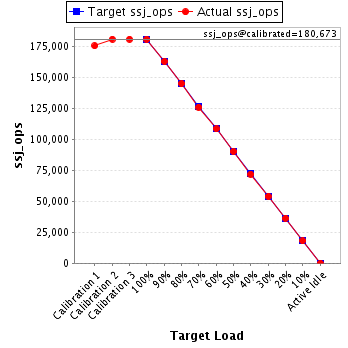

JVM 'WIN-35LQ2SRL8QI.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,243
Calibration 2     180,673
Calibration 3     180,674
ssj_ops@calibrated=180,673
100% 100.0% 180,673 180,638
90% 90.1% 162,606 162,758
80% 80.1% 144,539 144,721
70% 69.7% 126,471 125,851
60% 60.0% 108,404 108,376
50% 50.0% 90,337 90,253
40% 39.8% 72,269 71,821
30% 29.8% 54,202 53,914
20% 20.2% 36,135 36,432
10% 10.0% 18,067 18,021
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,542
Calibration 2     178,530
Calibration 3     178,531
ssj_ops@calibrated=178,531
100% 100.3% 178,531 179,013
90% 89.6% 160,678 159,933
80% 79.7% 142,825 142,313
70% 70.4% 124,971 125,768
60% 60.1% 107,118 107,295
50% 49.5% 89,265 88,459
40% 39.5% 71,412 70,546
30% 29.9% 53,559 53,413
20% 20.0% 35,706 35,687
10% 9.5% 17,853 16,932
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,321
Calibration 2     177,451
Calibration 3     176,948
ssj_ops@calibrated=177,199
100% 100.1% 177,199 177,457
90% 89.5% 159,479 158,658
80% 79.3% 141,760 140,575
70% 70.2% 124,040 124,340
60% 59.7% 106,320 105,859
50% 49.6% 88,600 87,951
40% 40.0% 70,880 70,828
30% 29.7% 53,160 52,624
20% 20.3% 35,440 35,931
10% 10.1% 17,720 17,978
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
