Huawei Technologies Co., Ltd RH2485 V2 SPECpower_ssj2008 = 4,266 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 16, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Jul 10, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 299 23.8
Calibration 2 324 23.8
Calibration 3 324 23.8
100% 324 23.8
90% 287 23.8
80% 253 23.8
70% 226 23.8
60% 197 23.8
50% 183 23.8
40% 172 23.8
30% 161 23.8
20% 150 23.8
10% 138 23.8
Active Idle 89.6 23.8

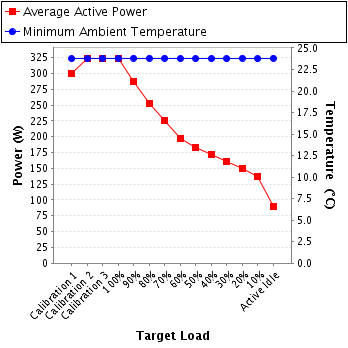

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: "2GB12006186-0010"
Date of Calibration: 30-Jul-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.0-7f9b1b00-20130314
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 300.0 1.46 2.0 0.906 299 0.4%
Calibration 2 226 300.0 1.55 2.0 0.925 324 0.4%
Calibration 3 226 300.0 1.55 2.0 0.925 324 0.4%
100% 226 300.0 1.55 2.0 0.925 324 0.4%
90% 224 300.0 1.42 2.0 0.905 287 0.5%
80% 224 300.0 1.29 2.0 0.880 253 0.5%
70% 224 300.0 1.18 2.0 0.851 226 0.5%
60% 224 300.0 1.01 1.0 0.872 197 0.4%
50% 225 300.0 0.953 1.0 0.857 183 0.4%
40% 225 300.0 0.910 1.0 0.842 172 0.5%
30% 225 300.0 0.879 1.0 0.813 161 0.5%
20% 225 300.0 0.834 1.0 0.799 150 0.5%
10% 223 300.0 0.792 1.0 0.782 138 0.5%
Active Idle 223 300.0 0.648 1.0 0.620 89.6 0.7%

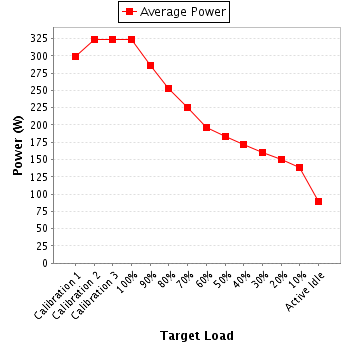

Power details for pwr1
