SPECpower_ssj2008 Host 'RUBYDICE' Performance Report

SPECpower_ssj2008

Host 'RUBYDICE' Performance Report

NEC Corporation Express5800/GT110f-S			ssj_ops@100% = 397,309 ssj_ops@100% per JVM = 198,654
Test Sponsor:	NEC Corporation	SPEC License #:	9006	Test Method:	Single Node
Tested By:	NEC Corporation	Test Location:	Fuchu, Tokyo, Japan	Test Date:	May 30, 2013
Hardware Availability:	Jul-2013	Software Availability:	Apr-2013	Publication:	Jun 26, 2013
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Set Identifier:	sut
Set Description:	Express5800/GT110f-S (Intel Xeon E3-1265LV3, 2.50 GHz)
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	NEC Corporation
Model:	Express5800/GT110f-S
Form Factor:	Tower
CPU Name:	Intel Xeon E3-1265LV3
CPU Characteristics:	4-Core, 2.50 GHz, 8 MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	4 cores, 1 chip, 4 cores/chip
Hardware Threads:	8 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	8
# and size of DIMM:	2 x 4096 MB
Memory Details:	4GB 2Rx8 PC3L-12800E ECC CL11; slots DIMM1 and DIMM2 populated
Power Supply Quantity and Rating (W):	1 x 250
Power Supply Details:	TIGER POWER TG12-0250-01
Disk Drive:	1 x 250GB 7200rpm HDD 2.5inch SATA, NEC P/N:N8150-356
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Integrated Broadcom BCM5718 Dual-Port Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	1 x 2.5-inch Drive Cage, NEC P/N:N8154-59; 1 x ODD Bay Cover, NEC P/N:N8151-121

Software
Power Management:	Power saver
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise
OS Version:	SP1
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_45
JVM Command-line Options:	-Xms1600m -Xmx1600m -Xmn1200m -XX:+AggressiveOpts -XX:+UseCompressedStrings -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:+UseBiasedLocking
JVM Affinity:	start /affinity [F,F0]
JVM Instances:	2
JVM Initial Heap (MB):	1600
JVM Maximum Heap (MB):	1600
JVM Address Bits:	64
Boot Firmware Version:	4.6.0011
Management Firmware Version:	00.07
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

None

Each JVM instance was affinitized to four threads in a socket.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Turn off hard disk after was set to 1 Minute in OS.
Processor power management Minimum processor state was set to 0% in OS.
Processor power management Maximum processor state was set to 100% in OS.
Run was started via Remote Desktop Connection.
input.load_level.number_warehouses was set to 8 to detect the full number available processors on SUT.

None

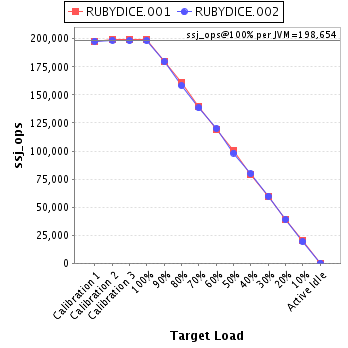

JVM 'RUBYDICE.001' Scores:

See the JVM Instance Performance Report for additional details.

JVM 'RUBYDICE.002' Scores:

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
