SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/GT110f-S | SPECpower_ssj2008 = 6,488 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | May 30, 2013 |
| Hardware Availability: | Jul-2013 | Software Availability: | Apr-2013 | Publication: | Jun 26, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

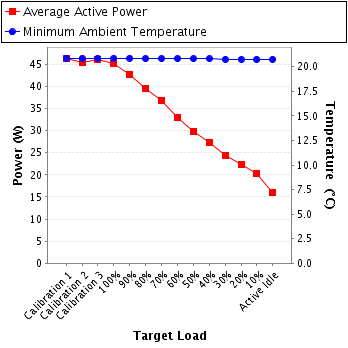

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 46.4 | 20.9 |
| Calibration 2 | 45.4 | 20.9 |
| Calibration 3 | 46.1 | 20.9 |
| 100% | 45.1 | 20.9 |
| 90% | 42.6 | 20.9 |
| 80% | 39.5 | 20.8 |
| 70% | 36.8 | 20.8 |
| 60% | 33.0 | 20.8 |
| 50% | 29.8 | 20.8 |
| 40% | 27.2 | 20.8 |
| 30% | 24.4 | 20.8 |
| 20% | 22.4 | 20.8 |
| 10% | 20.3 | 20.8 |
| Active Idle | 15.9 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928024 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | JQA (Japan Quality Assurance Organization) |
| Calibration Label: | 150-25872 |
| Date of Calibration: | 7-Feb-2013 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.6.0-7f9b1b00-20130314 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |

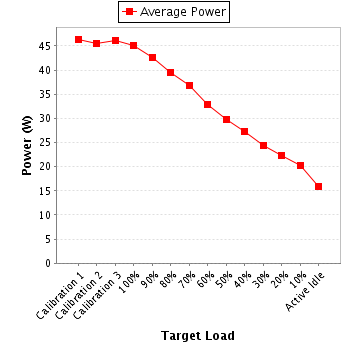

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 102 | 150.0 | 0.480 | 0.5 | 0.945 | 46.4 | 0.4% |
| Calibration 2 | 102 | 150.0 | 0.470 | 0.5 | 0.944 | 45.4 | 0.4% |
| Calibration 3 | 102 | 150.0 | 0.477 | 0.5 | 0.944 | 46.1 | 0.4% |
| 100% | 102 | 150.0 | 0.467 | 0.5 | 0.944 | 45.1 | 0.4% |
| 90% | 102 | 150.0 | 0.443 | 0.5 | 0.940 | 42.6 | 0.4% |
| 80% | 103 | 150.0 | 0.413 | 0.5 | 0.934 | 39.5 | 0.4% |
| 70% | 102 | 150.0 | 0.388 | 0.5 | 0.929 | 36.8 | 0.4% |
| 60% | 100 | 150.0 | 0.356 | 0.5 | 0.923 | 33.0 | 0.5% |
| 50% | 100 | 150.0 | 0.326 | 0.5 | 0.916 | 29.8 | 0.5% |
| 40% | 101 | 150.0 | 0.298 | 0.5 | 0.906 | 27.2 | 0.5% |
| 30% | 101 | 150.0 | 0.271 | 0.5 | 0.896 | 24.4 | 0.6% |
| 20% | 102 | 150.0 | 0.250 | 0.5 | 0.883 | 22.4 | 0.6% |
| 10% | 102 | 150.0 | 0.230 | 0.5 | 0.869 | 20.3 | 0.6% |
| Active Idle | 102 | 150.0 | 0.184 | 0.2 | 0.851 | 15.9 | 0.5% |
