Acer Incorporated Altos R380 F2 ssj_ops@100% = 1,426,072
ssj_ops@100% per JVM = 178,259
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jan 1, 2005
Hardware Availability: Apr-2013 Software Availability: Mar-2013 Publication: Jun 26, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,374,619
Calibration 2     1,426,142
Calibration 3     1,427,406
ssj_ops@calibrated=1,426,774
100% 100.0% 1,426,774 1,426,072
90% 90.3% 1,284,097 1,287,686
80% 79.8% 1,141,419 1,138,934
70% 70.0% 998,742 999,267
60% 59.8% 856,064 852,999
50% 50.0% 713,387 713,502
40% 39.9% 570,710 569,525
30% 30.0% 428,032 427,629
20% 20.0% 285,355 284,703
10% 10.0% 142,677 142,807
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Acer Incorporated
Model: Altos R380 F2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8 core, 2.20 GHz, 20MB L3 Cache (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3L-10600E; slots A1, B1, C1, E1, F1 and G1 are populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Acer P/N SC.46017.001
Disk Drive: 1 x 160GB SATA 2.5" SSD, Acer part KN.1600N.001
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 4 x Intel I350 dual-port Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 01.06.0002
Management Firmware Version: 1.17.4010
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-GVRVGBSTJA7.001 178,291
WIN-GVRVGBSTJA7.002 179,024
WIN-GVRVGBSTJA7.003 177,989
WIN-GVRVGBSTJA7.004 177,535
WIN-GVRVGBSTJA7.005 178,693
WIN-GVRVGBSTJA7.006 180,270
WIN-GVRVGBSTJA7.007 177,967
WIN-GVRVGBSTJA7.008 176,302
ssj_ops@100% 1,426,072
ssj_ops@100% per JVM 178,259

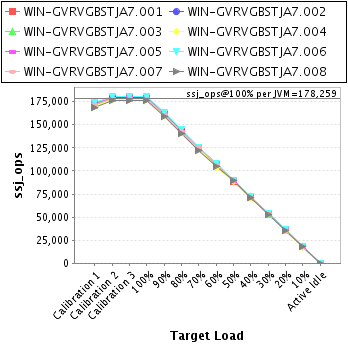

Graph of per-instance results
JVM 'WIN-GVRVGBSTJA7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,629
Calibration 2     178,588
Calibration 3     179,037
ssj_ops@calibrated=178,813
100% 99.7% 178,813 178,291
90% 90.2% 160,932 161,267
80% 79.9% 143,050 142,803
70% 70.2% 125,169 125,542
60% 60.2% 107,288 107,618
50% 49.2% 89,406 88,026
40% 39.6% 71,525 70,815
30% 29.9% 53,644 53,470
20% 19.8% 35,763 35,484
10% 9.9% 17,881 17,737
Active Idle   0 0

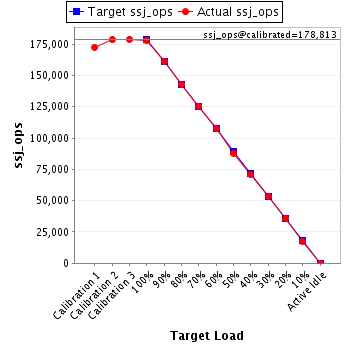

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GVRVGBSTJA7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,695
Calibration 2     179,435
Calibration 3     179,653
ssj_ops@calibrated=179,544
100% 99.7% 179,544 179,024
90% 90.3% 161,589 162,062
80% 80.0% 143,635 143,683
70% 70.0% 125,681 125,676
60% 59.6% 107,726 107,095
50% 49.9% 89,772 89,675
40% 39.8% 71,817 71,504
30% 30.2% 53,863 54,221
20% 20.1% 35,909 36,133
10% 9.9% 17,954 17,811
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GVRVGBSTJA7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,311
Calibration 2     177,898
Calibration 3     177,918
ssj_ops@calibrated=177,908
100% 100.0% 177,908 177,989
90% 90.3% 160,117 160,628
80% 79.4% 142,326 141,319
70% 70.0% 124,536 124,557
60% 60.4% 106,745 107,501
50% 50.4% 88,954 89,593
40% 40.4% 71,163 71,848
30% 29.7% 53,372 52,796
20% 19.9% 35,582 35,477
10% 10.1% 17,791 17,881
Active Idle   0 0

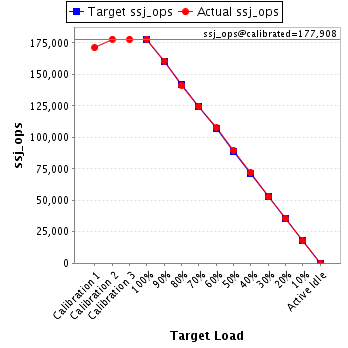

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GVRVGBSTJA7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,156
Calibration 2     177,157
Calibration 3     176,852
ssj_ops@calibrated=177,005
100% 100.3% 177,005 177,535
90% 90.1% 159,304 159,518
80% 79.7% 141,604 141,120
70% 70.7% 123,903 125,128
60% 58.7% 106,203 103,884
50% 50.0% 88,502 88,469
40% 39.4% 70,802 69,748
30% 30.2% 53,101 53,455
20% 19.8% 35,401 35,124
10% 9.8% 17,700 17,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GVRVGBSTJA7.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,434
Calibration 2     178,235
Calibration 3     178,815
ssj_ops@calibrated=178,525
100% 100.1% 178,525 178,693
90% 90.3% 160,673 161,177
80% 79.8% 142,820 142,536
70% 70.0% 124,968 125,013
60% 60.2% 107,115 107,430
50% 50.2% 89,263 89,554
40% 39.7% 71,410 70,932
30% 30.0% 53,558 53,584
20% 19.9% 35,705 35,493
10% 10.0% 17,853 17,767
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GVRVGBSTJA7.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,486
Calibration 2     180,234
Calibration 3     180,914
ssj_ops@calibrated=180,574
100% 99.8% 180,574 180,270
90% 90.3% 162,517 163,031
80% 80.1% 144,459 144,725
70% 69.7% 126,402 125,772
60% 59.7% 108,344 107,766
50% 49.7% 90,287 89,753
40% 40.1% 72,230 72,459
30% 29.9% 54,172 53,921
20% 20.1% 36,115 36,322
10% 10.1% 18,057 18,315
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GVRVGBSTJA7.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,471
Calibration 2     178,345
Calibration 3     178,178
ssj_ops@calibrated=178,261
100% 99.8% 178,261 177,967
90% 90.3% 160,435 160,993
80% 79.8% 142,609 142,312
70% 70.3% 124,783 125,289
60% 59.7% 106,957 106,466
50% 50.0% 89,131 89,176
40% 40.0% 71,304 71,371
30% 30.1% 53,478 53,660
20% 19.8% 35,652 35,219
10% 10.1% 17,826 17,998
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GVRVGBSTJA7.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,436
Calibration 2     176,249
Calibration 3     176,040
ssj_ops@calibrated=176,144
100% 100.1% 176,144 176,302
90% 90.3% 158,530 159,011
80% 79.7% 140,916 140,435
70% 69.4% 123,301 122,291
60% 59.7% 105,687 105,241
50% 50.7% 88,072 89,255
40% 40.2% 70,458 70,848
30% 29.8% 52,843 52,521
20% 20.1% 35,229 35,451
10% 10.2% 17,614 17,898
Active Idle   0 0

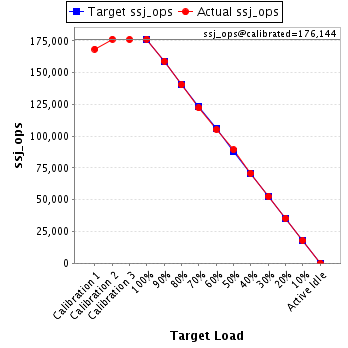

Graph of results
See the JVM Instance Performance Report for additional details.
