SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R380 F2 | SPECpower_ssj2008 = 5,227 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Jan 1, 2005 |
| Hardware Availability: | Apr-2013 | Software Availability: | Mar-2013 | Publication: | Jun 26, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

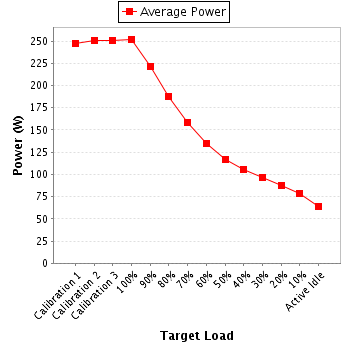

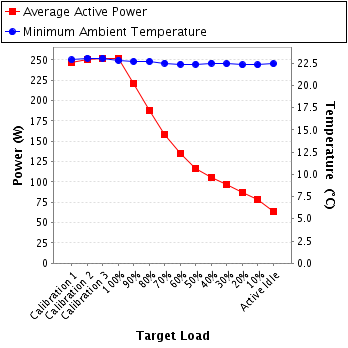

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 247 | 22.9 |
| Calibration 2 | 251 | 23.1 |
| Calibration 3 | 251 | 23.1 |
| 100% | 252 | 22.8 |
| 90% | 221 | 22.7 |
| 80% | 188 | 22.7 |
| 70% | 158 | 22.5 |
| 60% | 135 | 22.4 |
| 50% | 116 | 22.4 |
| 40% | 106 | 22.5 |
| 30% | 96.5 | 22.4 |
| 20% | 87.0 | 22.3 |
| 10% | 78.0 | 22.3 |
| Active Idle | 63.7 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 13-04-BAC-380-01 |
| Date of Calibration: | 9-May-2013 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.6.0-7f9b1b00-20130314 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 1.14 | 2.0 | 0.986 | 247 | 0.4% |
| Calibration 2 | 220 | 300.0 | 1.15 | 2.0 | 0.986 | 251 | 0.4% |
| Calibration 3 | 220 | 300.0 | 1.16 | 2.0 | 0.987 | 251 | 0.4% |
| 100% | 219 | 300.0 | 1.17 | 2.0 | 0.987 | 252 | 0.4% |
| 90% | 220 | 300.0 | 1.02 | 2.0 | 0.985 | 221 | 0.5% |
| 80% | 220 | 300.0 | 0.872 | 2.0 | 0.982 | 188 | 0.5% |
| 70% | 219 | 300.0 | 0.738 | 2.0 | 0.977 | 158 | 0.6% |
| 60% | 220 | 300.0 | 0.631 | 2.0 | 0.969 | 135 | 0.6% |
| 50% | 221 | 300.0 | 0.549 | 1.0 | 0.961 | 116 | 0.5% |
| 40% | 221 | 300.0 | 0.501 | 1.0 | 0.954 | 106 | 0.5% |
| 30% | 221 | 300.0 | 0.461 | 1.0 | 0.947 | 96.5 | 0.5% |
| 20% | 221 | 300.0 | 0.420 | 1.0 | 0.937 | 87.0 | 0.6% |
| 10% | 221 | 300.0 | 0.381 | 1.0 | 0.925 | 78.0 | 0.6% |
| Active Idle | 221 | 300.0 | 0.320 | 1.0 | 0.900 | 63.7 | 0.7% |
