Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,307,626
ssj_ops@100% per JVM = 163,453
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 5, 2013
Hardware Availability: Apr-2013 Software Availability: Jun-2012 Publication: Jun 26, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,204,733
Calibration 2     1,309,870
Calibration 3     1,311,512
ssj_ops@calibrated=1,310,691
100% 99.8% 1,310,691 1,307,626
90% 89.8% 1,179,622 1,177,499
80% 80.0% 1,048,553 1,048,299
70% 69.8% 917,484 915,005
60% 60.0% 786,415 786,345
50% 50.0% 655,346 655,925
40% 40.1% 524,276 525,126
30% 30.1% 393,207 395,108
20% 20.1% 262,138 263,057
10% 10.0% 131,069 131,290
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2650
CPU Characteristics: 8-Core, 2.0 GHz, 20 MB L3 Cache (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1,B1,C1,D1,E1,F1 populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: V059
Management Firmware Version: 3.02
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-Q7SMD4JKKVD.001 163,651
WIN-Q7SMD4JKKVD.002 163,320
WIN-Q7SMD4JKKVD.003 163,797
WIN-Q7SMD4JKKVD.004 164,499
WIN-Q7SMD4JKKVD.005 162,604
WIN-Q7SMD4JKKVD.006 163,147
WIN-Q7SMD4JKKVD.007 163,579
WIN-Q7SMD4JKKVD.008 163,028
ssj_ops@100% 1,307,626
ssj_ops@100% per JVM 163,453
Graph of per-instance results
JVM 'WIN-Q7SMD4JKKVD.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,330
Calibration 2     164,250
Calibration 3     164,356
ssj_ops@calibrated=164,303
100% 99.6% 164,303 163,651
90% 89.8% 147,873 147,590
80% 79.9% 131,442 131,251
70% 69.9% 115,012 114,897
60% 60.4% 98,582 99,183
50% 50.1% 82,152 82,308
40% 39.9% 65,721 65,485
30% 29.9% 49,291 49,099
20% 19.9% 32,861 32,697
10% 10.0% 16,430 16,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q7SMD4JKKVD.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,869
Calibration 2     163,059
Calibration 3     163,612
ssj_ops@calibrated=163,336
100% 100.0% 163,336 163,320
90% 89.8% 147,002 146,677
80% 80.2% 130,668 130,915
70% 70.0% 114,335 114,309
60% 59.6% 98,001 97,305
50% 49.8% 81,668 81,396
40% 40.2% 65,334 65,604
30% 30.2% 49,001 49,391
20% 20.1% 32,667 32,889
10% 10.1% 16,334 16,566
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q7SMD4JKKVD.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,540
Calibration 2     163,231
Calibration 3     164,126
ssj_ops@calibrated=163,678
100% 100.1% 163,678 163,797
90% 89.8% 147,310 147,022
80% 79.8% 130,943 130,548
70% 69.7% 114,575 114,017
60% 60.3% 98,207 98,726
50% 50.3% 81,839 82,268
40% 39.6% 65,471 64,833
30% 30.2% 49,103 49,415
20% 20.1% 32,736 32,945
10% 10.0% 16,368 16,380
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

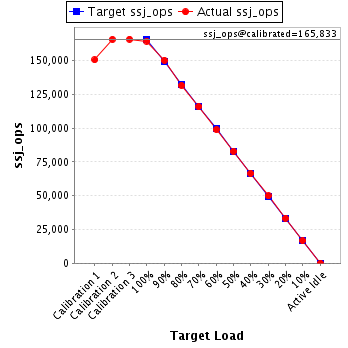

JVM 'WIN-Q7SMD4JKKVD.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,573
Calibration 2     165,744
Calibration 3     165,923
ssj_ops@calibrated=165,833
100% 99.2% 165,833 164,499
90% 90.6% 149,250 150,300
80% 79.3% 132,667 131,572
70% 69.9% 116,083 115,946
60% 59.7% 99,500 98,945
50% 50.1% 82,917 83,062
40% 40.1% 66,333 66,552
30% 30.0% 49,750 49,832
20% 20.2% 33,167 33,458
10% 10.1% 16,583 16,740
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q7SMD4JKKVD.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,015
Calibration 2     162,881
Calibration 3     163,296
ssj_ops@calibrated=163,088
100% 99.7% 163,088 162,604
90% 89.5% 146,780 145,885
80% 80.2% 130,471 130,725
70% 70.4% 114,162 114,817
60% 59.9% 97,853 97,618
50% 49.8% 81,544 81,229
40% 40.4% 65,235 65,953
30% 30.2% 48,927 49,250
20% 20.1% 32,618 32,808
10% 10.0% 16,309 16,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q7SMD4JKKVD.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,228
Calibration 2     163,065
Calibration 3     162,665
ssj_ops@calibrated=162,865
100% 100.2% 162,865 163,147
90% 90.2% 146,578 146,943
80% 80.5% 130,292 131,109
70% 69.7% 114,005 113,506
60% 60.1% 97,719 97,958
50% 50.5% 81,432 82,236
40% 40.3% 65,146 65,610
30% 30.1% 48,859 49,021
20% 20.0% 32,573 32,611
10% 9.9% 16,286 16,184
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

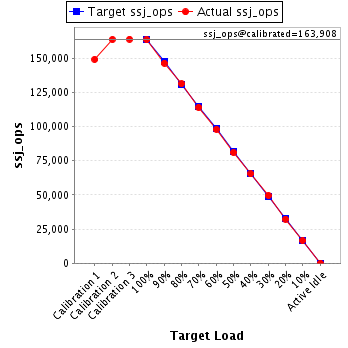

JVM 'WIN-Q7SMD4JKKVD.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,249
Calibration 2     163,798
Calibration 3     164,019
ssj_ops@calibrated=163,908
100% 99.8% 163,908 163,579
90% 89.4% 147,518 146,505
80% 80.1% 131,127 131,310
70% 69.6% 114,736 114,123
60% 59.8% 98,345 98,075
50% 49.4% 81,954 81,045
40% 39.9% 65,563 65,360
30% 30.2% 49,173 49,558
20% 19.7% 32,782 32,370
10% 10.1% 16,391 16,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

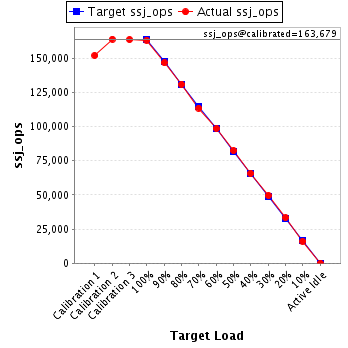

JVM 'WIN-Q7SMD4JKKVD.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,928
Calibration 2     163,841
Calibration 3     163,517
ssj_ops@calibrated=163,679
100% 99.6% 163,679 163,028
90% 89.6% 147,311 146,578
80% 80.0% 130,943 130,870
70% 69.3% 114,575 113,390
60% 60.2% 98,208 98,536
50% 50.3% 81,840 82,381
40% 40.2% 65,472 65,729
30% 30.3% 49,104 49,544
20% 20.3% 32,736 33,278
10% 9.8% 16,368 16,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
