Acer Incorporated Acer AR580 F2 ssj_ops@100% = 1,646,236
ssj_ops@100% per JVM = 137,186
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 24, 2013
Hardware Availability: May-2013 Software Availability: Mar-2013 Publication: Jun 26, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,563,416
Calibration 2     1,646,431
Calibration 3     1,646,922
ssj_ops@calibrated=1,646,676
100% 100.0% 1,646,676 1,646,236
90% 90.1% 1,482,009 1,482,976
80% 79.9% 1,317,341 1,315,385
70% 70.1% 1,152,673 1,154,497
60% 59.9% 988,006 986,651
50% 50.2% 823,338 825,852
40% 39.9% 658,670 656,365
30% 30.0% 494,003 494,715
20% 19.9% 329,335 328,332
10% 10.0% 164,668 164,806
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR580 F2
Form Factor: 2U
CPU Name: Intel Xeon E5-4607 2.2 GHz
CPU Characteristics: 6 core, 2.2 GHz, 12MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 4 chips, 6 cores/chip
Hardware Threads: 48 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8GB 2Rx4 PC3-10600R; slots A1, B1, E1, F1, J1, K1, N1, P1 are populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Acer P/N SC.16M17.002
Disk Drive: 1 x 100GB SSD 2.5" SATA, Acer P/N KN.10004.002
Disk Controller: onboard SAS controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel X540-T2 10 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: No
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000]
JVM Instances: 12
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 01.07.0001
Management Firmware Version: 01.15.4159
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
AR580F2.001 135,800
AR580F2.002 135,031
AR580F2.003 136,493
AR580F2.004 139,840
AR580F2.005 137,735
AR580F2.006 136,906
AR580F2.007 136,971
AR580F2.008 135,728
AR580F2.009 139,662
AR580F2.010 138,669
AR580F2.011 137,042
AR580F2.012 136,357
ssj_ops@100% 1,646,236
ssj_ops@100% per JVM 137,186

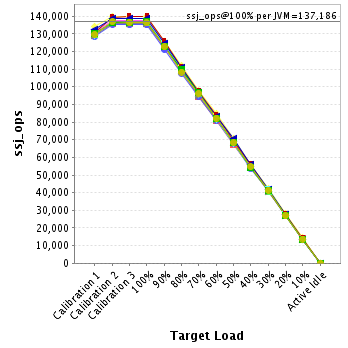

Graph of per-instance results
JVM 'AR580F2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,300
Calibration 2     135,895
Calibration 3     135,786
ssj_ops@calibrated=135,840
100% 100.0% 135,840 135,800
90% 90.2% 122,256 122,491
80% 80.5% 108,672 109,322
70% 69.7% 95,088 94,713
60% 59.5% 81,504 80,871
50% 49.7% 67,920 67,532
40% 39.9% 54,336 54,151
30% 29.9% 40,752 40,633
20% 20.4% 27,168 27,658
10% 10.3% 13,584 14,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,421
Calibration 2     135,376
Calibration 3     135,050
ssj_ops@calibrated=135,213
100% 99.9% 135,213 135,031
90% 89.6% 121,692 121,176
80% 79.7% 108,170 107,761
70% 69.8% 94,649 94,445
60% 59.8% 81,128 80,803
50% 50.3% 67,606 68,041
40% 39.8% 54,085 53,760
30% 30.5% 40,564 41,232
20% 20.0% 27,043 27,004
10% 10.0% 13,521 13,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,668
Calibration 2     136,541
Calibration 3     136,548
ssj_ops@calibrated=136,544
100% 100.0% 136,544 136,493
90% 90.3% 122,890 123,305
80% 80.0% 109,235 109,201
70% 70.3% 95,581 95,982
60% 59.9% 81,926 81,845
50% 50.1% 68,272 68,379
40% 39.6% 54,618 54,124
30% 29.6% 40,963 40,445
20% 19.8% 27,309 27,026
10% 10.0% 13,654 13,597
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,033
Calibration 2     139,919
Calibration 3     139,800
ssj_ops@calibrated=139,859
100% 100.0% 139,859 139,840
90% 89.8% 125,873 125,534
80% 79.9% 111,887 111,787
70% 69.9% 97,901 97,722
60% 60.5% 83,915 84,649
50% 50.5% 69,930 70,661
40% 39.9% 55,944 55,832
30% 30.1% 41,958 42,120
20% 20.1% 27,972 28,119
10% 10.3% 13,986 14,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,583
Calibration 2     137,668
Calibration 3     137,565
ssj_ops@calibrated=137,617
100% 100.1% 137,617 137,735
90% 89.6% 123,855 123,306
80% 79.7% 110,093 109,679
70% 70.8% 96,332 97,372
60% 59.3% 82,570 81,640
50% 50.2% 68,808 69,080
40% 39.8% 55,047 54,731
30% 29.7% 41,285 40,913
20% 19.6% 27,523 26,908
10% 10.0% 13,762 13,726
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,823
Calibration 2     136,979
Calibration 3     136,952
ssj_ops@calibrated=136,965
100% 100.0% 136,965 136,906
90% 90.9% 123,269 124,508
80% 79.6% 109,572 108,998
70% 69.8% 95,876 95,625
60% 59.6% 82,179 81,659
50% 49.5% 68,483 67,838
40% 39.8% 54,786 54,470
30% 30.4% 41,090 41,666
20% 20.1% 27,393 27,522
10% 10.0% 13,697 13,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,844
Calibration 2     136,636
Calibration 3     137,276
ssj_ops@calibrated=136,956
100% 100.0% 136,956 136,971
90% 90.0% 123,261 123,311
80% 79.7% 109,565 109,185
70% 70.0% 95,869 95,869
60% 60.3% 82,174 82,627
50% 49.9% 68,478 68,400
40% 39.8% 54,782 54,447
30% 30.2% 41,087 41,384
20% 20.0% 27,391 27,369
10% 9.8% 13,696 13,390
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,110
Calibration 2     135,882
Calibration 3     136,046
ssj_ops@calibrated=135,964
100% 99.8% 135,964 135,728
90% 90.4% 122,368 122,855
80% 80.4% 108,771 109,252
70% 70.0% 95,175 95,177
60% 59.9% 81,578 81,442
50% 50.6% 67,982 68,748
40% 40.1% 54,386 54,579
30% 29.8% 40,789 40,543
20% 20.0% 27,193 27,237
10% 10.0% 13,596 13,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,503
Calibration 2     139,511
Calibration 3     139,659
ssj_ops@calibrated=139,585
100% 100.1% 139,585 139,662
90% 90.2% 125,626 125,893
80% 79.5% 111,668 110,944
70% 69.9% 97,709 97,524
60% 60.0% 83,751 83,752
50% 50.0% 69,792 69,782
40% 40.0% 55,834 55,781
30% 29.6% 41,875 41,340
20% 19.9% 27,917 27,771
10% 10.0% 13,958 13,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,488
Calibration 2     138,778
Calibration 3     138,950
ssj_ops@calibrated=138,864
100% 99.9% 138,864 138,669
90% 89.8% 124,977 124,758
80% 80.1% 111,091 111,162
70% 69.8% 97,205 96,957
60% 60.0% 83,318 83,331
50% 50.9% 69,432 70,639
40% 40.2% 55,545 55,765
30% 30.0% 41,659 41,626
20% 20.1% 27,773 27,896
10% 9.8% 13,886 13,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,953
Calibration 2     136,495
Calibration 3     136,692
ssj_ops@calibrated=136,593
100% 100.3% 136,593 137,042
90% 90.1% 122,934 123,070
80% 80.3% 109,274 109,726
70% 70.9% 95,615 96,839
60% 59.9% 81,956 81,830
50% 50.1% 68,297 68,499
40% 39.5% 54,637 53,994
30% 30.3% 40,978 41,433
20% 19.6% 27,319 26,807
10% 10.0% 13,659 13,647
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     129,689
Calibration 2     136,753
Calibration 3     136,599
ssj_ops@calibrated=136,676
100% 99.8% 136,676 136,357
90% 89.8% 123,008 122,768
80% 79.3% 109,341 108,368
70% 70.4% 95,673 96,272
60% 60.1% 82,006 82,201
50% 49.9% 68,338 68,253
40% 40.0% 54,670 54,730
30% 30.3% 41,003 41,380
20% 19.8% 27,335 27,016
10% 10.0% 13,668 13,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
