SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR580 F2 | SPECpower_ssj2008 = 3,659 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | May 24, 2013 |
| Hardware Availability: | May-2013 | Software Availability: | Mar-2013 | Publication: | Jun 26, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

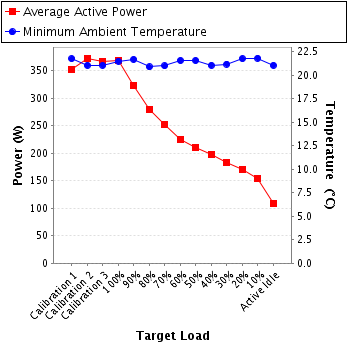

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 353 | 21.8 |
| Calibration 2 | 373 | 21.1 |
| Calibration 3 | 367 | 21.1 |
| 100% | 368 | 21.5 |
| 90% | 324 | 21.7 |
| 80% | 280 | 20.9 |
| 70% | 252 | 21.0 |
| 60% | 226 | 21.6 |
| 50% | 211 | 21.6 |
| 40% | 197 | 21.1 |
| 30% | 184 | 21.2 |
| 20% | 170 | 21.8 |
| 10% | 155 | 21.8 |
| Active Idle | 109 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 13-04-BAC-380-01 |
| Date of Calibration: | 9-May-2013 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.6.0-7f9b1b00-20130314 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |

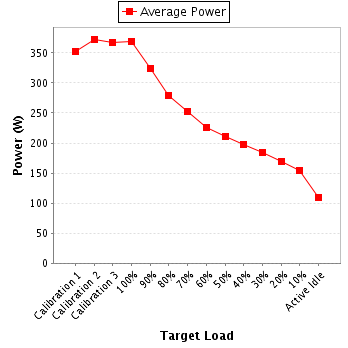

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 1.64 | 5.0 | 0.984 | 353 | 0.6% |
| Calibration 2 | 218 | 300.0 | 1.73 | 5.0 | 0.986 | 373 | 0.6% |
| Calibration 3 | 218 | 300.0 | 1.71 | 5.0 | 0.985 | 367 | 0.6% |
| 100% | 219 | 300.0 | 1.71 | 5.0 | 0.985 | 368 | 0.6% |
| 90% | 219 | 300.0 | 1.51 | 5.0 | 0.980 | 324 | 0.7% |
| 80% | 219 | 300.0 | 1.31 | 5.0 | 0.973 | 280 | 0.7% |
| 70% | 220 | 300.0 | 1.18 | 5.0 | 0.969 | 252 | 0.8% |
| 60% | 219 | 300.0 | 1.07 | 5.0 | 0.965 | 226 | 0.9% |
| 50% | 219 | 300.0 | 1.00 | 5.0 | 0.960 | 211 | 0.9% |
| 40% | 220 | 300.0 | 0.941 | 5.0 | 0.954 | 197 | 1.0% |
| 30% | 220 | 300.0 | 0.881 | 2.0 | 0.948 | 184 | 0.5% |
| 20% | 222 | 300.0 | 0.813 | 2.0 | 0.941 | 170 | 0.6% |
| 10% | 222 | 300.0 | 0.747 | 1.0 | 0.933 | 155 | 0.4% |
| Active Idle | 222 | 300.0 | 0.550 | 1.0 | 0.889 | 109 | 0.5% |
