SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R380 F2 | SPECpower_ssj2008 = 4,036 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Apr 3, 2013 |
| Hardware Availability: | May-2013 | Software Availability: | Oct-2012 | Publication: | May 8, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

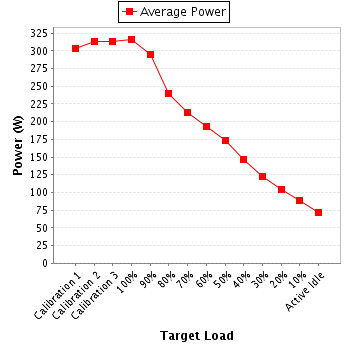

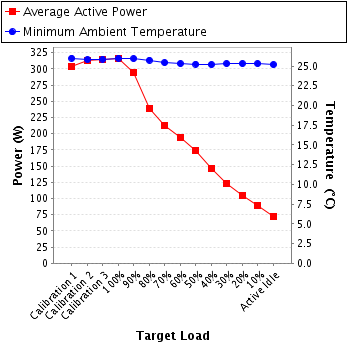

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 304 | 26.0 |
| Calibration 2 | 313 | 25.8 |
| Calibration 3 | 314 | 25.9 |
| 100% | 316 | 26.0 |
| 90% | 295 | 25.9 |
| 80% | 239 | 25.8 |
| 70% | 213 | 25.4 |
| 60% | 193 | 25.3 |
| 50% | 174 | 25.2 |
| 40% | 146 | 25.2 |
| 30% | 122 | 25.3 |
| 20% | 104 | 25.3 |
| 10% | 89.0 | 25.3 |
| Active Idle | 71.5 | 25.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 12-05-BAC-113-01 |
| Date of Calibration: | 10-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 218 | 300.0 | 1.43 | 5.0 | 0.980 | 304 | 0.7% |
| Calibration 2 | 218 | 300.0 | 1.46 | 5.0 | 0.982 | 313 | 0.7% |
| Calibration 3 | 218 | 300.0 | 1.47 | 5.0 | 0.982 | 314 | 0.7% |
| 100% | 218 | 300.0 | 1.48 | 5.0 | 0.982 | 316 | 0.7% |
| 90% | 218 | 300.0 | 1.38 | 5.0 | 0.979 | 295 | 0.7% |
| 80% | 218 | 300.0 | 1.13 | 5.0 | 0.970 | 239 | 0.8% |
| 70% | 218 | 300.0 | 1.01 | 5.0 | 0.968 | 213 | 0.9% |
| 60% | 219 | 300.0 | 0.917 | 2.0 | 0.965 | 193 | 0.5% |
| 50% | 218 | 300.0 | 0.828 | 2.0 | 0.961 | 174 | 0.6% |
| 40% | 218 | 300.0 | 0.705 | 2.0 | 0.953 | 146 | 0.6% |
| 30% | 217 | 300.0 | 0.599 | 1.0 | 0.943 | 122 | 0.5% |
| 20% | 217 | 300.0 | 0.519 | 1.0 | 0.926 | 104 | 0.5% |
| 10% | 216 | 300.0 | 0.456 | 1.0 | 0.902 | 89.0 | 0.6% |
| Active Idle | 216 | 300.0 | 0.381 | 1.0 | 0.868 | 71.5 | 0.7% |
