Dell Inc. PowerEdge C5220 (Intel Xeon E3-1265LV2) ssj_ops@100% = 435,721
ssj_ops@100% per JVM = 108,930
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 15, 2013
Hardware Availability: Jan-2013 Software Availability: Jun-2012 Publication: Apr 19, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     424,103
Calibration 2     437,747
Calibration 3     439,527
ssj_ops@calibrated=438,637
100% 99.3% 438,637 435,721
90% 90.0% 394,773 394,985
80% 79.7% 350,909 349,656
70% 69.7% 307,046 305,566
60% 60.3% 263,182 264,600
50% 49.7% 219,318 218,204
40% 40.1% 175,455 175,933
30% 30.0% 131,591 131,399
20% 20.0% 87,727 87,675
10% 10.0% 43,864 43,738
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 12
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C5220 (Intel Xeon E3-1265LV2)
Form Factor: Blade
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PCL3-12800E ECC CL11; slots 1,3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 100GB SSD, 2.5" SATA, Dell P/N DYW42
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82580 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (see SUT Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1228m -Xmx1228m -Xmn1024m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xthr:minimizeusercpu -Xgcthreads2
JVM Affinity: start /affinity [3,C,30,C0]
JVM Instances: 4
JVM Initial Heap (MB): 1228
JVM Maximum Heap (MB): 1228
JVM Address Bits: 64
Boot Firmware Version: 2.0.5
Management Firmware Version: 1.15
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
C5220-05.001 109,394
C5220-05.002 108,874
C5220-05.003 107,638
C5220-05.004 109,816
ssj_ops@100% 435,721
ssj_ops@100% per JVM 108,930

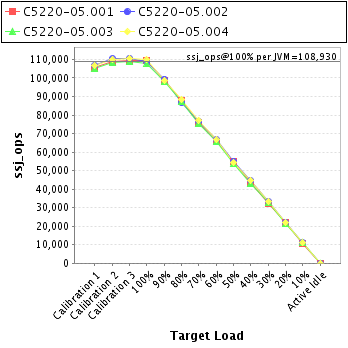

Graph of per-instance results
JVM 'C5220-05.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,681
Calibration 2     109,145
Calibration 3     109,336
ssj_ops@calibrated=109,240
100% 100.1% 109,240 109,394
90% 90.2% 98,316 98,519
80% 80.2% 87,392 87,624
70% 69.6% 76,468 76,057
60% 60.0% 65,544 65,576
50% 50.1% 54,620 54,702
40% 39.8% 43,696 43,483
30% 29.4% 32,772 32,071
20% 20.1% 21,848 21,963
10% 9.8% 10,924 10,651
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-05.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,796
Calibration 2     110,282
Calibration 3     110,692
ssj_ops@calibrated=110,487
100% 98.5% 110,487 108,874
90% 90.0% 99,438 99,414
80% 78.5% 88,390 86,680
70% 69.4% 77,341 76,698
60% 60.3% 66,292 66,642
50% 49.9% 55,243 55,143
40% 40.2% 44,195 44,446
30% 30.2% 33,146 33,326
20% 20.1% 22,097 22,235
10% 10.1% 11,049 11,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-05.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,963
Calibration 2     108,419
Calibration 3     108,972
ssj_ops@calibrated=108,696
100% 99.0% 108,696 107,638
90% 90.5% 97,826 98,330
80% 80.1% 86,957 87,119
70% 69.5% 76,087 75,567
60% 60.5% 65,217 65,812
50% 49.6% 54,348 53,944
40% 39.8% 43,478 43,274
30% 30.0% 32,609 32,572
20% 19.8% 21,739 21,475
10% 10.1% 10,870 11,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-05.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,663
Calibration 2     109,900
Calibration 3     110,527
ssj_ops@calibrated=110,214
100% 99.6% 110,214 109,816
90% 89.6% 99,192 98,722
80% 80.1% 88,171 88,233
70% 70.1% 77,150 77,244
60% 60.4% 66,128 66,569
50% 49.4% 55,107 54,415
40% 40.6% 44,085 44,729
30% 30.3% 33,064 33,431
20% 20.0% 22,043 22,003
10% 9.9% 11,021 10,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
