SPECpower_ssj2008
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/SS10 (DL2) | SPECpower_ssj2008 = 3,963 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Mar 5, 2013 |
| Hardware Availability: | Nov-2012 | Software Availability: | Jun-2012 | Publication: | Mar 20, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

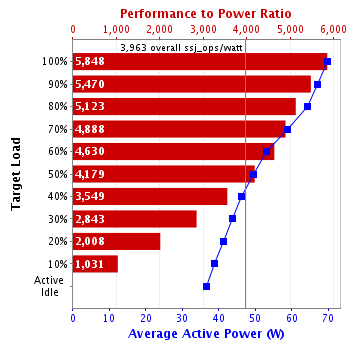

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 407,490 | 69.7 | 5,848 |
| 90% | 89.6% | 366,656 | 67.0 | 5,470 |
| 80% | 80.3% | 328,687 | 64.2 | 5,123 |
| 70% | 70.2% | 287,602 | 58.8 | 4,888 |
| 60% | 60.0% | 245,648 | 53.1 | 4,630 |
| 50% | 50.4% | 206,433 | 49.4 | 4,179 |
| 40% | 40.1% | 164,312 | 46.3 | 3,549 |
| 30% | 30.3% | 124,130 | 43.7 | 2,843 |
| 20% | 20.2% | 82,640 | 41.2 | 2,008 |
| 10% | 9.8% | 39,991 | 38.8 | 1,031 |
| Active Idle | 0 | 36.6 | 0 | |
| ∑ssj_ops / ∑power = | 3,963 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/SS10 (DL2) |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon E3-1220v2 (Intel Turbo Boost Technology up to 3.50 GHz) |
| CPU Characteristics: | Quad Core, 3.10GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3100 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 GB |
| Memory Details: | 4GB 2Rx8 PC3L-12800E ECC CL11; slots DIMM_#2 and DIMM_#4 populated |
| Power Supply Quantity and Rating (W): | 1 x 250 |
| Power Supply Details: | Lead Year TG10-0250-01 |
| Disk Drive: | 1 x 500GB SATA (Hitachi P/N:GQ-UH75006S) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-Port Broadcom BCM5718 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Power saver) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1950m -Xmx1950m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [3,C] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1950 |
| JVM Maximum Heap (MB): | 1950 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | LU.1.00.01 |
| Management Firmware Version: | 06.33 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110 (AH) |
| CPU Description: | Intel core i3 540 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise 32-bit SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_30-b12) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | S2012-06-50931 |
| Date of Calibration: | 12-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 40 mm in front of SUT main airflow intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 69.7 | 23.2 |
| 90% | 67.0 | 23.2 |
| 80% | 64.2 | 23.3 |
| 70% | 58.8 | 23.3 |
| 60% | 53.1 | 23.4 |
| 50% | 49.4 | 23.3 |
| 40% | 46.3 | 23.4 |
| 30% | 43.7 | 23.4 |
| 20% | 41.2 | 23.4 |
| 10% | 38.8 | 23.4 |
| Active Idle | 36.6 | 23.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 100V / 50 Hz / 1 phase / 2 wires | 23.2 | 105 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 403,511 | ||
| Calibration 2 | 409,357 | ||
| Calibration 3 | 409,500 | ||
| ssj_ops@calibrated=409,429 | |||
| 100% | 99.5% | 409,429 | 407,490 |
| 90% | 89.6% | 368,486 | 366,656 |
| 80% | 80.3% | 327,543 | 328,687 |
| 70% | 70.2% | 286,600 | 287,602 |
| 60% | 60.0% | 245,657 | 245,648 |
| 50% | 50.4% | 204,714 | 206,433 |
| 40% | 40.1% | 163,772 | 164,312 |
| 30% | 30.3% | 122,829 | 124,130 |
| 20% | 20.2% | 81,886 | 82,640 |
| 10% | 9.8% | 40,943 | 39,991 |
| Active Idle | 0 | 0 | |
